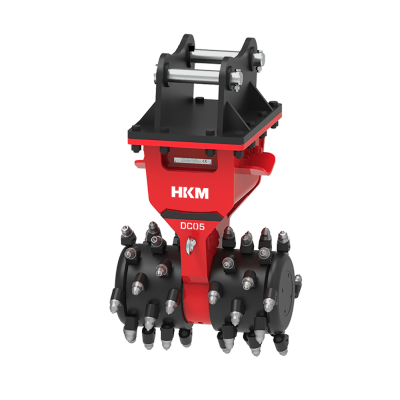

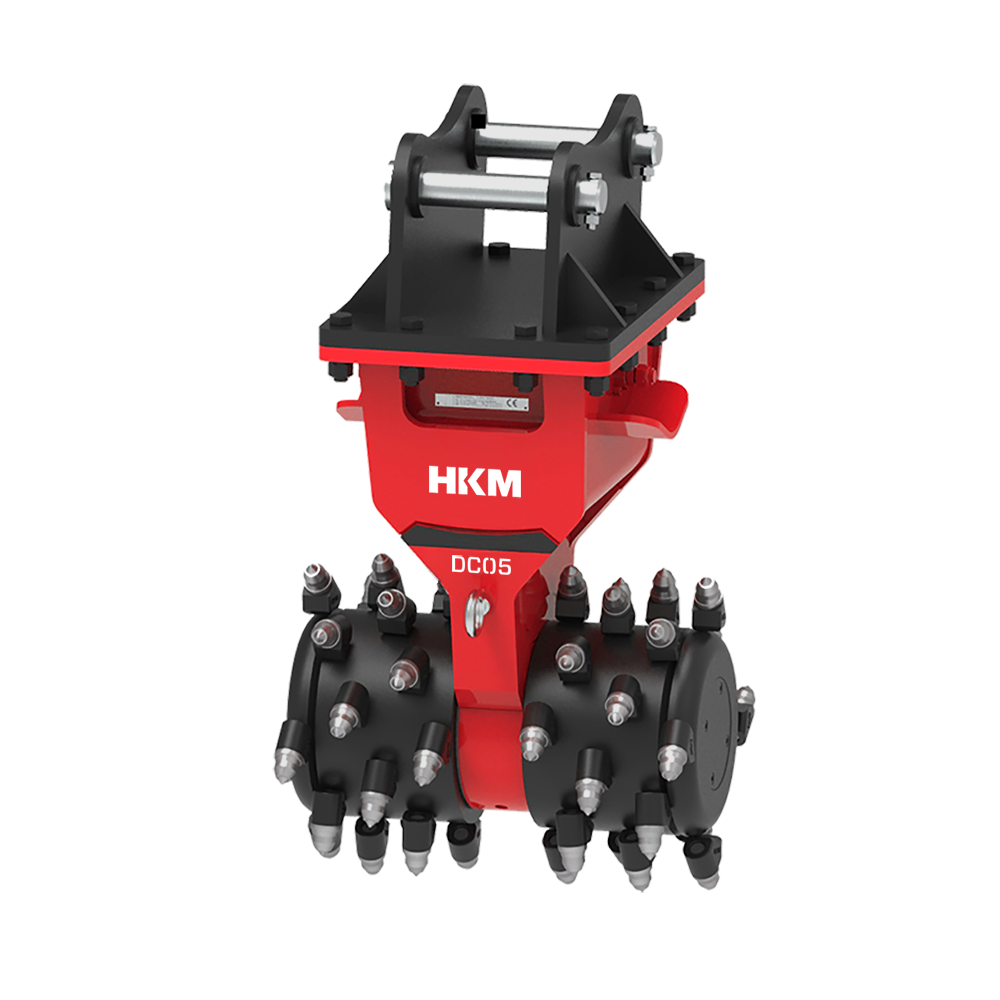

HKM DC05 Drum Cutter

HKM DRUM CUTTERS – DC05

HKM DC05 Drum Cutter is a compact and powerful cutting attachment designed for carriers in the 5–7 ton class. Its low-vibration design enables precise cutting and excavation in confined spaces, while the high-torque drive and optimized pick arrangement provide efficient performance in concrete, soft rock and similar materials.

With an operating weight of 490 kg and a required power of 22 kW, DC05 offers an efficient solution for on-site material processing. Equipped with 48 picks and 3,780 Nm output torque, it performs effectively across applications ranging from light infrastructure work to curb profiling.

Its compact body and low-noise operation make DC05 an ideal choice for urban projects, landscaping and precision profiling applications where controlled cutting and reduced disturbance are required.

A 440 mm drum diameter, 255 mm single drum width and 600 mm cutting width provide a balanced working envelope for trenching, surface preparation and precision profiling. These dimensions combine controlled material removal with practical surface coverage on compact carriers, supporting productivity in utility and curb work.

KEY FEATURES

• Fast and efficient cutting with a high-torque motor
• Comfortable operation with low vibration and noise
• Precise drum control and compact body for tight spaces
• Maintenance-free design with no need for grease or nitrogen
• Produces fine, homogeneous material suitable for backfill

APPLICATION AREAS

• Infrastructure and utility trenching
• Curb profiling and landscaping
• Surface preparation and light demolition
• Roadside excavation and foundation shaping

OPTIONAL FEATURES

• Underwater Kit: Insulated electrical/hydraulic connections with corrosion-resistant components
• High Abrasion Protection Kit: Hardox™/AR400 wear liners and zirconium-coated picks
• Extended Reach Module: +500 mm extension tube for maximum reach in deep trenches

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Which excavators is the HKM DC05 Drum Cutter compatible with?
A: The DC05 is designed for excavators and suitable hydraulic carriers in the 5–7 ton operating class. Final compatibility should also be verified against the carrier’s hydraulic flow, operating pressure and mounting dimensions.

Q: What hydraulic flow and operating pressure are required for the DC05?
A: The DC05 operates with an oil-flow range of 40–60 l/min and a maximum operating pressure of 315 bar. Required power is 22 kW. For optimum performance, the carrier’s hydraulic specifications should fall within these operating requirements.

Q: What are the single drum width and cutting width of the DC05?
A: The DC05 has a single drum width of 255 mm and a total cutting width of 600 mm. These dimensions are important when selecting the right model for the available working width and required surface profile.

Q: What applications can the HKM DC05 Drum Cutter be used for?
A: The DC05 can be used for infrastructure and utility trenching, curb profiling, landscaping, surface preparation, light demolition, roadside excavation and foundation shaping. It provides controlled, low-vibration cutting and excavation; final suitability should be assessed according to material properties and site conditions.
