HKM DC20 Drum CutterHKM DC20 Drum Cutter - 2
Brand:HKMModel:DC20HKM code:70292004100

HKM DC20 Drum Cutter

HKM DC20 Drum Cutter delivers high torque and a wide hydraulic operating range for tunneling, wide trenching, thick concrete and heavy excavation applications.

Compatible Carrier: 15–20 ton
Single Drum Width: 380 mm
Cutting Width: 910 mm

  • 15,000 Nm torque for demanding heavy-duty applications
  • Efficient and homogeneous cutting with 64 picks
  • Wide oil-flow range for compatibility with high-flow hydraulic systems
  • Durable gearbox assembly for long service life

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

HKM DRUM CUTTERS – DC20

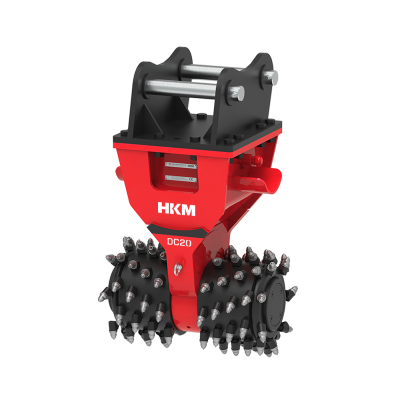

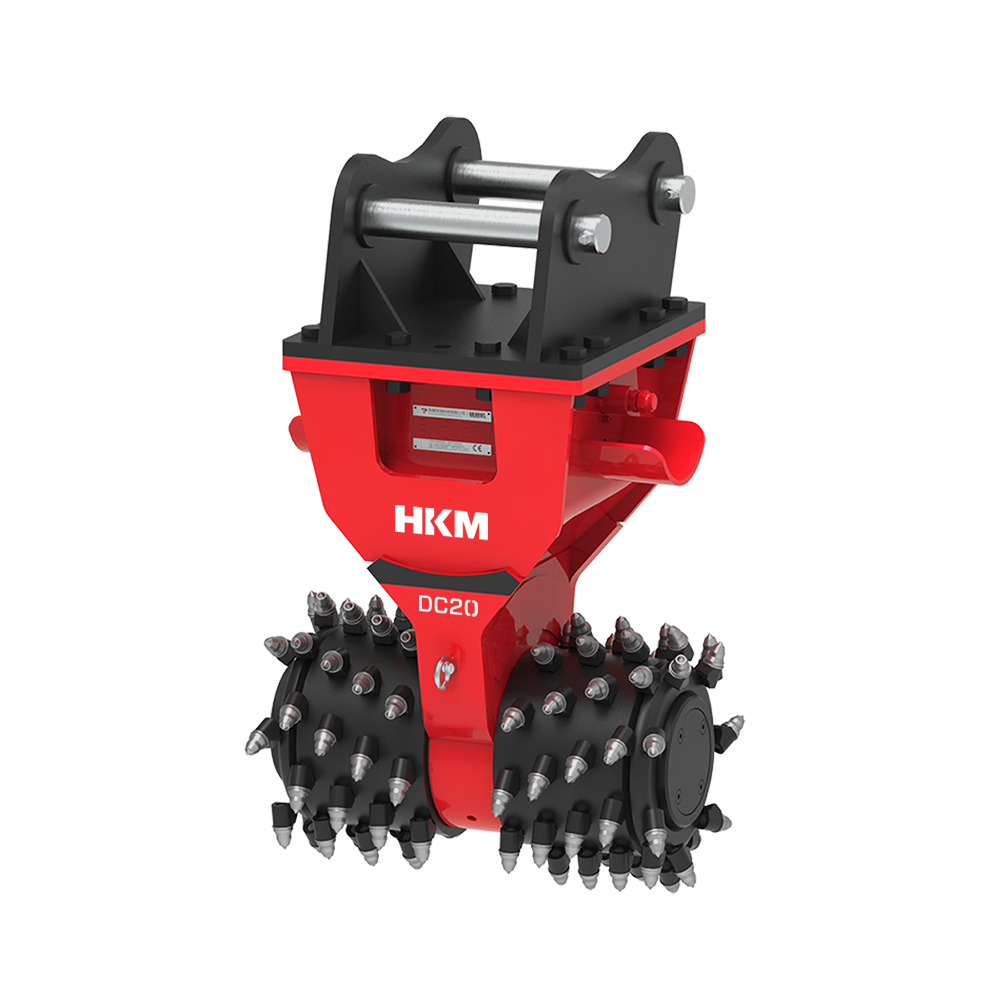

HKM DC20 Drum Cutter is a professional drum cutting attachment for 15–20 ton excavators, designed to deliver high torque and consistent power transfer in demanding applications. With an operating weight of 1,370 kg and torque of up to 15,000 Nm, it provides strong productivity in heavy-duty excavation and profiling work.

DC20 operates across a broad 140–220 l/min oil-flow range and requires 80 kW of power, making it a robust, reliable and low-vibration solution for major infrastructure and tunneling projects. Its 64 picks provide consistent fragmentation even on abrasive surfaces and support the production of reusable backfill material.

With its wide drum arrangement and durable gearbox, DC20 can perform powerful yet controlled excavation in mines, tunnels and thick concrete surfaces where high cutting force and precision are both required.

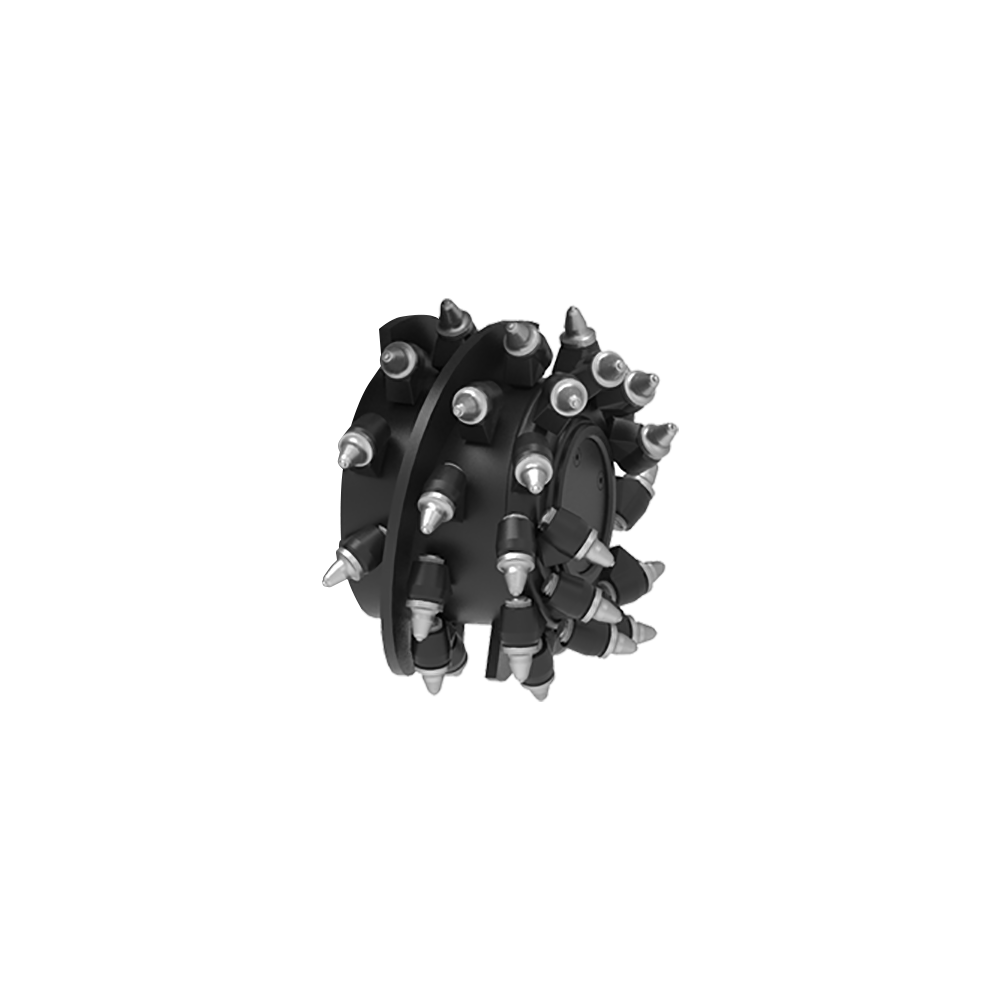

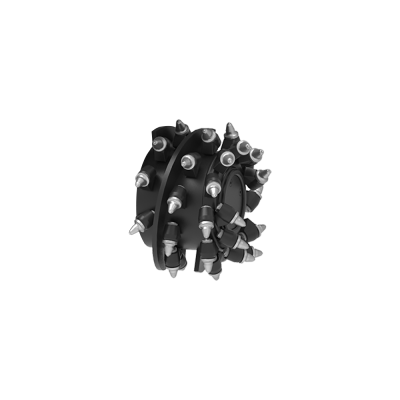

A 570 mm drum diameter, 380 mm single drum width and 910 mm cutting width provide broad surface coverage for tunneling, wide trenching and heavy excavation. The drum dimensions allow a wider working path to be processed in hard and abrasive ground, supporting higher productivity in infrastructure and mining applications.


KEY FEATURES

  • 15,000 Nm torque for demanding heavy-duty applications
  • Efficient and homogeneous cutting with 64 picks
  • Wide oil-flow range for compatibility with high-flow hydraulic systems
  • Durable gearbox assembly for long service life
  • Low noise and vibration for improved operator comfort


APPLICATION AREAS

  • Tunneling and wide trench excavation
  • Thick concrete and frozen-ground excavation
  • Mine-site preparation
  • Infrastructure and road construction projects


OPTIONAL FEATURES

  • Underwater Kit: Insulated system with high corrosion resistance
  • High Abrasion Protection Kit: Hardox™ wear protection with a filtered system
  • Extended Reach Module: +500 mm extension tube with angled power-transmission support


TECHNICAL SPECIFICATIONS

Carrier Weight (ton)15–20
Operating Weight (kg)1370
Max Operating Pressure (bar)315
Oil Flow (l/min)140–220
Required Power (kW)80
Max Torque @320 Bar (Nm)15000
Rotation Speed @40 l/min (rpm)78
Output Torque @320 Bar (Nm)14170
Number of Picks64
Drum Diameter (mm)570
Single Drum Width (mm)380
Cutting Width (mm)910



Frequently Asked Questions (FAQ)

Q: Which excavators is the HKM DC20 Drum Cutter compatible with?
A: The DC20 is designed for excavators and suitable hydraulic carriers in the 15–20 ton operating class. Final compatibility should also be verified against the carrier’s hydraulic flow, operating pressure and mounting dimensions.

Q: What hydraulic flow and operating pressure are required for the DC20?
A: The DC20 operates with an oil-flow range of 140–220 l/min and a maximum operating pressure of 315 bar. Required power is 80 kW. For optimum performance, the carrier’s hydraulic specifications should fall within these operating requirements.

Q: What are the single drum width and cutting width of the DC20?
A: The DC20 has a single drum width of 380 mm and a total cutting width of 910 mm. These dimensions are important when selecting the right model for the available working width and required surface profile.

Q: What applications can the HKM DC20 Drum Cutter be used for?
A: The DC20 can be used for tunneling, wide trench excavation, thick concrete and frozen-ground excavation, mine-site preparation, infrastructure and road construction. It provides controlled, low-vibration cutting and excavation; final suitability should be assessed according to material properties and site conditions.

🤔 Not Sure Which Drum Cutter to Choose?

Send us your excavator make/model and working conditions to identify the most suitable drum cutter for your application. Our sales team can help you select the right model based on carrier weight, hydraulic flow and application requirements.
