HKM DC40 Drum Cutter

HKM DRUM CUTTERS – DC40

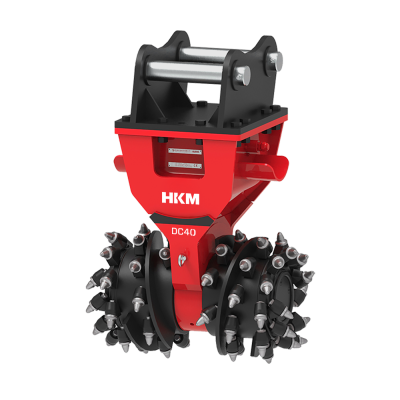

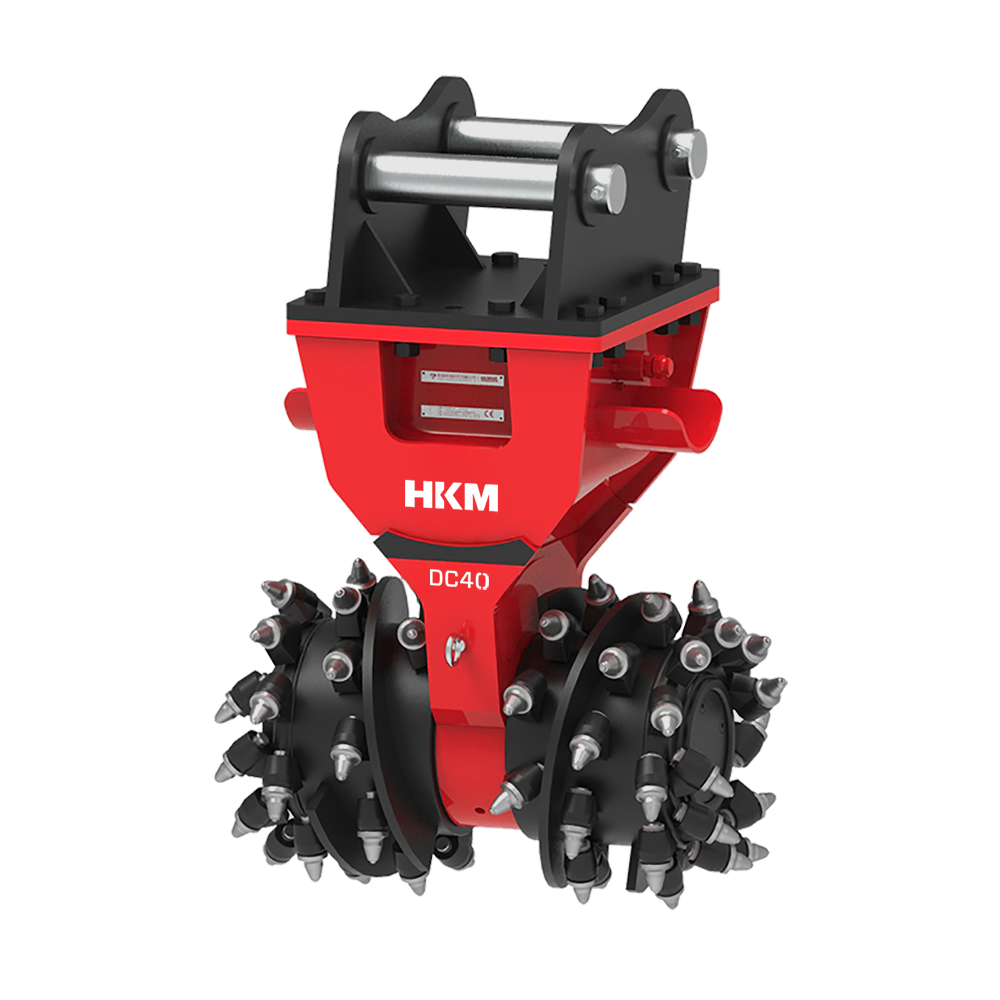

HKM DC40 Drum Cutter is the largest and most powerful model in the range, developed specifically for 30–50 ton excavators. With an operating weight of 2,250 kg and maximum torque of up to 30,000 Nm, it delivers high productivity in hard rock, reinforced concrete and mining applications.

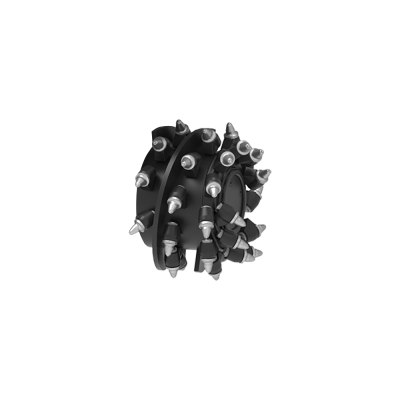

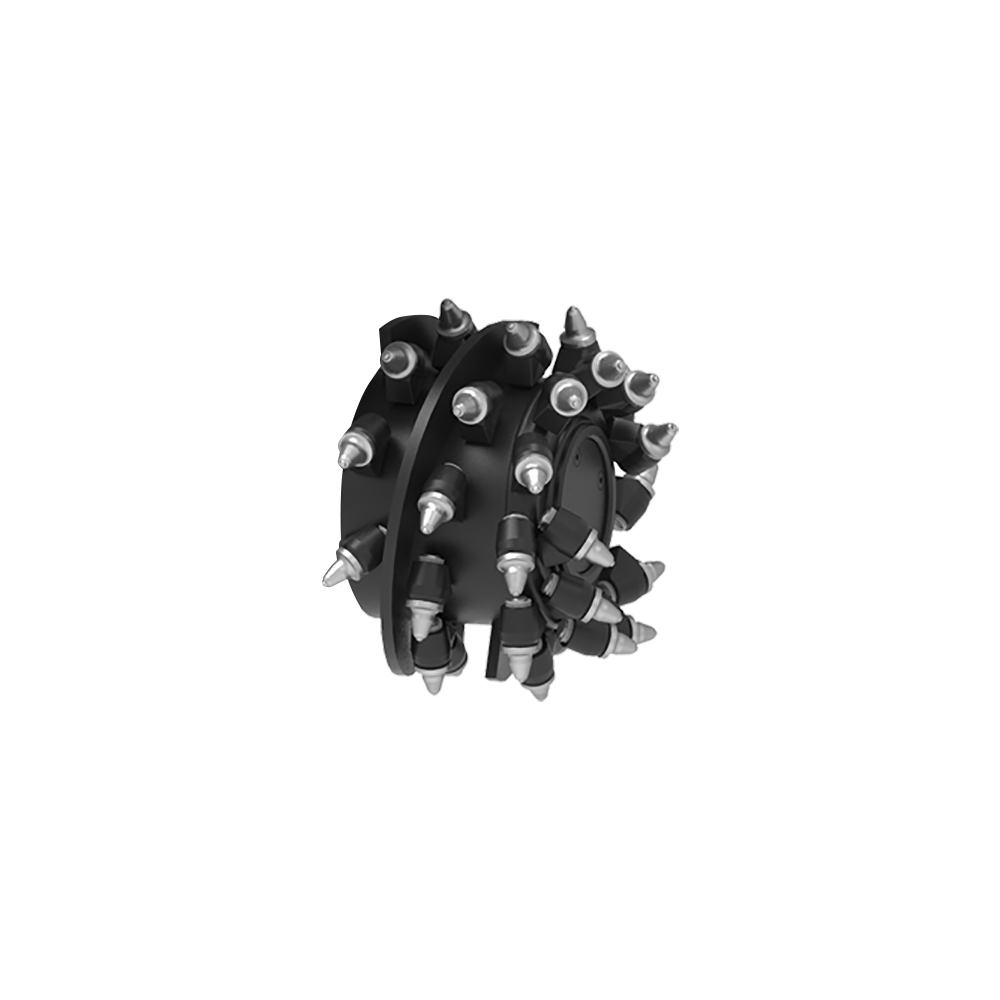

The hydraulic system operates at 300–400 l/min and requires 140 kW of power, sustaining high torque even at low rotational speeds. Equipped with 80 picks, DC40 provides uniform, controlled fragmentation and produces a consistent granular material suitable for reuse where site conditions permit.

Designed for heavy-duty conditions, DC40 is particularly suited to tunneling, rock excavation, mining surface work and deep foundation excavation where strength, durability and continuous performance are critical.

A 670 mm drum diameter, 460 mm single drum width and 1350 mm cutting width enable efficient processing of wide surfaces in large-scale mining, rock and heavy excavation work. The widest cutting envelope in the range helps high-capacity excavators cover more area with fewer passes and supports high daily production targets.

KEY FEATURES

• The most powerful model in the range with up to 30,000 Nm torque
• High-speed, balanced cutting with 80 picks
• Durable construction for high-flow and high-power hydraulic systems
• Low vibration and noise to reduce stress on operator and carrier
• Long service life for mining and infrastructure applications

APPLICATION AREAS

• Excavation of hard rock and reinforced-concrete surfaces
• Deep foundation excavation and infrastructure tunneling
• Mine-site preparation and surface profiling
• Energy and water infrastructure projects

OPTIONAL FEATURES

• Underwater Kit: Protected system for highly humid and wet operating environments
• High Abrasion Protection Kit: Hardox™ plates, zirconium-coated picks and particulate filtration
• Extended Reach Module: +500 mm extension tube for access to deep and inclined surfaces

TECHNICAL SPECIFICATIONS

Frequently Asked Questions (FAQ)

Q: Which excavators is the HKM DC40 Drum Cutter compatible with?
A: The DC40 is designed for excavators and suitable hydraulic carriers in the 30–50 ton operating class. Final compatibility should also be verified against the carrier’s hydraulic flow, operating pressure and mounting dimensions.

Q: What hydraulic flow and operating pressure are required for the DC40?
A: The DC40 operates with an oil-flow range of 300–400 l/min and a maximum operating pressure of 315 bar. Required power is 140 kW. For optimum performance, the carrier’s hydraulic specifications should fall within these operating requirements.

Q: What are the single drum width and cutting width of the DC40?
A: The DC40 has a single drum width of 460 mm and a total cutting width of 1350 mm. These dimensions are important when selecting the right model for the available working width and required surface profile.

Q: What applications can the HKM DC40 Drum Cutter be used for?
A: The DC40 can be used for hard-rock and reinforced-concrete excavation, deep foundation work, infrastructure tunneling, mine-site preparation, surface profiling, and energy or water infrastructure projects. It provides controlled, low-vibration cutting and excavation; final suitability should be assessed according to material properties and site conditions.
