T6426

HKM G170 Hydraulic Breaker

HKM Grey Series G170 is a high power medium class breaker for professional users working with 18–26 ton excavators. Its 1720 kg operating weight and 135 mm tool diameter ensure stable impact force and low maintenance costs when breaking large concrete sections and hard rock layers.

HKM Grey Line Medium Series Brochure

HKM Grey Serisi_Orta_Kiricilar_Brosur

HKM G170 Broşür

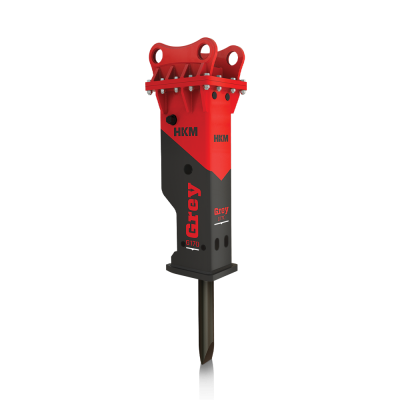

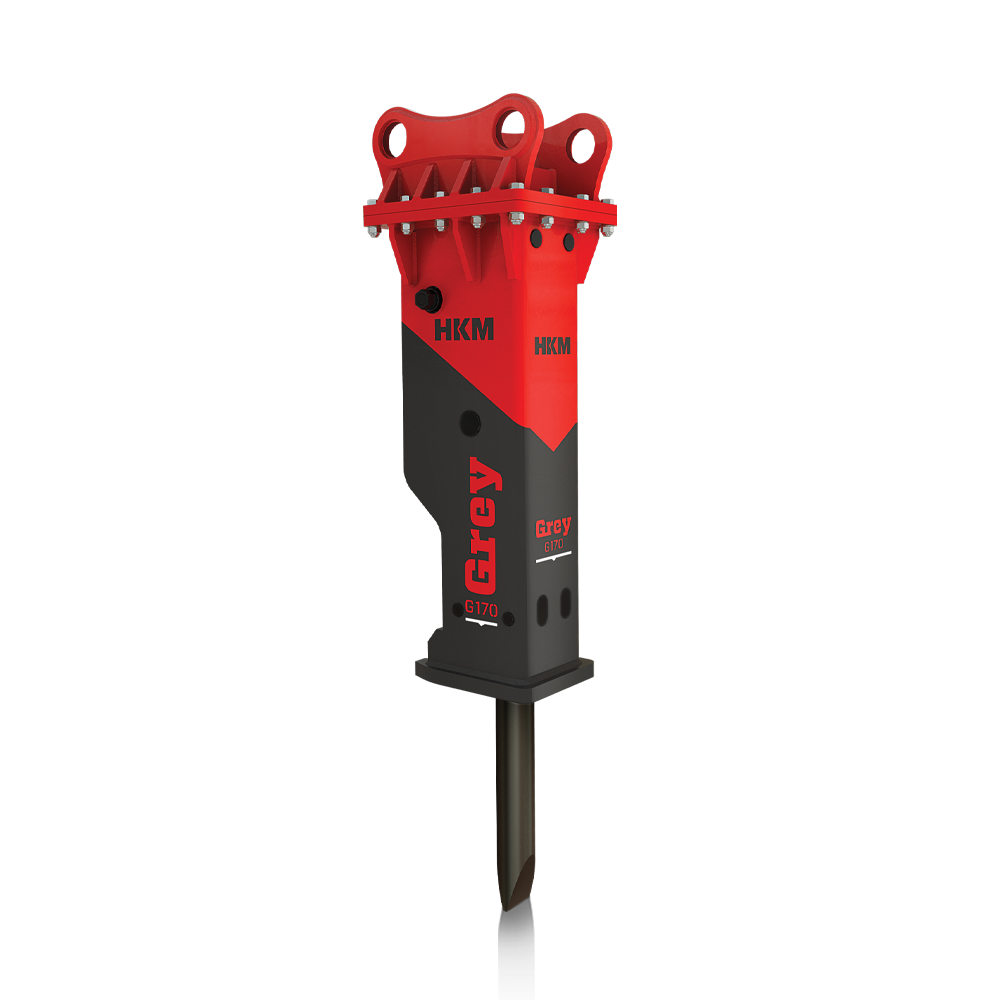

HKM G170 Hydraulic Breaker

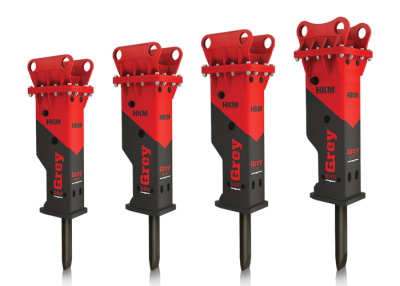

HKM GREY LINE MEDIUM BREAKERS – G170

The HKM Grey Line Medium Breakers are built for high-impact performance, extended service life, and fuel-efficient operation in demanding work environments.
As the largest model in the medium series, the G170 pushes the limits of the segment and approaches heavy-duty territory with its superior force and endurance.

See All HKM G170 Spare Parts → All Grey Series Breakers →

MAXIMUM MEDIUM POWER – READY FOR HEAVY WORK

The simplified internal design reduces service time, while the G 170's strong impact energy increases productivity on the jobsite.
Its wide pressure and flow range ensure seamless integration with various carriers in the 18–26 ton class.

The G 170 stands at the top of the Grey Line Medium Breakers, offering a powerful solution for operators who demand more from their equipment.

KEY FEATURES

1720 kg operating weight and 135 mm tool diameter — ideal for 18–26 ton class excavators
140–160 bar operating pressure and 125–150 l/min oil flow deliver maximum breaking performance
Hybrid power unit (gas + hydraulic) allows for efficient use across a wide working range
Long wear plates and advanced damping technology reduce vibration and component wear
Rugged structure designed for reliable performance in demolition, infrastructure, and quarry applications

INCLUDED IN THE SET

Hydraulic Breaker Machine
Mounting Bracket
Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

STANDARD EQUIPMENT

Hybrid Power Unit (Hydraulic-Gas)
Easy Part Replacement and Service Access

OPTIONAL EQUIPMENT

Underwater Kit
Reinforced Outer Housing
Quick Coupler for Attachment Change

TECHNICAL SPECIFICATIONS

Operational Weight (kg)	1720
Carrier Weight (ton)	18-26
Tool Diameter (mm)	135
Operating Pressure (bar)	140-160
Oil Flow (lt/min)	125-150
Impact Rate (bpm)	400-700

Frequently Asked Questions (FAQ)

Q: What size excavator is needed for the G170?
A: The HKM G170 is designed for excavators in the 18 to 26-ton range. It is the largest model in the Grey Series.

Q: Can it be used for heavy demolition?
A: Absolutely. With a weight of 1720 kg and a 135 mm tool diameter, it delivers high impact power suitable for heavy demolition, roadworks, and quarrying.

Q: Is it suitable for noise-sensitive areas?
A: Yes, despite its power, the G170 features the enclosed housing typical of the Grey Series, which helps suppress noise and vibration, making it suitable for urban projects.

🤔 Not Sure Which Breaker Fits?

If you are unsure whether this breaker is the right match for your machine, we are here to help.

Simply send us your excavator's or carrier's brand and model details. Our expert sales team will identify the perfect match for you and share a personalized offer.

Weight (Kg) 1720

Warranty All hydraulic breakers you purchase are protected by a 1-Year Comprehensive Warranty against manufacturing defects. At HKM, we prioritize the continuity of your business with our dedicated after-sales support. In case of any malfunction, we are at your side with our extensive spare parts inventory and expert technical team.

Delivery Information Shipping costs are excluded from the price, but we are here to assist with logistics! Upon placing your order, we research the fastest and most economical shipping method to your location (domestic or international) and present it for your approval. Your products are carefully packaged to ensure they arrive safely without damage.
