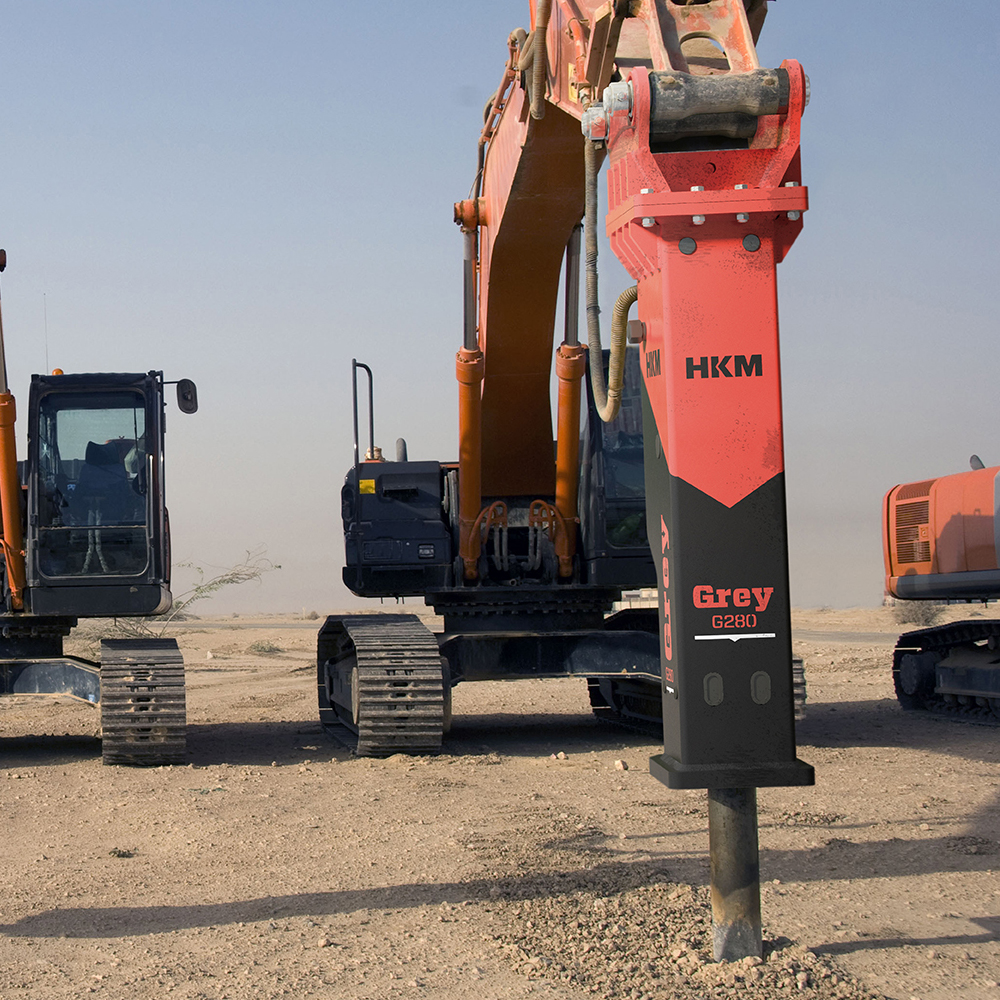

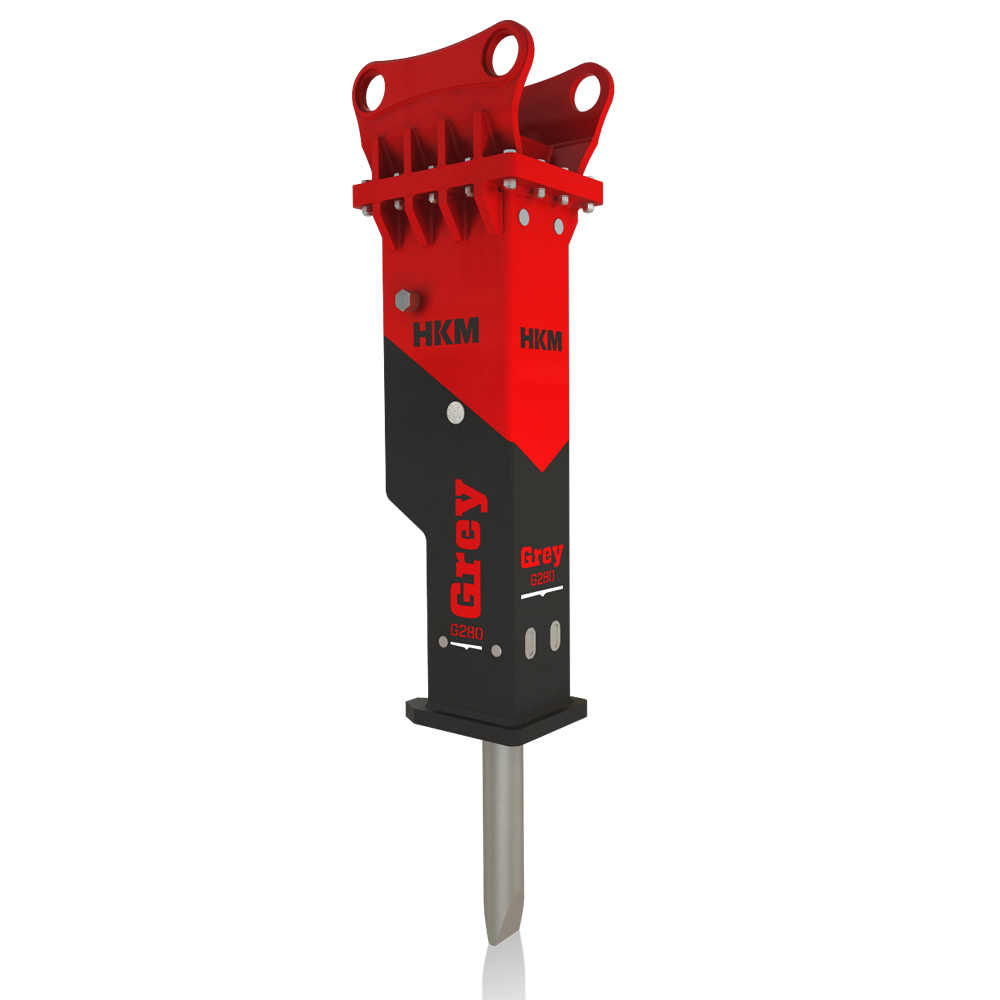

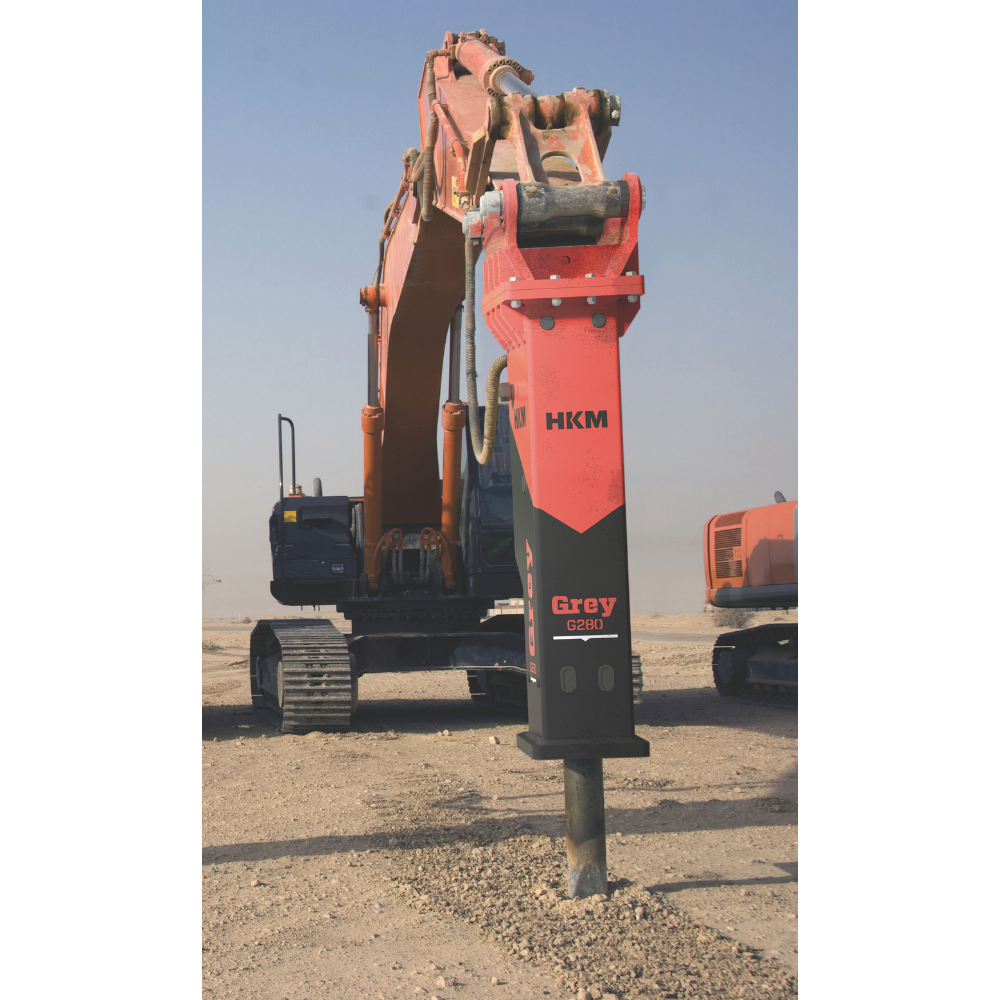

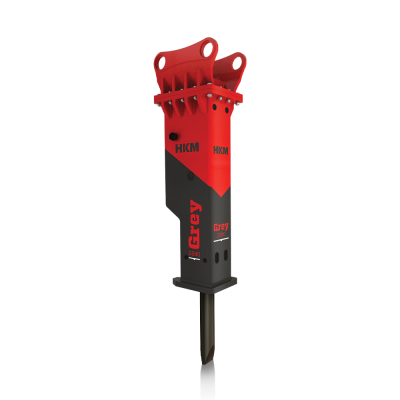

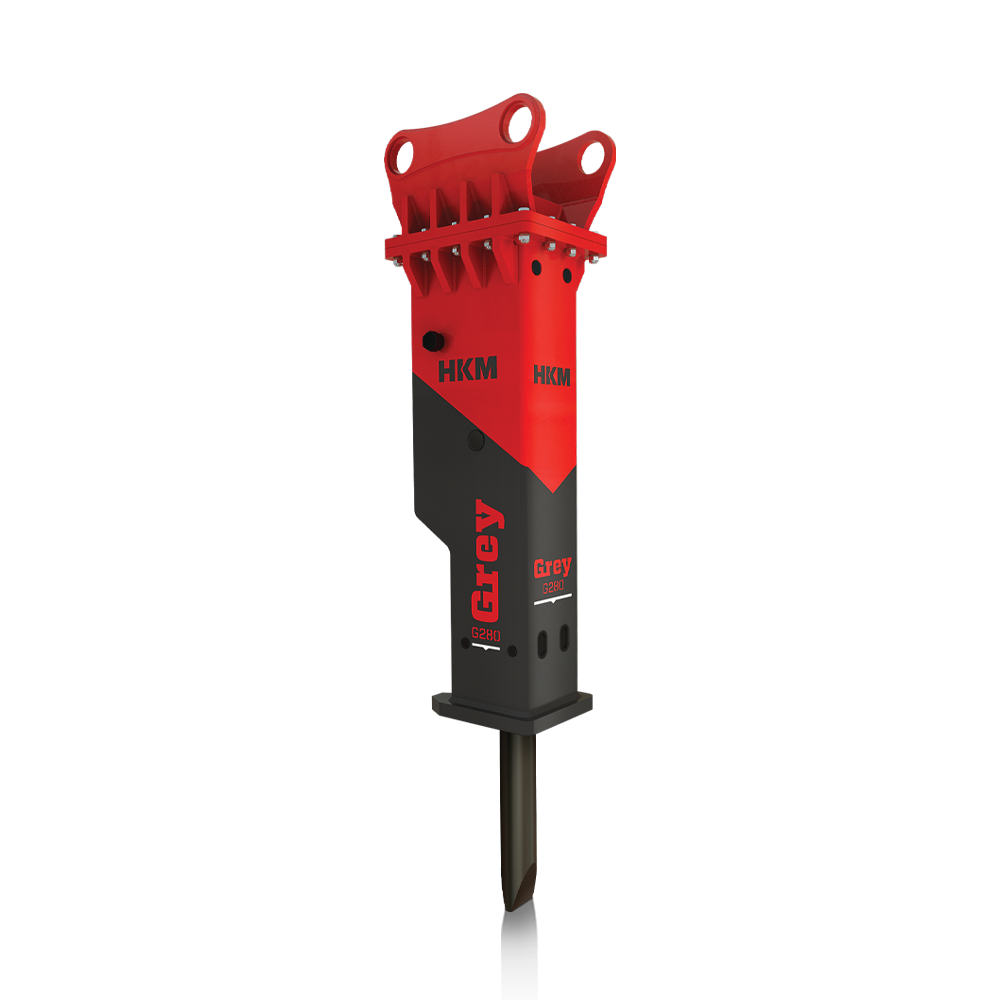

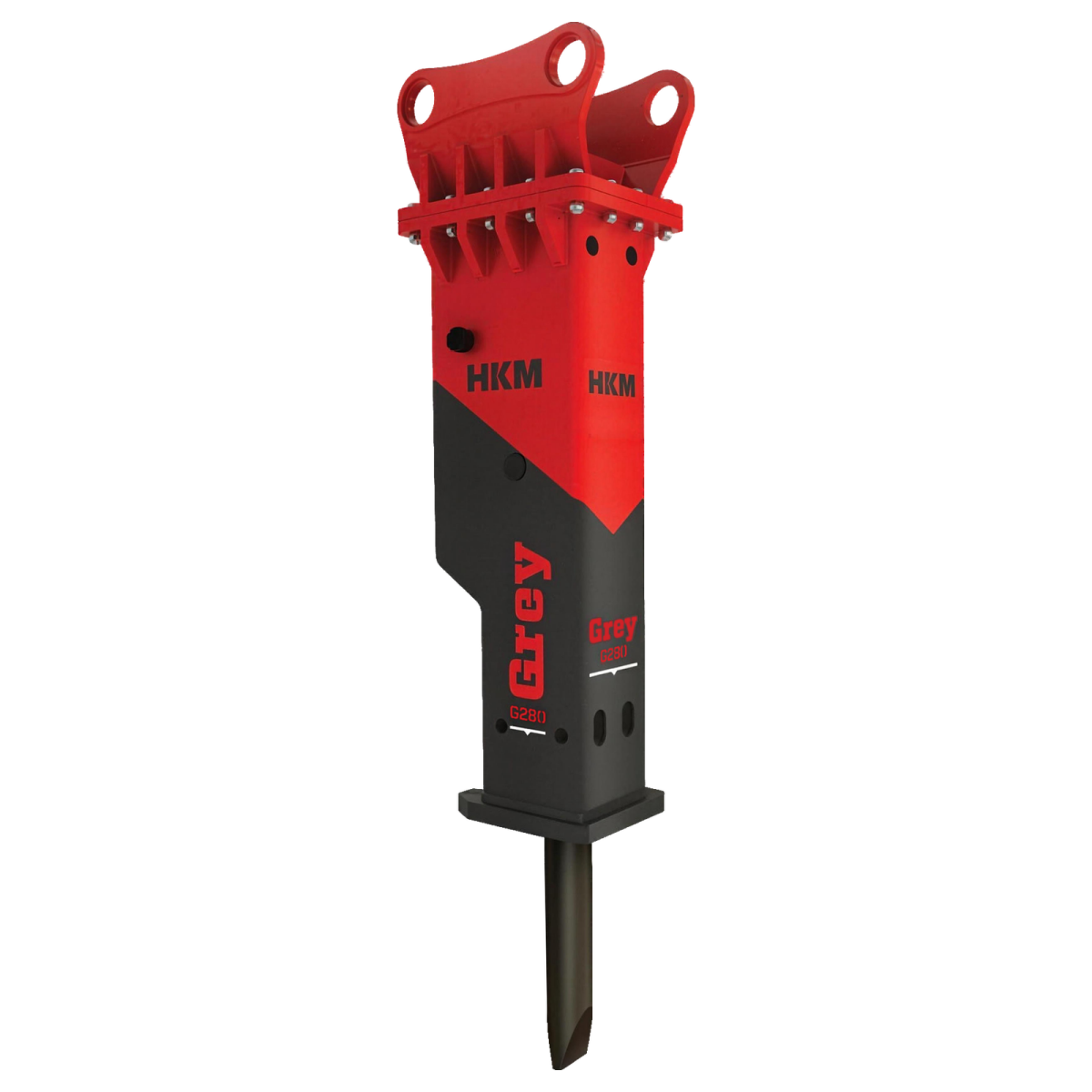

HKM G280 Hydraulic Breaker
HKM Grey Series G280 is the most powerful heavy duty model in the Grey Series for 34–55 ton large excavators. Its 2850 kg operating weight and 160 mm tool diameter provide maximum impact performance, reliability and professional grade durability in primary rock breaking, mining and large industrial demolition jobs.

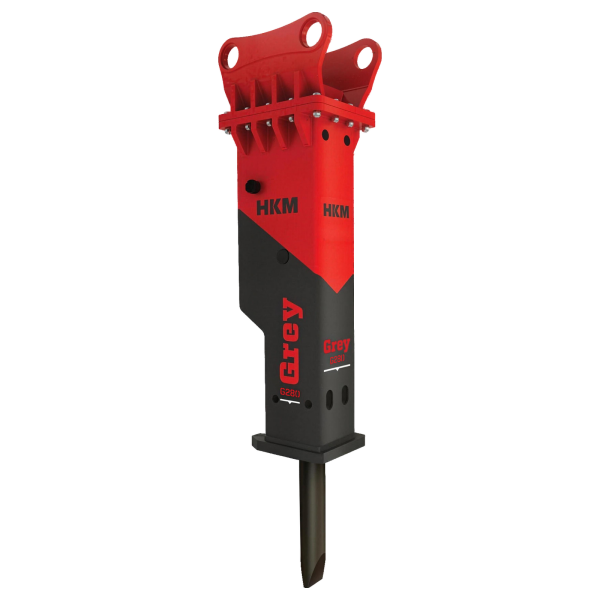

HKM G280 Hydraulic Breaker

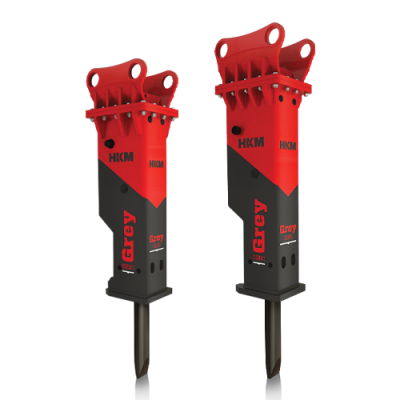

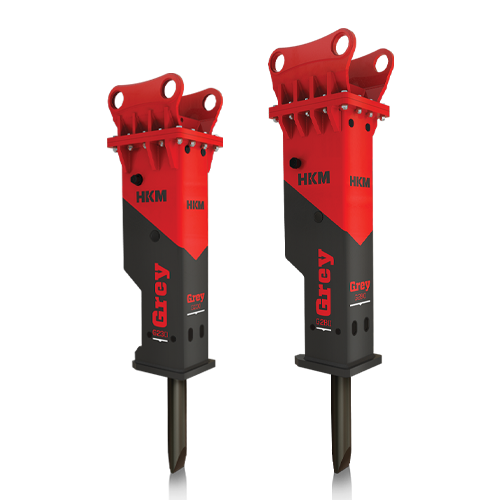

The HKM Grey Line Heavy Breakers are built for the harshest jobsite conditions — from quarrying and mining operations to high-tonnage demolition and infrastructure projects.
As the most powerful and largest model in the series, the G280 delivers extreme impact force, unmatched durability, and compatibility with a wide range of heavy-class excavators.
EXTREME FORCE FOR EXTREME JOBS
Powered by a hybrid gas-hydraulic power unit, the G 280 operates efficiently across a wide range of pressure and oil flow conditions, ensuring fuel efficiency and flexibility.
The monoblock body design enhances structural strength and absorbs impact stresses, while extended wear plates and advanced damping systems reduce vibration and protect both the breaker and the carrier.
The optional automatic lubrication system extends component life and minimizes downtime.
For tunnel operations, the G 280 features a specialized single-piece bushing design to reduce wear and lower consumable usage — even during intense vertical breaking.
Despite its weight and size, the G 280 delivers consistent performance while protecting your investment in machines and manpower.
HIGHLIGHTED FEATURES
- 2850 kg operating weight and 160 mm tool diameter — perfect fit for 34–55 ton excavators
- 165–185 bar operating pressure and 180–250 l/min oil flow deliver reliable power
- Exceptional impact energy with low vibration
- Wide pressure and flow range for carrier flexibility
- Heavy-duty monoblock housing for maximum durability
- Optional automatic greasing system for extended service life
- Tunnel-optimized single-piece bushing design
INCLUDED IN THE SET
- Hydraulic Breaker Machine
- Mounting Bracket
- Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box
STANDARD EQUIPMENT
- Hybrid Power Unit (Hydraulic + Gas)
- Monoblock Housing
- Vibration Damping Components
- Integrated Noise Reduction System
OPTIONAL EQUIPMENT
- Automatic Lubrication System
- Underwater Kit
- Reinforced Outer Casing
- Quick Coupler for Attachment Change
TECHNICAL SPECIFICATIONS
| Operational Weight (kg) | 2850 |
| Carrier Weight (ton) | 34-55 |
| Tool Diameter (mm) | 160 |
| Operating Pressure (bar) | 165-185 |
| Oil Flow (lt/min) | 180-250 |
| Impact Rate (bpm) | 275-450 |
Frequently Asked Questions (FAQ)
Q: Is the G280 the biggest breaker in the Grey Series?
A: Yes, the G280 is the flagship model of the Grey Series, designed for heavy excavators between 34 and 55 tons.
Q: Is it suitable for quarrying?
A: Absolutely. With a massive 160mm tool diameter and 2850 kg weight, it delivers the high impact energy required for breaking hard rock in quarries.
Q: What is the "Monoblock Housing"?
A: It is a single-piece body design that eliminates tie rods (side bolts) in the housing structure. This makes the breaker more robust, durable, and resistant to the stresses of heavy-duty work.
🤔 Not Sure Which Breaker Fits?
If you are unsure whether this breaker is the right match for your machine, we are here to help.
Simply send us your excavator's or carrier's brand and model details. Our expert sales team will identify the perfect match for you and share a personalized offer.
