Brand:HKMModel:AG250HKM code:T6450

HKM AG250 Hydraulic Auger Set

The HKM AG250 is optimized for 18–24 ton excavators, delivering 25,000 Nm torque and 80–170 L/min oil flow. It supports Ø150–1200 mm augers, excelling in large-diameter foundation and pole setting operations.

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

HKM AG250 – Hydraulic Augers Set


Industrial-Grade Torque – Built for Serious Demands

The HKM AG250 Hydraulic Auger Set is engineered for 18–24 ton class excavators and delivers a staggering 25,000 Nm of torque to tackle the most demanding drilling tasks. Its 12–26 RPM speed range ensures steady control even with large-diameter augers.

With an oil flow requirement of 21.3–68.0 L/min and operating pressure between 160–240 bar, the AG250 is tailored for high-output hydraulic systems. Equipped with a 75 mm square shaft, it supports augers from Ø150 up to Ø1200 mm, making it ideal for infrastructure, pole foundation work, and large-scale construction projects.

Included in the set:

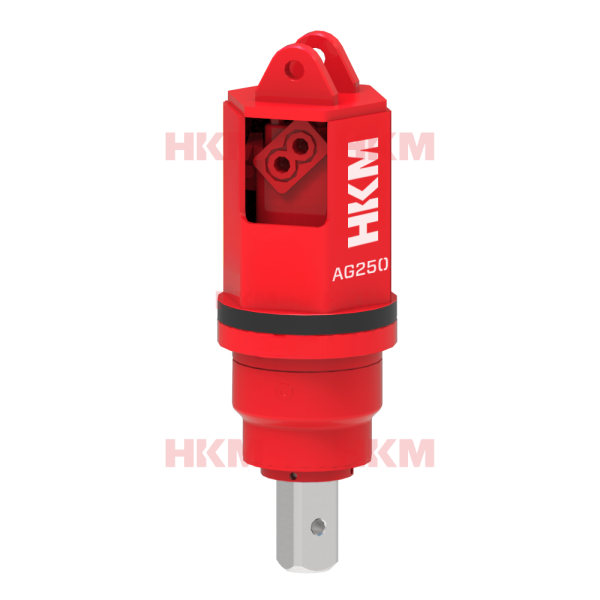

  • Hydraulic Auger Drive Unit
  • Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
  • Auger Ø300 mm L:1200 mm
  • Pilot Drill Head
  • Hydraulic Connection Hoses
  • Carrier Connection Pins

Why Choose the AG250?

  • Immense 25,000 Nm torque output
  • Handles large-diameter augers with ease
  • Robust construction for long service life
  • Reliable performance under extreme jobsite conditions
  • Compatible with heavy-duty machines

Recommended for: Deep foundation drilling, utility pole installations, urban infrastructure, hard soil and rock penetration

TECHNICAL SPECIFICATIONS

SpecificationAG250
Carrier Weight (ton)18 - 24
Drive Unit Weight (kg)270
Torque (Nm)25000
Rotary Speed (RPM)12 - 26
Input Power (kW)21.3 - 68.0
Oil Flow (L/min)80 - 170
Operating Pressure (bar)160 - 240
Shaft Diameter (mm)75 (square)
Auger Diameter (mm)150 - 1200
Auger Length (mm, recm.)1750
