Hydraulic Auger Set
HKM AG50 – Hydraulic Augers Set
High Torque Drilling Solution for Mid-Size Machines
The HKM AG50 Hydraulic Auger Set is designed for excavators and carriers in the 5–7 ton range, offering serious power for demanding drilling operations. With 5,000 Nm of torque and a 28–64 RPM speed range, it delivers stable and strong performance in a wide variety of jobs.
Running efficiently at 40–75 L/min oil flow and 80–240 bar pressure, the AG50 integrates seamlessly with standard mid-range hydraulic systems. Its 75 mm square shaft ensures strength, while auger compatibility from Ø150 to Ø600 mm allows for versatility in tough ground types.
Included in the set:

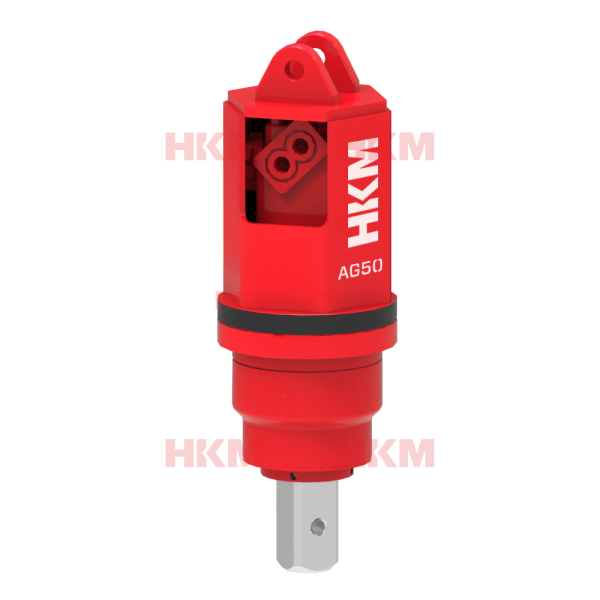

- Hydraulic Auger Drive Unit
- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
- Auger Ø300 mm L:1200 mm

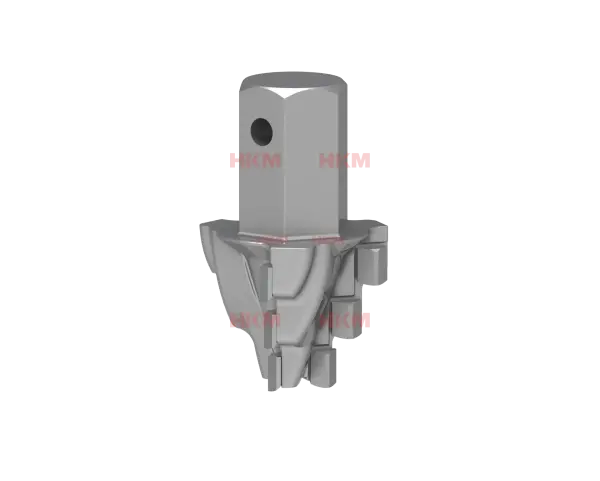

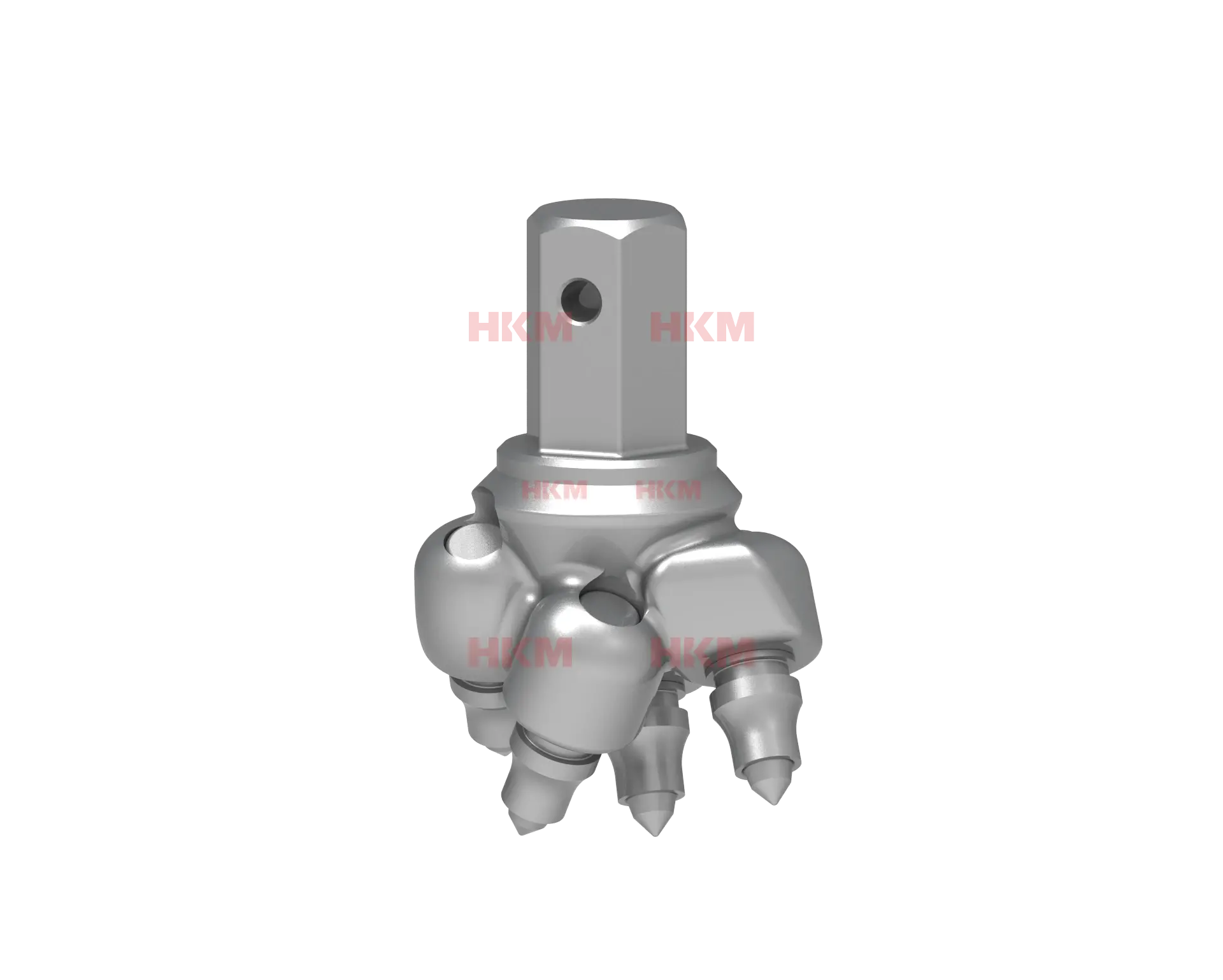

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG50?
- Heavy-duty torque output for powerful drilling
- Square shaft for added durability under load
- Flexible use across wide auger diameters
- Long-lasting build with minimal maintenance
- Suitable for various ground types and job scopes
Recommended for: Infrastructure works, urban landscaping, large post installation, soil sampling, farming tasks
TECHNICAL SPECIFICATIONS
| Specification | AG35 |
|---|---|
| Carrier Weight (ton) | 5 - 7 |
| Drive Unit Weight (kg) | 108 |
| Torque (Nm) | 5000 |
| Rotary Speed (RPM) | 28 - 64 |
| Input Power (kW) | 5.3 - 32.0 |
| Oil Flow (L/min) | 40 - 75 |
| Operating Pressure (bar) | 80 - 240 |
| Shaft Diameter (mm) | 75 (square) |
| Auger Diameter (mm) | 150 - 600 |
| Auger Length (mm, recm.) | 1500 |
