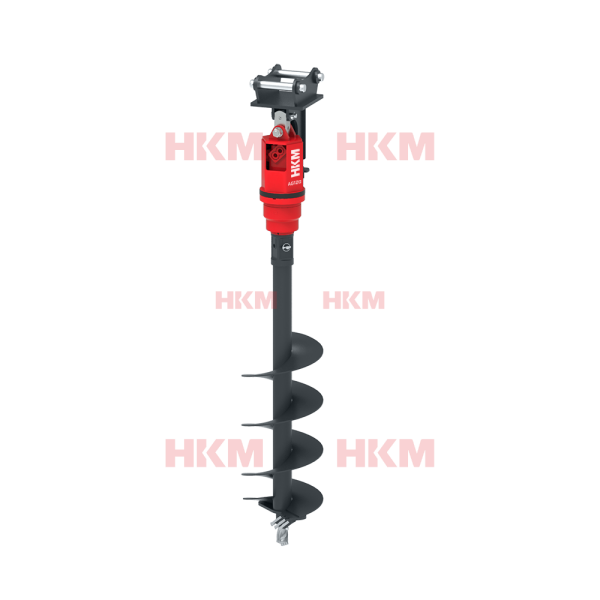

HKM AG120 – Hydraulic Augers Set
Precision Power for Mid-to-Heavy Excavators
The HKM AG120 Hydraulic Auger Set delivers 12,000 Nm of torque and is engineered for 13–17 ton machines requiring high-efficiency drilling for demanding tasks. With a 22–48 RPM rotation range, it provides powerful and precise performance ideal for a variety of soil conditions.
Designed to handle 70–150 L/min oil flow and 80–240 bar operating pressure, the AG120 integrates seamlessly with larger hydraulic systems. Its 75 mm square shaft supports auger bits from Ø150 to Ø900 mm, making it a strong, flexible solution for construction, agriculture, and utility drilling.
Included in the set:

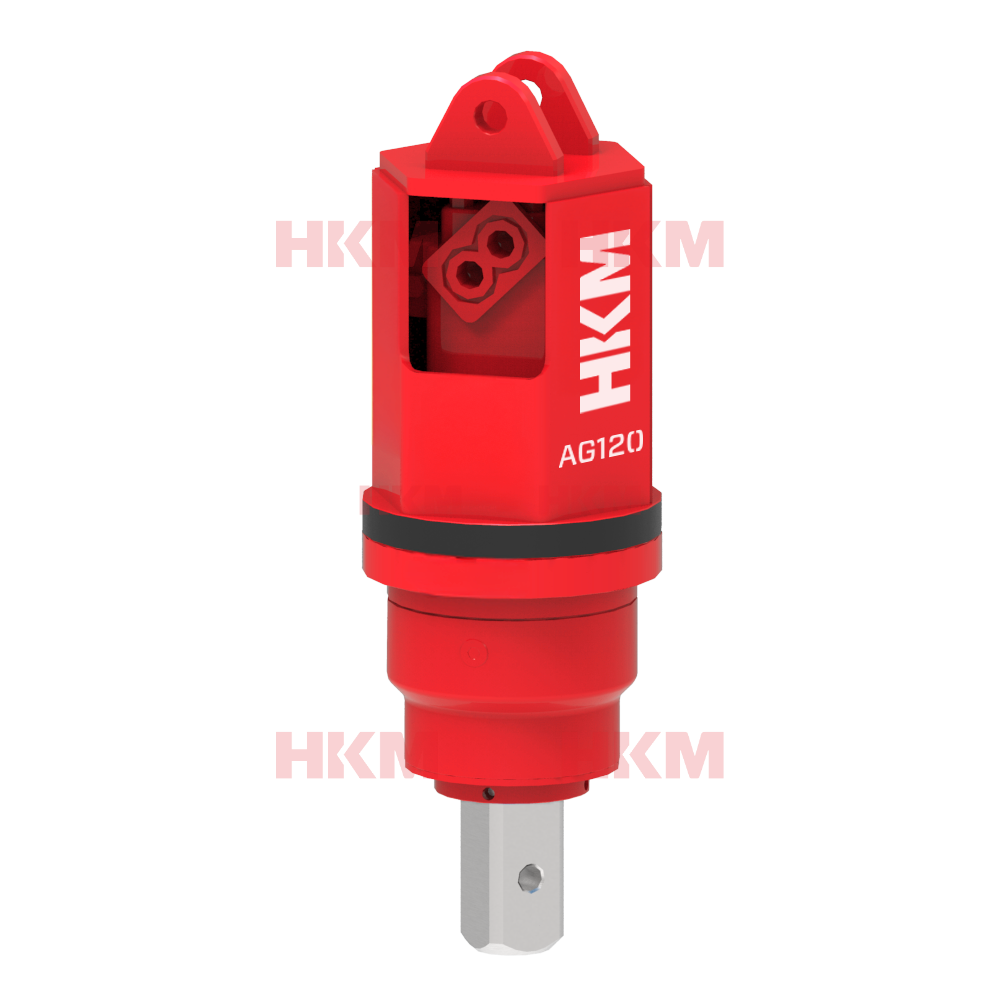

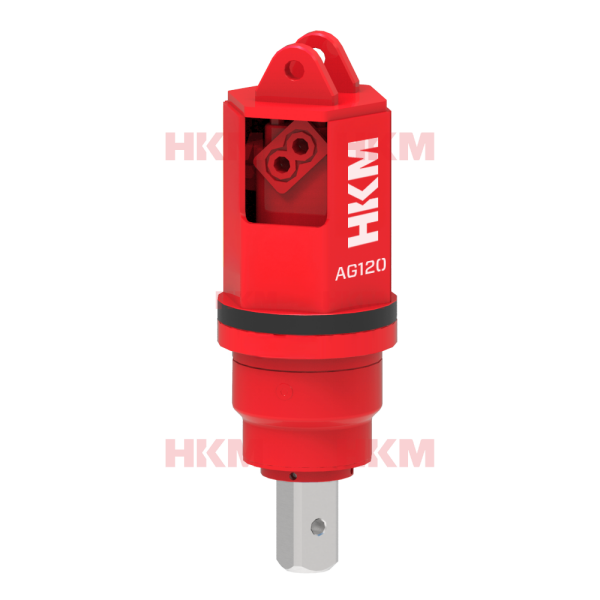

- Hydraulic Auger Drive Unit

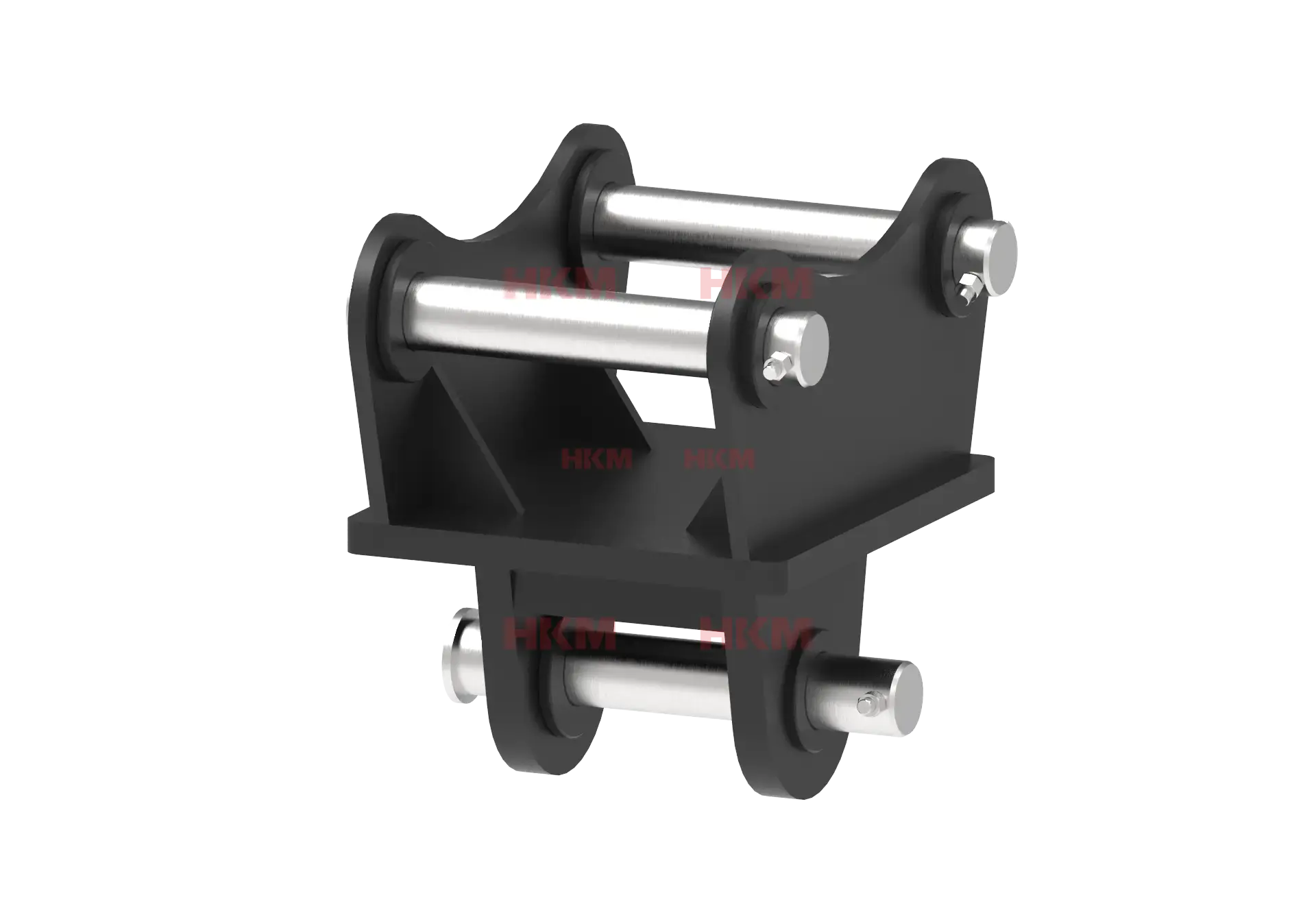

- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.

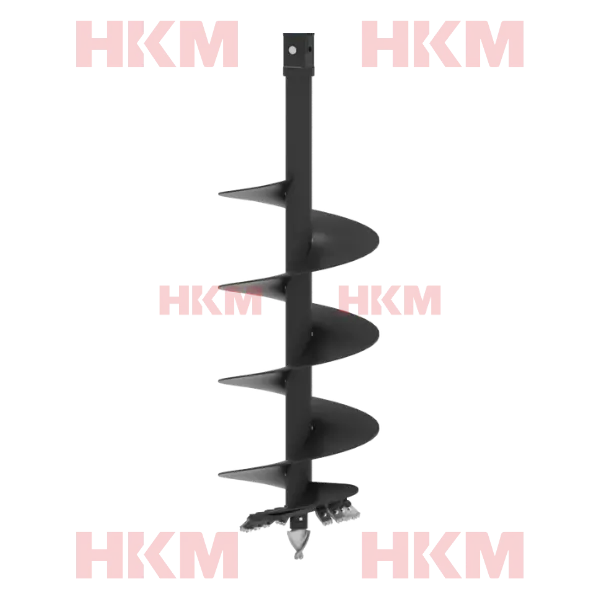

- Auger Ø300 mm L:1200 mm

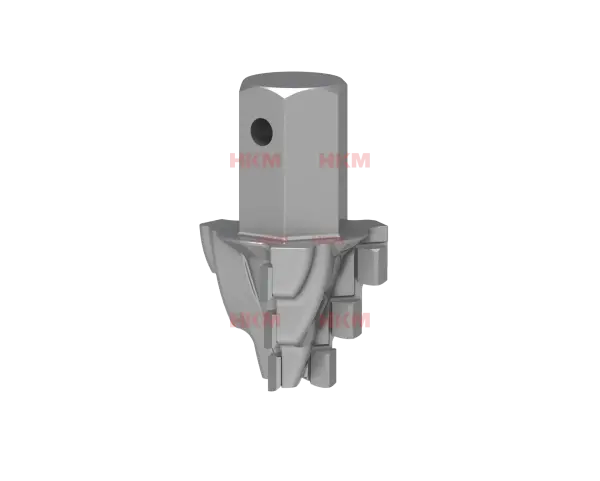

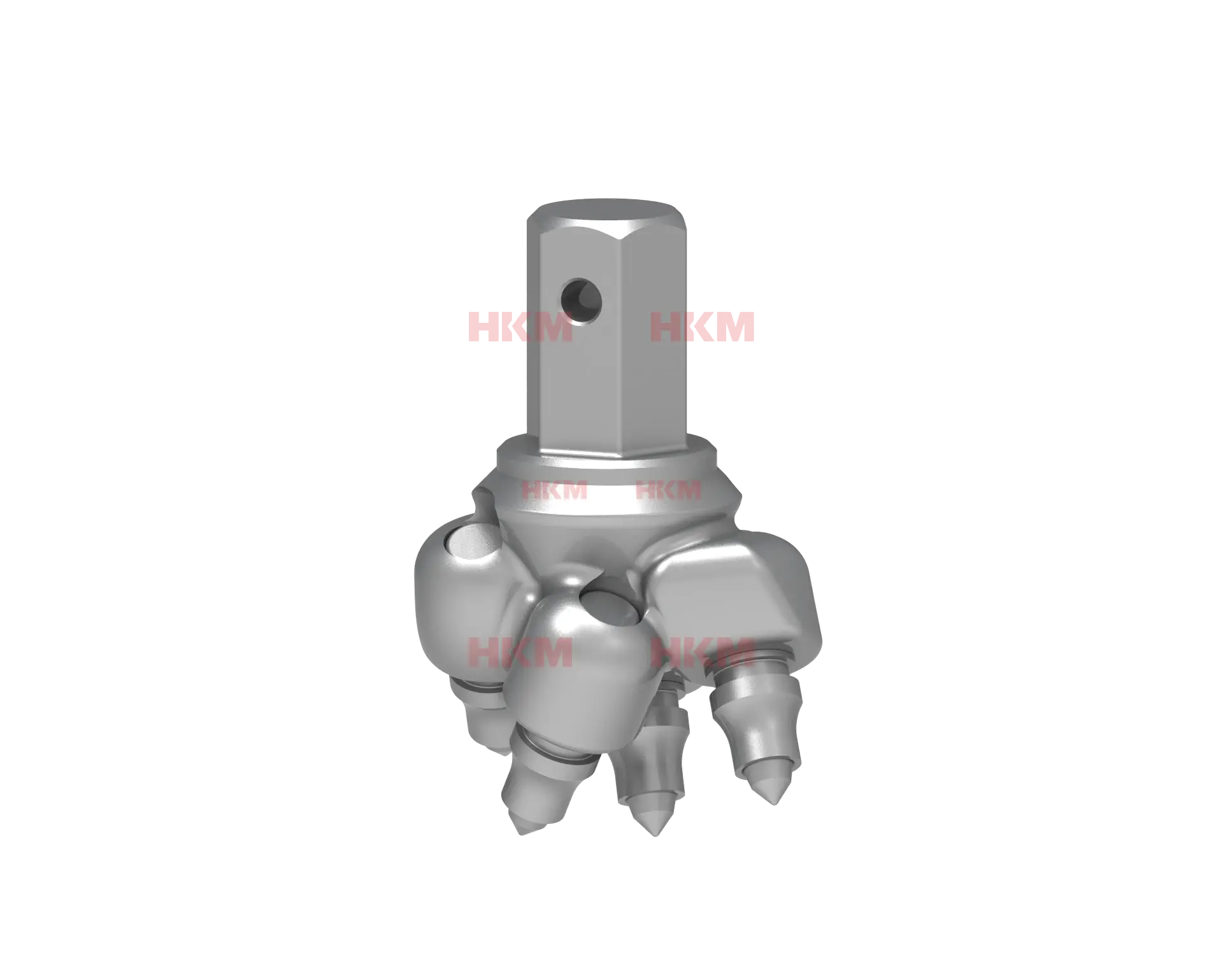

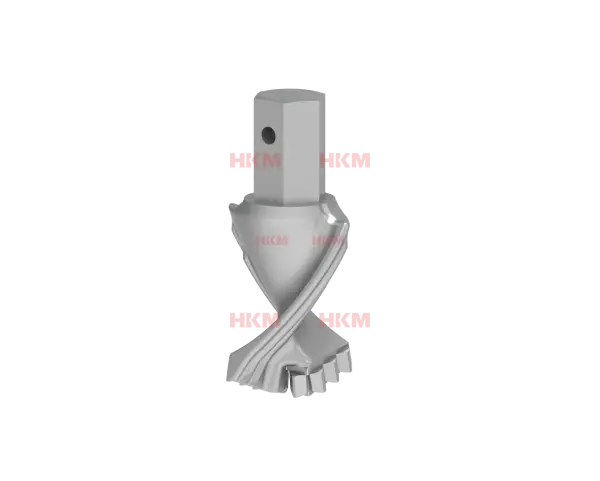

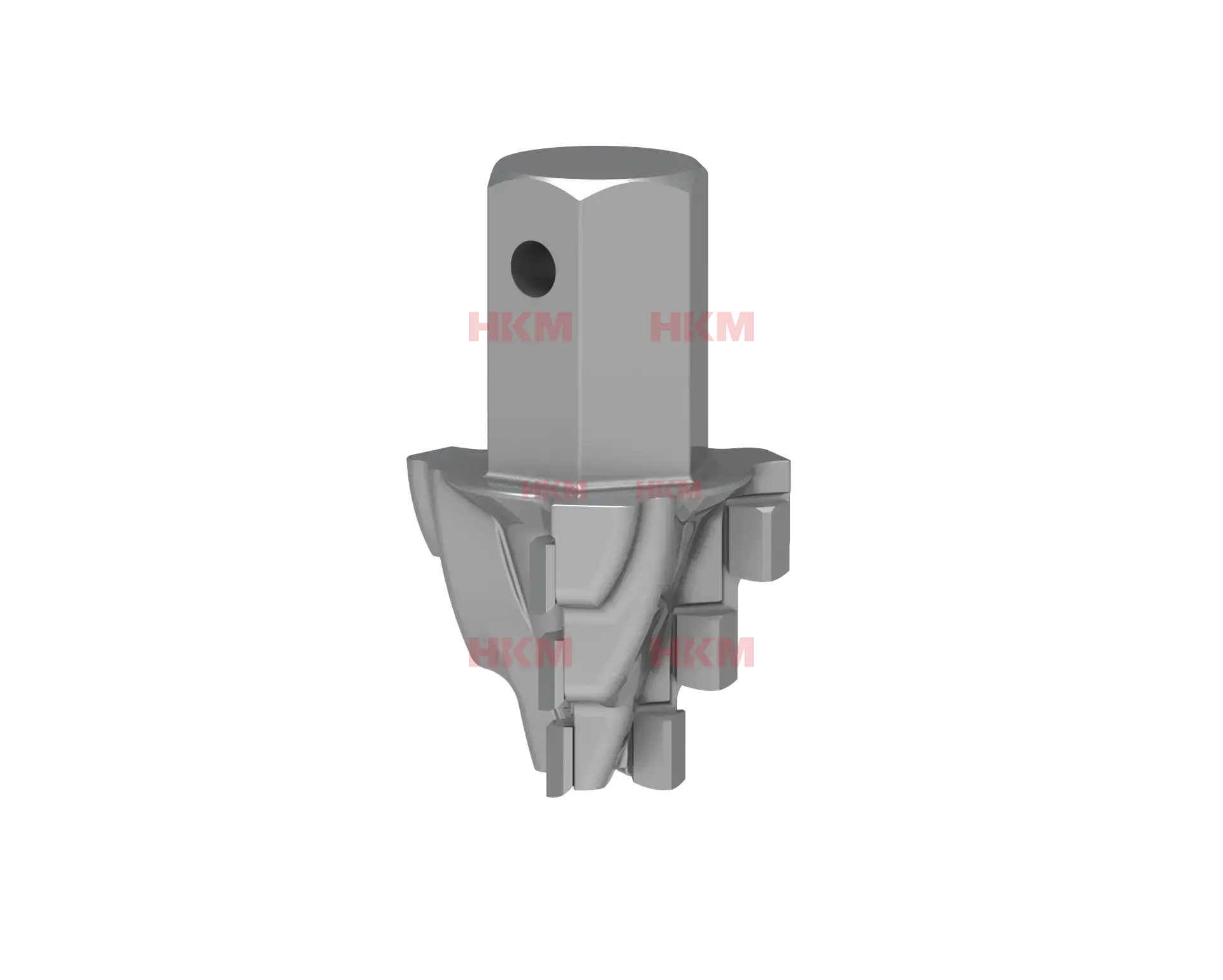

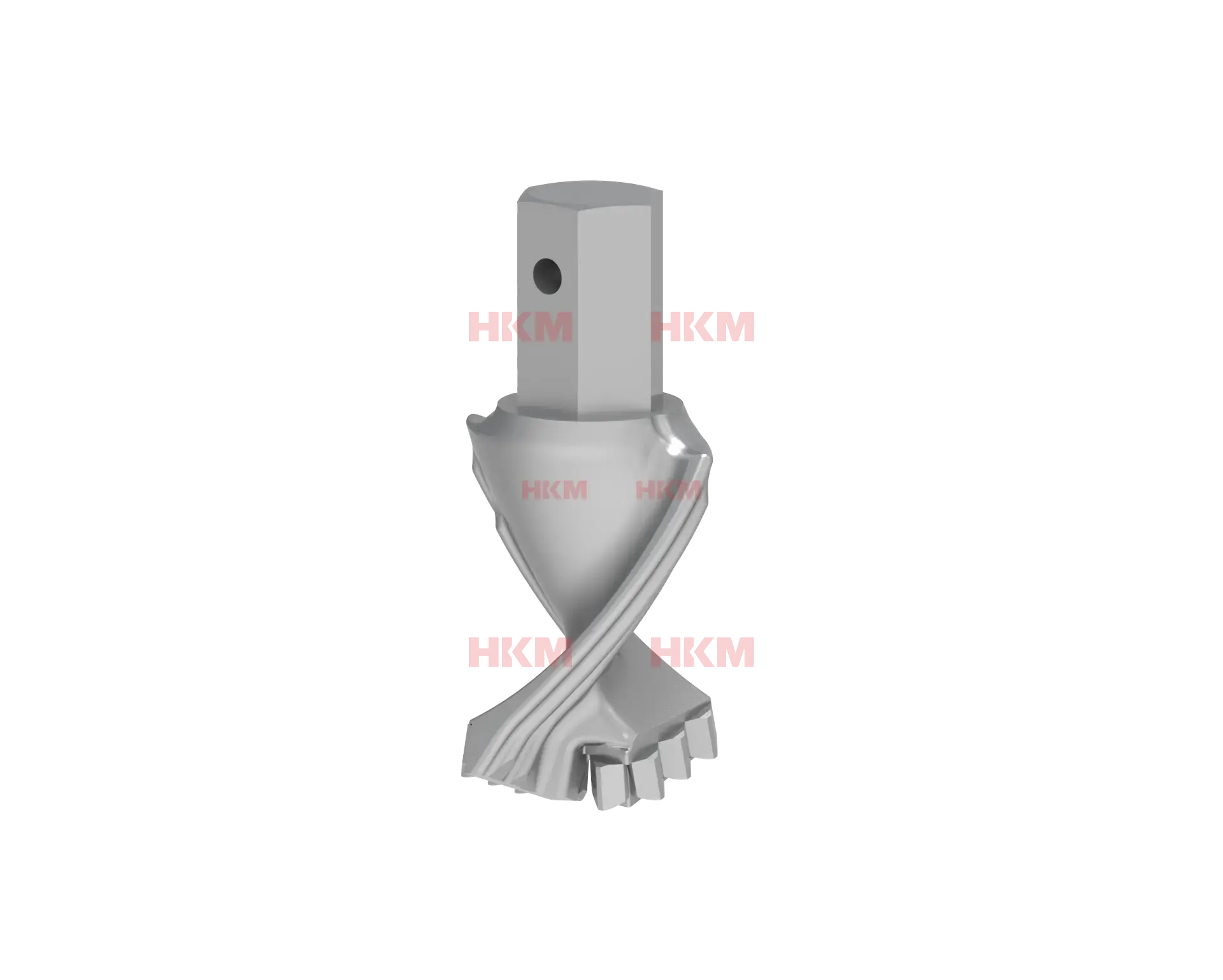

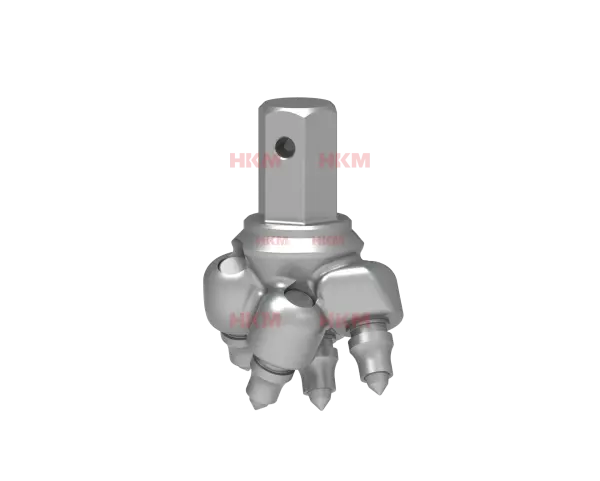

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG120?
- Exceptional 12,000 Nm torque output
- Smooth performance on mid-to-heavy carriers
- High compatibility with wide auger sizes
- Rugged structure for rough terrain
- Low-maintenance system with fast setup
Recommended for: Foundation works, pole installation, field operations, mining and infrastructure projects
TECHNICAL SPECIFICATIONS
| Specification | AG35 |
|---|---|
| Carrier Weight (ton) | 13 - 17 |
| Drive Unit Weight (kg) | 167 |
| Torque (Nm) | 12000 |
| Rotary Speed (RPM) | 22 - 48 |
| Input Power (kW) | 9.3 - 54.0 |
| Oil Flow (L/min) | 70 - 150 |
| Operating Pressure (bar) | 80 - 240 |
| Shaft Diameter (mm) | 75 (square) |
| Auger Diameter (mm) | 150 - 900 |
| Auger Length (mm, recm.) | 1750 |
