Hydraulic Auger Set

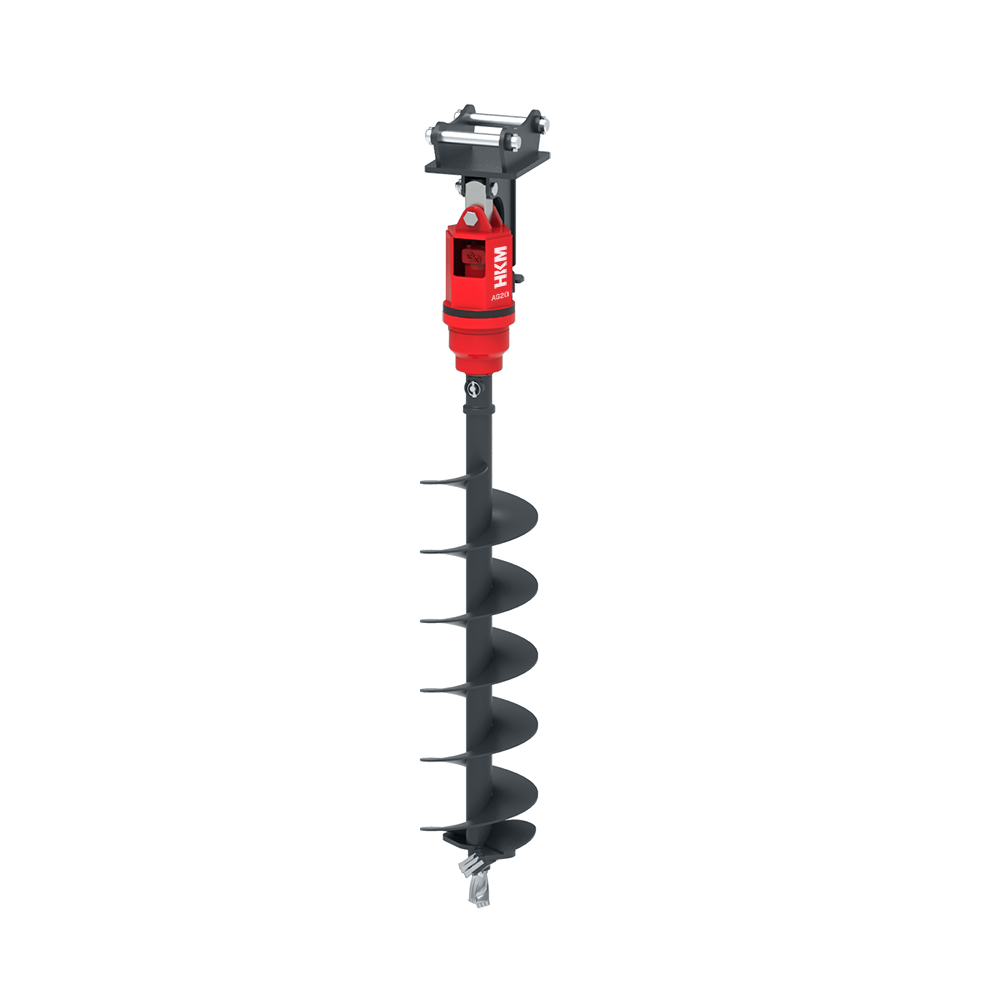

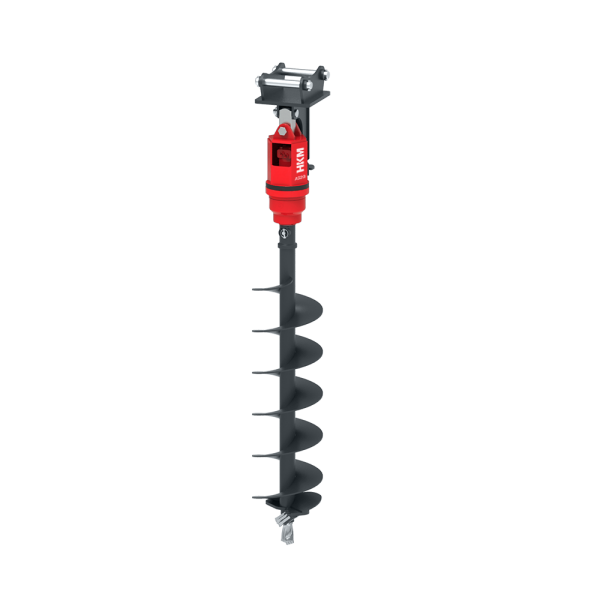

HKM AG20 – Hydraulic Augers Set
Engineered for Compact Carriers – Built for Big Results
The HKM AG20 Hydraulic Auger Set is precisely engineered for mini excavators and compact machines in the 1–2.5 ton class. Despite its compact size, it delivers an impressive 2,000 Nm of torque and operates smoothly within a 40–92 RPM range, making it the perfect solution for fence post drilling, landscaping, soil sampling, and other light-duty foundation jobs.
Thanks to its low oil flow requirement (22–55 L/min) and working pressure range of 70–205 bar, the AG20 performs efficiently even on machines with limited hydraulic power, helping you reduce fuel costs and job time. The durable 65 mm round output shaft and auger compatibility from Ø100 to Ø400 mm provide flexibility for multiple soil types and job conditions.
Included in the set:

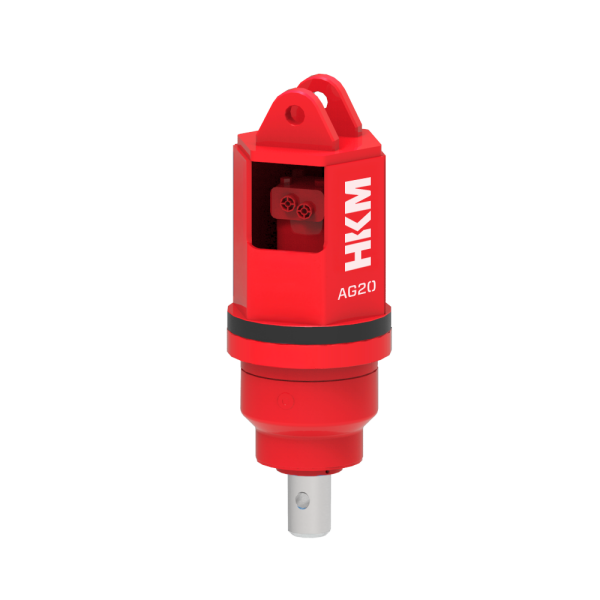

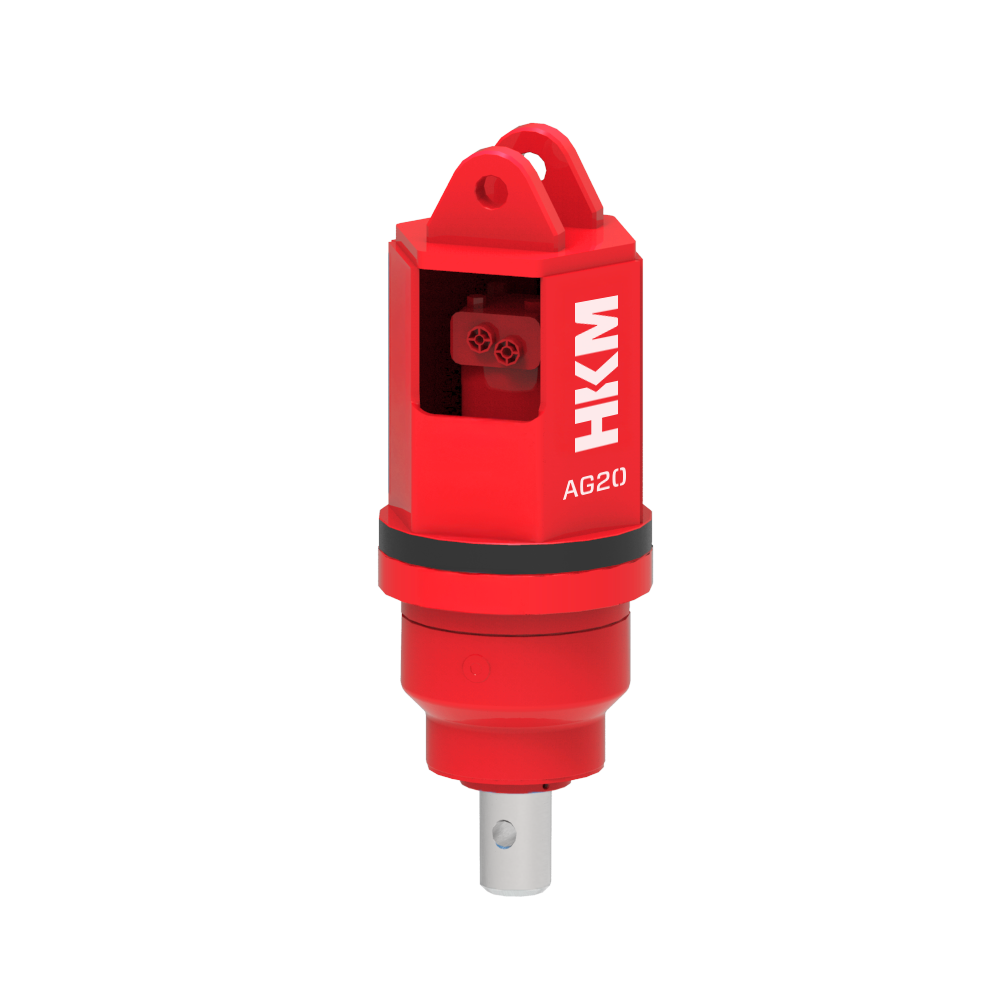

- Hydraulic Auger Drive Unit

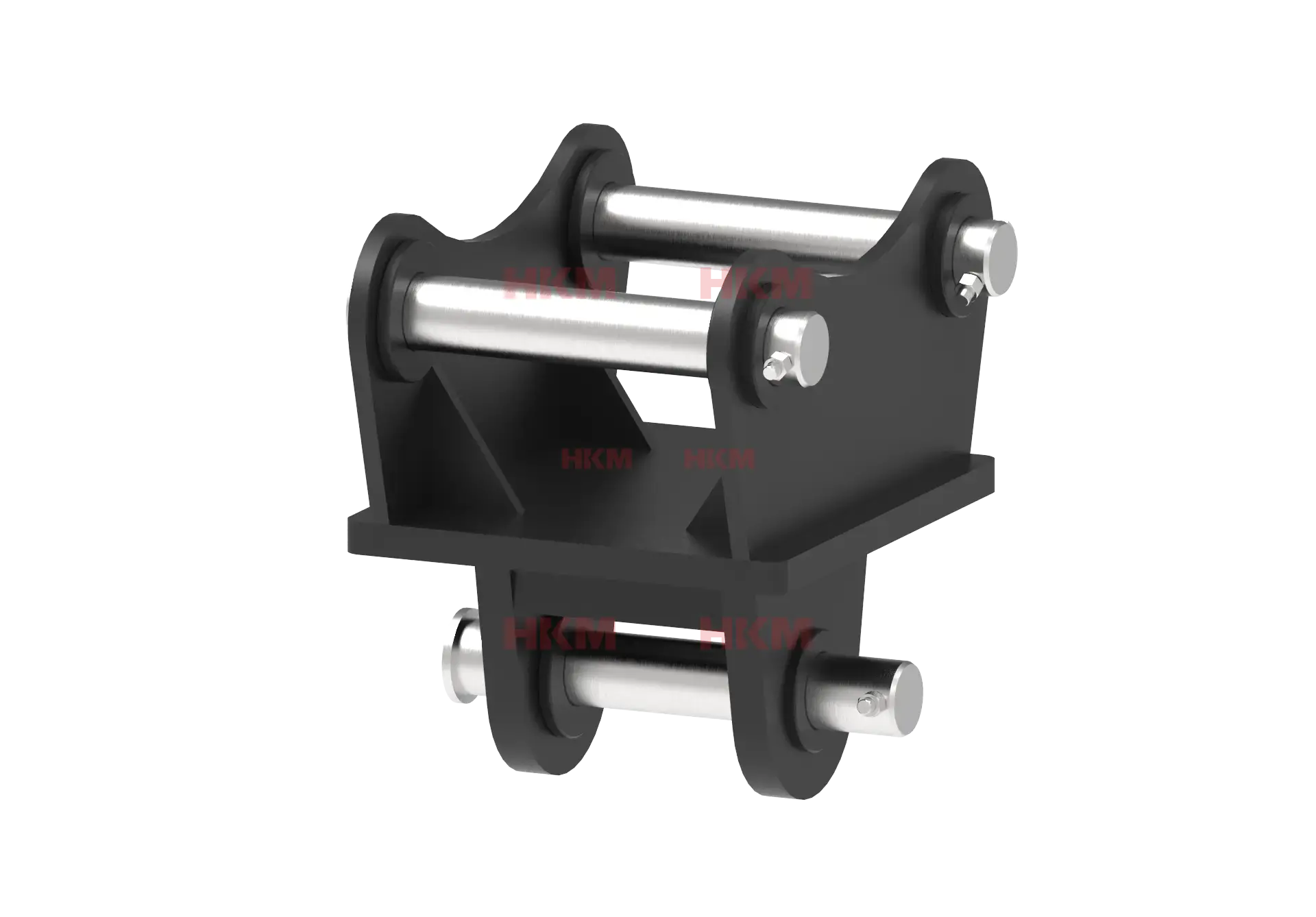

- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
- Auger Ø300 mm L:1200 mm

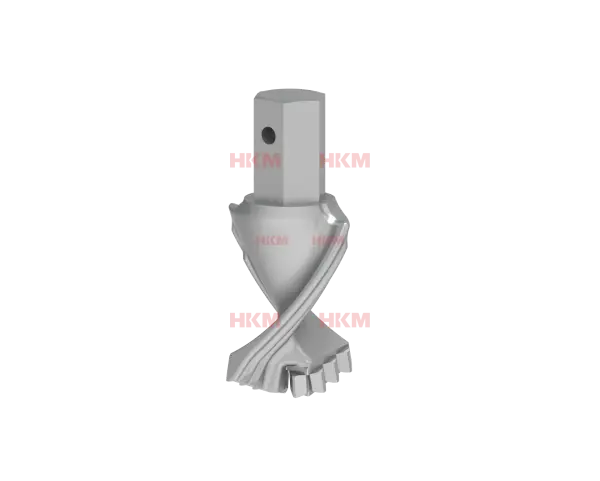

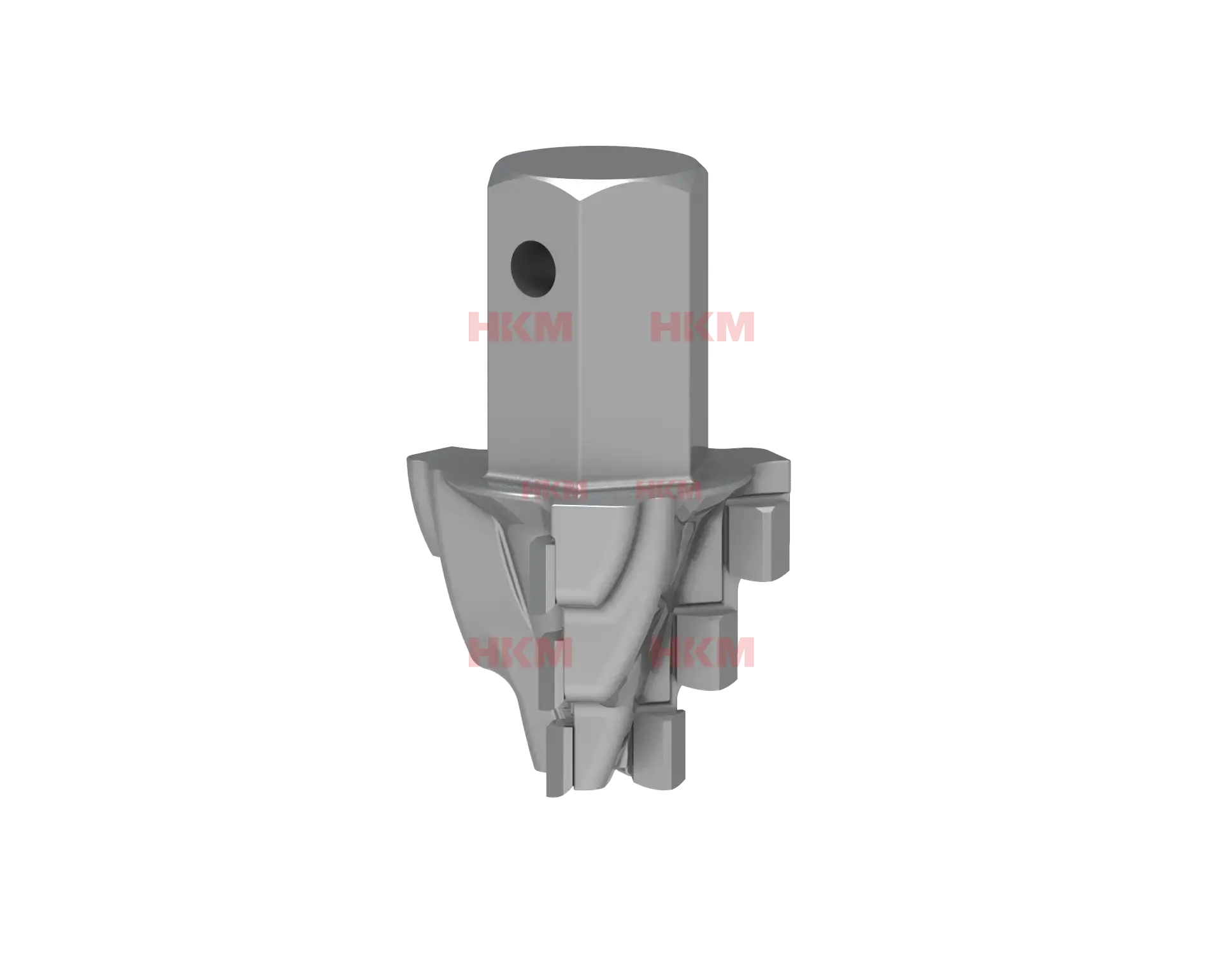

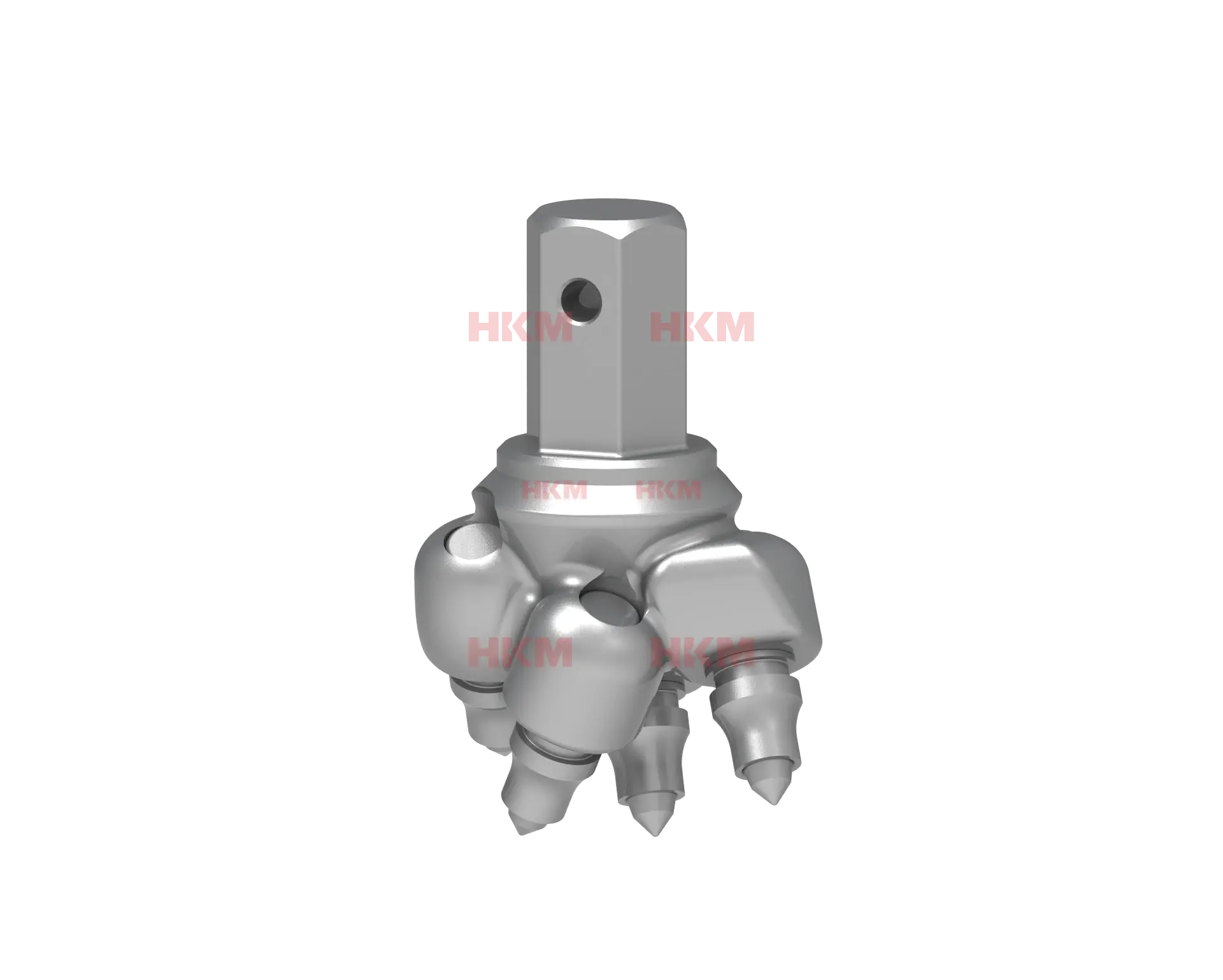

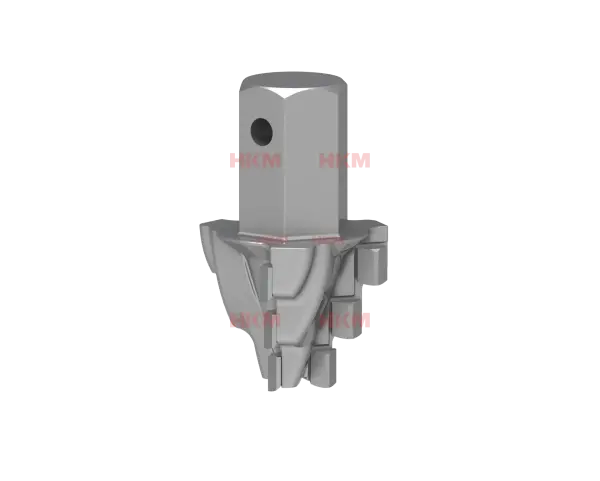

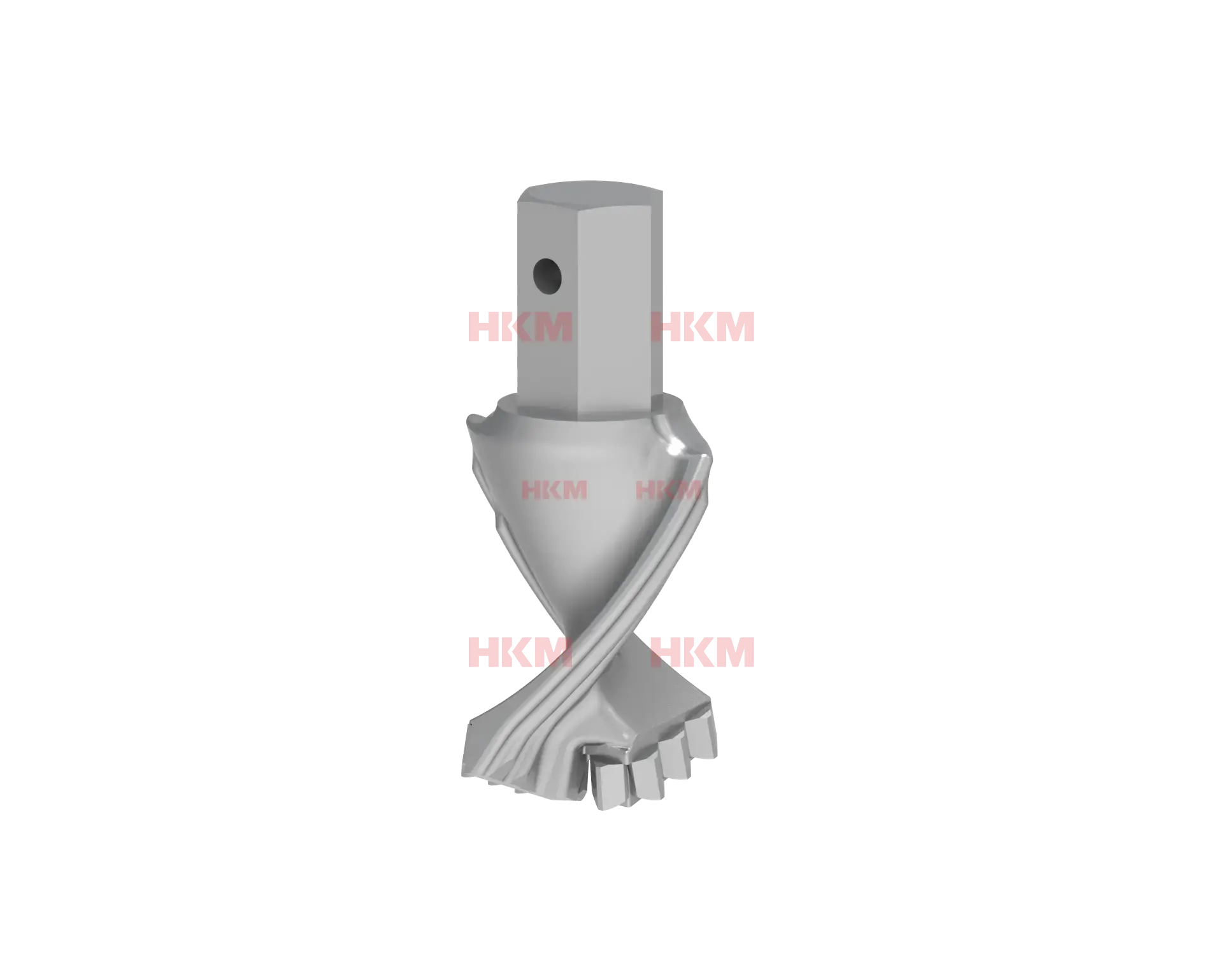

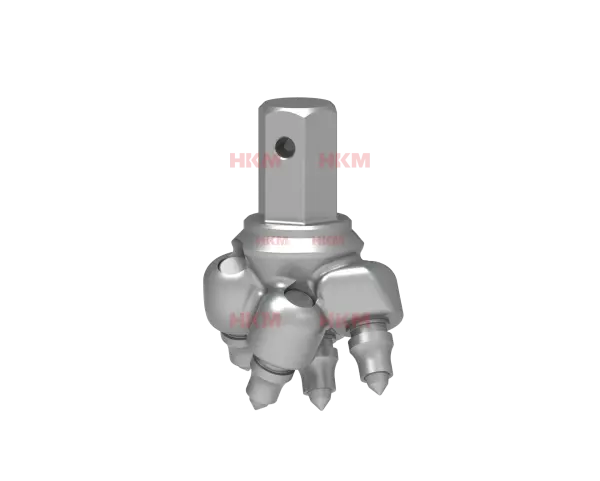

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG20?
- Compact size with high torque output
- Durable auger and wear-resistant build
- Fast installation, low maintenance
- Efficient performance in tight spaces
- Economical drilling solution for small-scale jobs
Recommended for: Landscaping, agriculture, fence & post installation, soft ground drilling, urban utility works
TECHNICAL SPECIFICATIONS
| Specification | AG20 |
|---|---|
| Carrier Weight (ton) | 1 - 2.5 |
| Drive Unit Weight (kg) | 54 |
| Torque (Nm) | 2000 |
| Rotary Speed (RPM) | 40 - 92 |
| Input Power (kW) | 2.5 - 18.7 |
| Oil Flow (L/min) | 22 - 55 |
| Operating Pressure (bar) | 70 - 205 |
| Shaft Diameter (mm) | 65 (round) |
| Auger Diameter (mm) | 100 - 400 |
| Auger Length (mm, recm.) | 1200 |
