Brand:HKMModel:AG500HKM code:T6451

HKM AG500 Hydraulic Auger Set

Built for 20–45 ton mega machines, the HKM AG500 delivers 48,000 Nm torque and 100–280 L/min oil flow. Supporting Ø300–1500 mm augers, it offers peak power for mining, geotechnical, and heavy infrastructure applications.

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

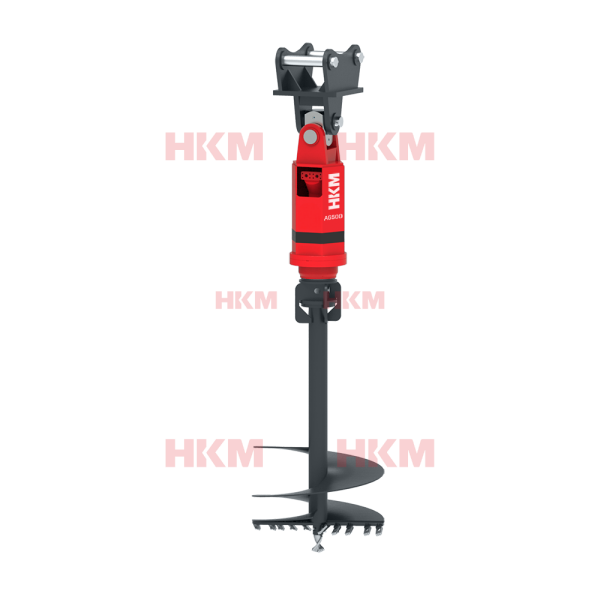

HKM AG500 – Hydraulic Augers Set


Maximum Power for Mega Machines – Peak of the AG Series

The HKM AG500 Hydraulic Auger Set is the most powerful model in the AG range, developed for 20–45 ton class machines. With a massive 48,000 Nm torque output and a low-speed range of 11–30 RPM, it’s designed to drill through the toughest terrains with precision and force.

Requiring 26.6–149.3 kW of input power, 100–280 L/min oil flow, and operating at 160–320 bar, the AG500 is tailored for large-scale, high-output hydraulic systems. It features a 110 mm square shaft and supports augers from Ø300 to Ø1500 mm, making it ideal for heavy infrastructure work and mining operations.

Included in the set:

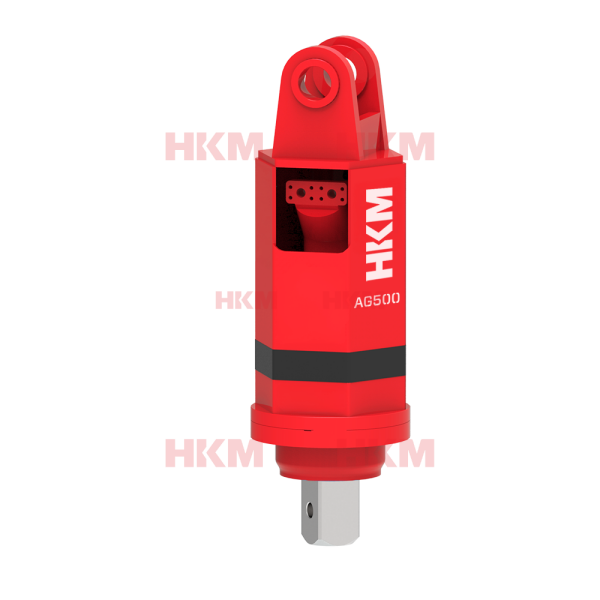

  • Hydraulic Auger Drive Unit

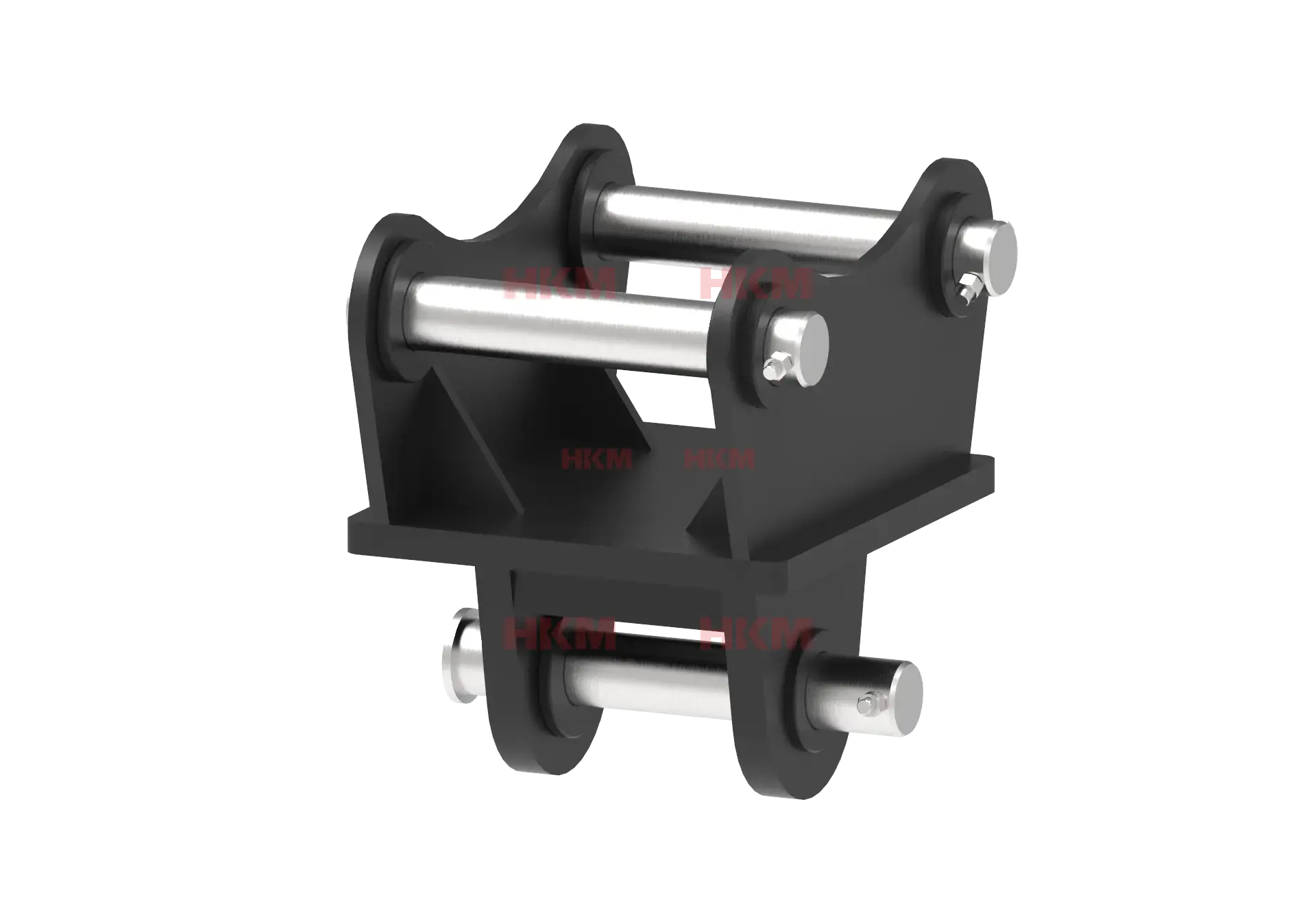

  • Mounting Bracket (Hitch), Double Pin / Single Pin / etc.

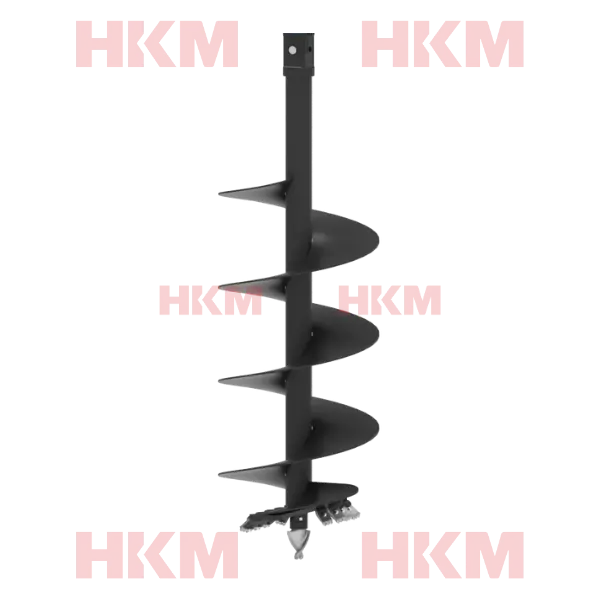

  • Auger Ø300 mm L:1200 mm

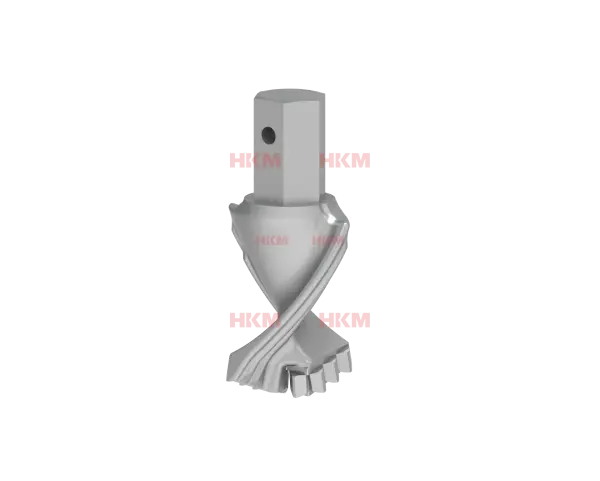

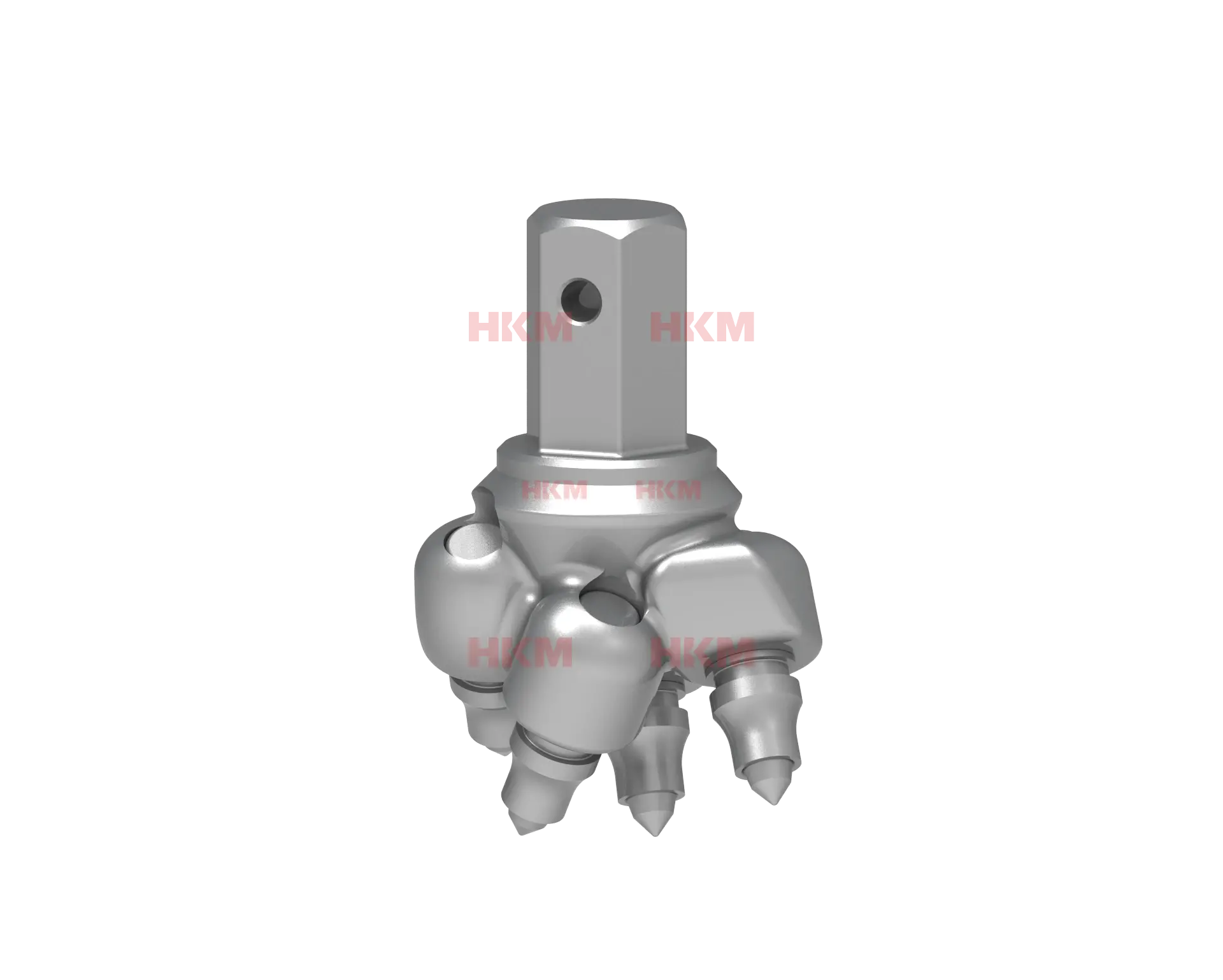

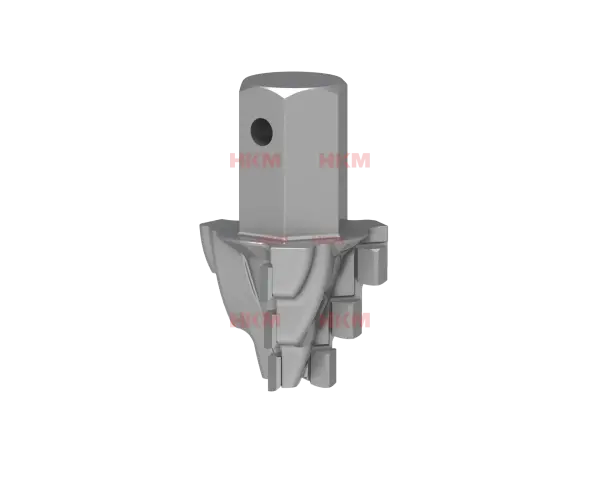

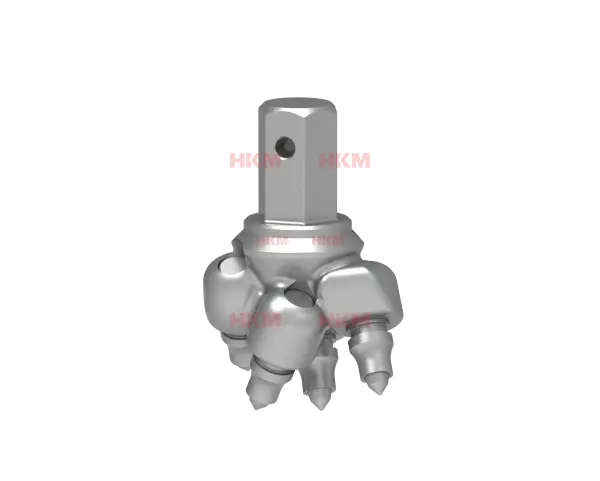

  • Pilot Drill Head
  • Hydraulic Connection Hoses
  • Carrier Connection Pins

Why Choose the AG500?

  • Industry-leading 48,000 Nm torque
  • Precision drilling in extreme jobsite conditions
  • Supports extra-large diameter augers
  • Built from industrial-grade materials for extended life
  • Perfect fit for high-tonnage carriers

Recommended for: Deep bore foundation work, transmission pole anchoring, mining and quarrying, industrial site development, and large-scale geotechnical drilling

TECHNICAL SPECIFICATIONS

SpecificationAG500
Carrier Weight (ton)20 - 45
Drive Unit Weight (kg)470
Torque (Nm)48000
Rotary Speed (RPM)11 - 30
Input Power (kW)26.6 - 149.3
Oil Flow (L/min)100 - 280
Operating Pressure (bar)160 - 320
Shaft Diameter (mm)110 (square)
Auger Diameter (mm)300 - 1500
Auger Length (mm, recm.)1750

Product Information

Warranty
Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
Delivery Information
Delivery time is 20 business days. For more information; contact info@hkm.com.tr
