HKM AG250 – Hydraulic Augers Set
Industrial-Grade Torque – Built for Serious Demands
The HKM AG250 Hydraulic Auger Set is engineered for 18–24 ton class excavators and delivers a staggering 25,000 Nm of torque to tackle the most demanding drilling tasks. Its 12–26 RPM speed range ensures steady control even with large-diameter augers.
With an oil flow requirement of 21.3–68.0 L/min and operating pressure between 160–240 bar, the AG250 is tailored for high-output hydraulic systems. Equipped with a 75 mm square shaft, it supports augers from Ø150 up to Ø1200 mm, making it ideal for infrastructure, pole foundation work, and large-scale construction projects.
Included in the set:
- Hydraulic Auger Drive Unit
- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.

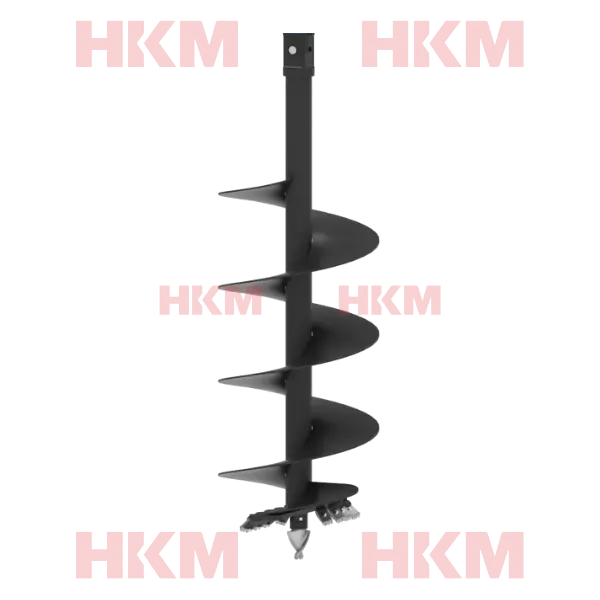

- Auger Ø300 mm L:1200 mm

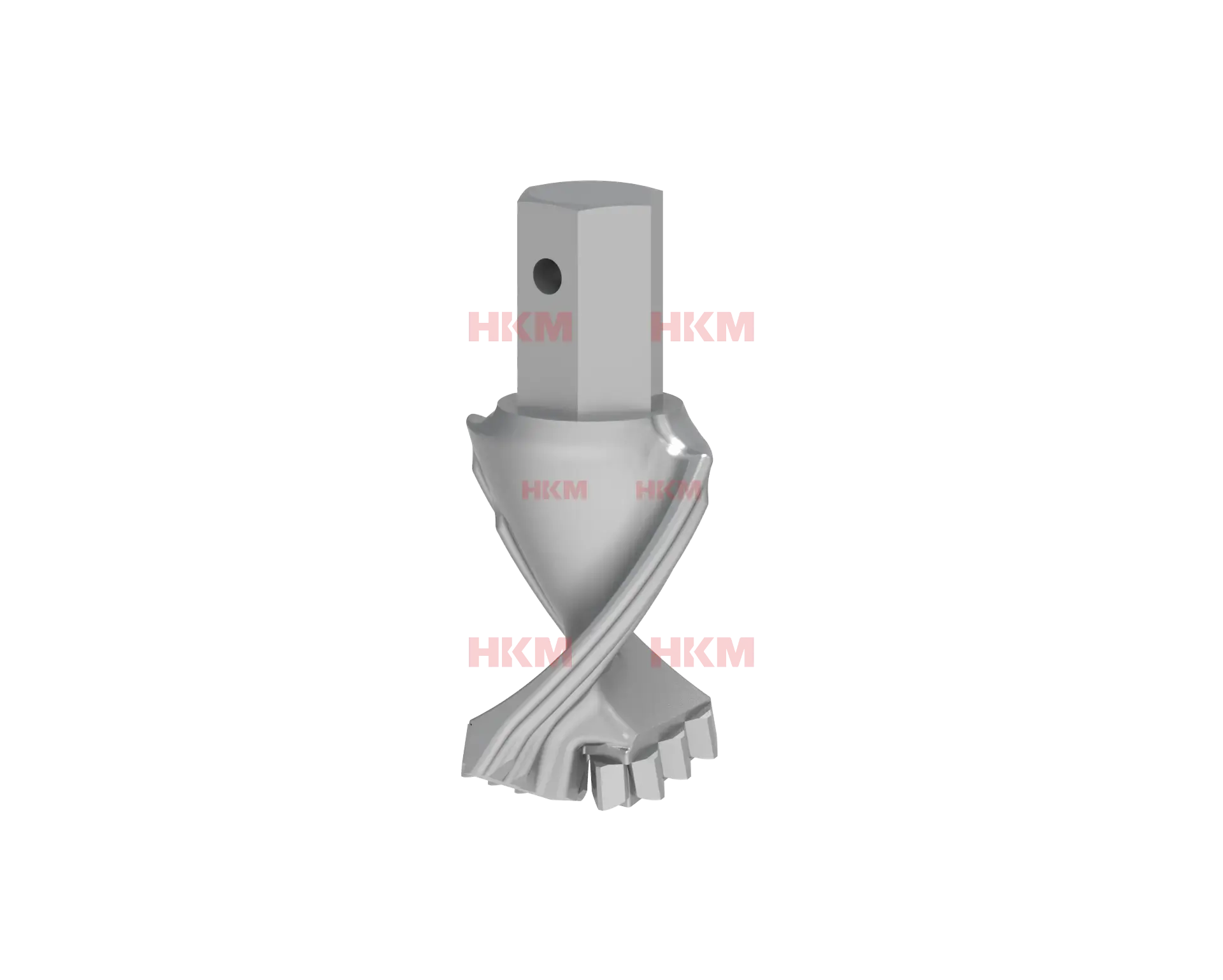

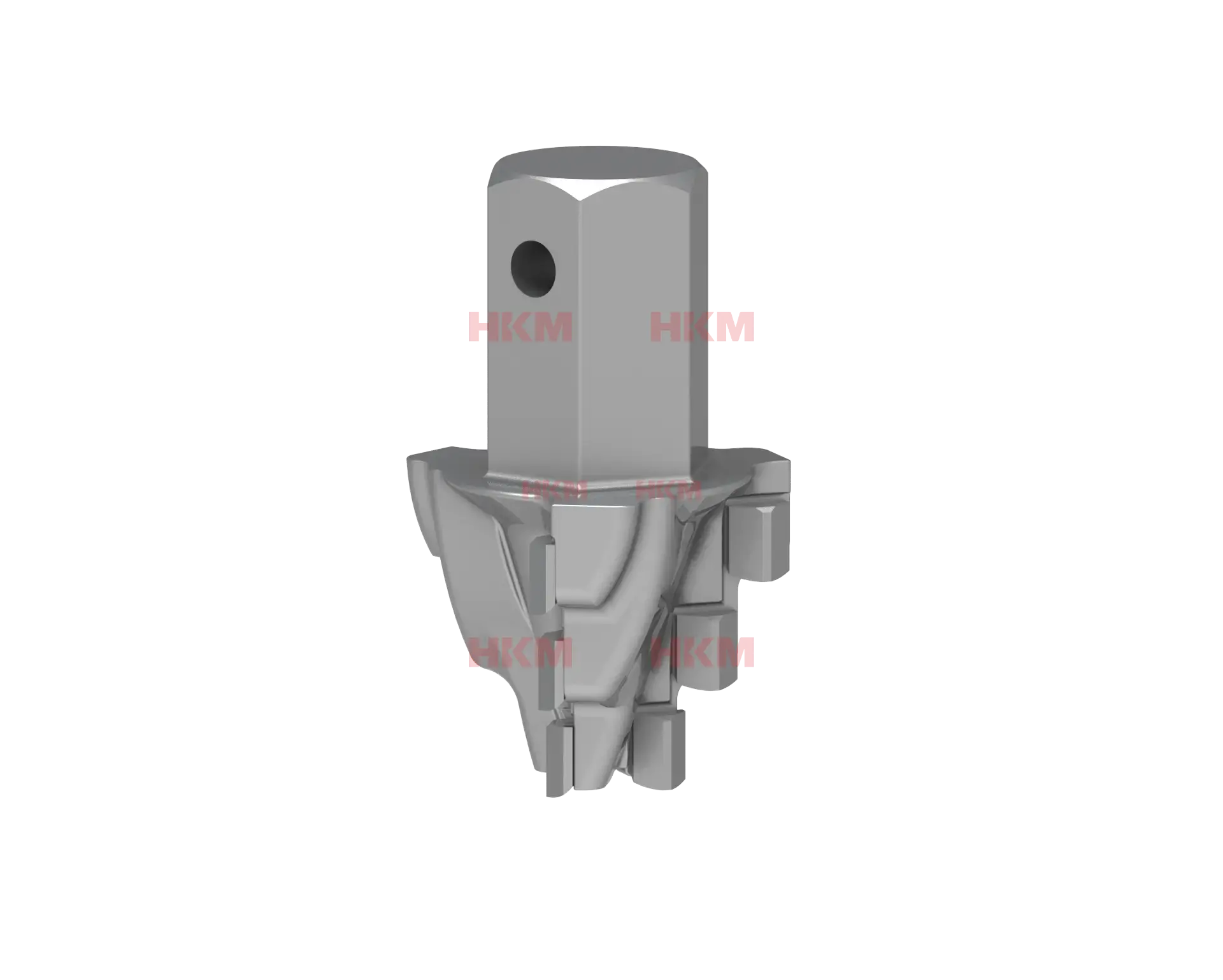

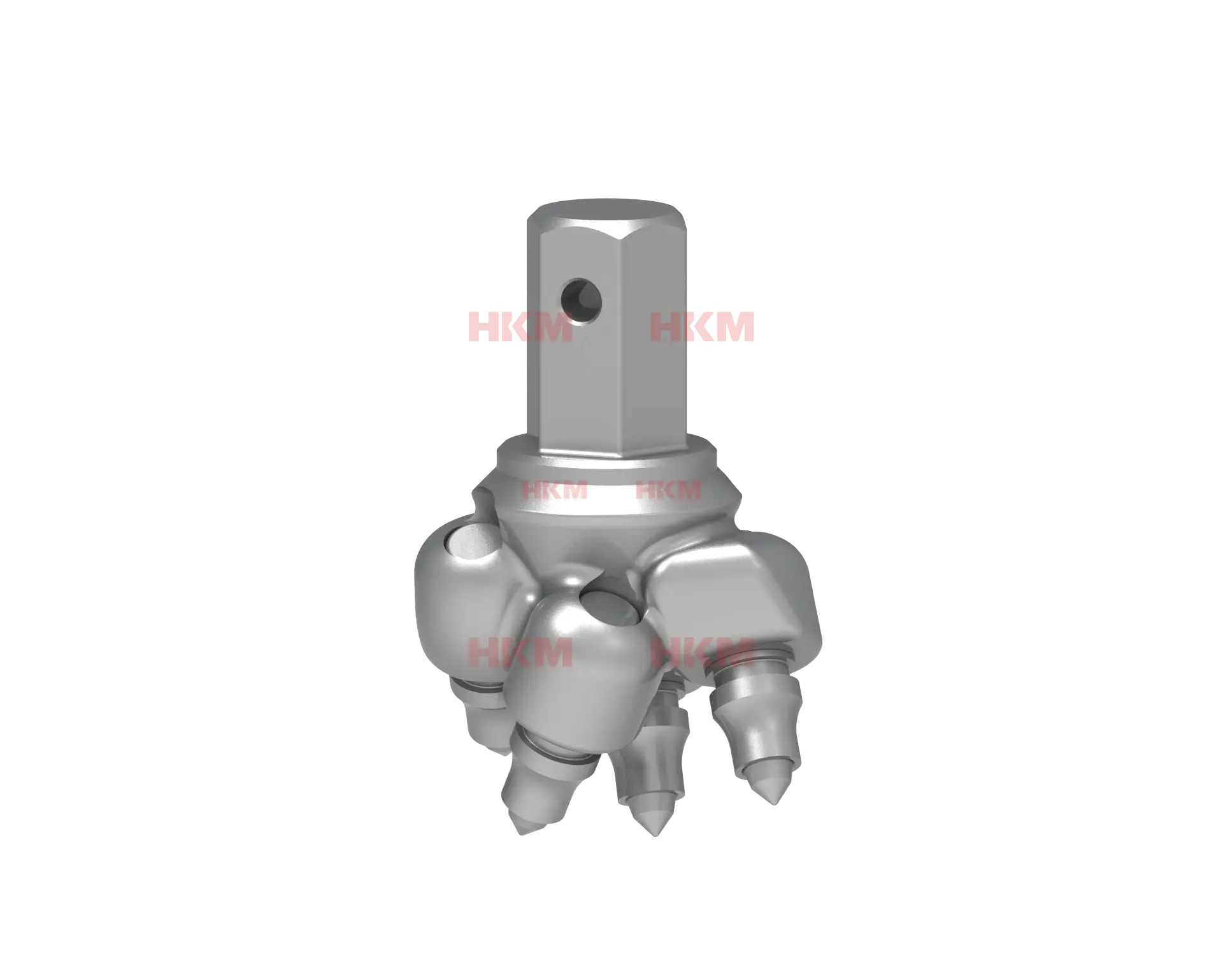

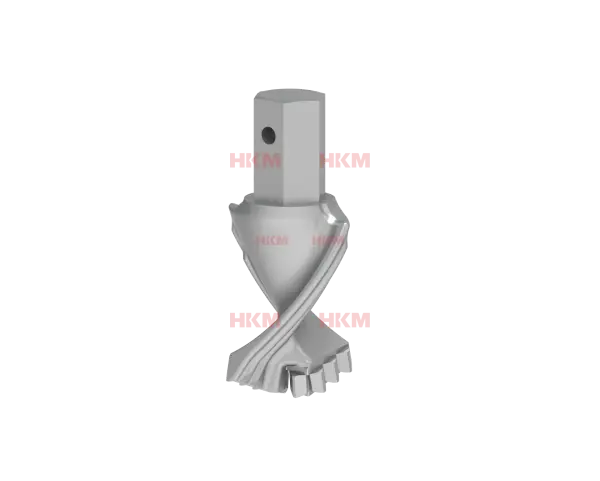

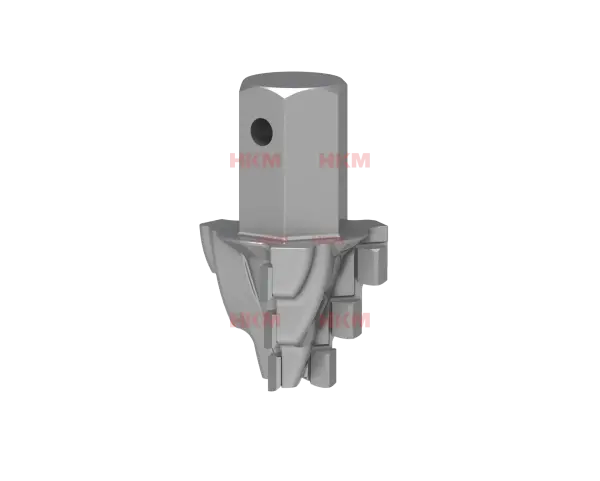

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG250?
- Immense 25,000 Nm torque output
- Handles large-diameter augers with ease
- Robust construction for long service life
- Reliable performance under extreme jobsite conditions
- Compatible with heavy-duty machines
Recommended for: Deep foundation drilling, utility pole installations, urban infrastructure, hard soil and rock penetration
TECHNICAL SPECIFICATIONS
| Specification | AG250 |
|---|---|
| Carrier Weight (ton) | 18 - 24 |
| Drive Unit Weight (kg) | 270 |
| Torque (Nm) | 25000 |
| Rotary Speed (RPM) | 12 - 26 |
| Input Power (kW) | 21.3 - 68.0 |
| Oil Flow (L/min) | 80 - 170 |
| Operating Pressure (bar) | 160 - 240 |
| Shaft Diameter (mm) | 75 (square) |
| Auger Diameter (mm) | 150 - 1200 |
| Auger Length (mm, recm.) | 1750 |
