Hydraulic Auger Set
HKM AG150 – Hydraulic Augers Set
Heavy-Duty Torque for Relentless Drilling
The HKM AG150 Hydraulic Auger Set is purpose-built for 13–17 ton machines and delivers 15,000 Nm of torque, ensuring unmatched drilling performance even in the toughest soil conditions. Its 20–43 RPM rotation speed provides stability and depth control in every application.
With an oil flow requirement of 21.3–68.0 L/min and operating pressure between 160–240 bar, the AG150 operates smoothly on high-capacity hydraulic systems. Its 75 mm square shaft supports Ø150 to Ø900 mm augers, making it ideal for infrastructure, agriculture, and heavy utility operations.
Included in the set:
- Hydraulic Auger Drive Unit
- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
- Auger Ø300 mm L:1200 mm

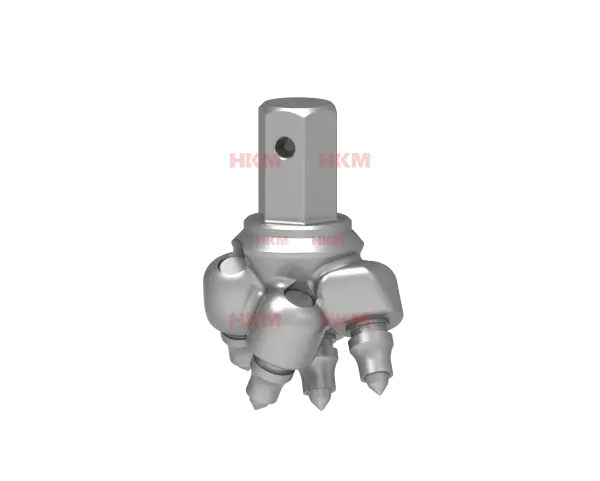

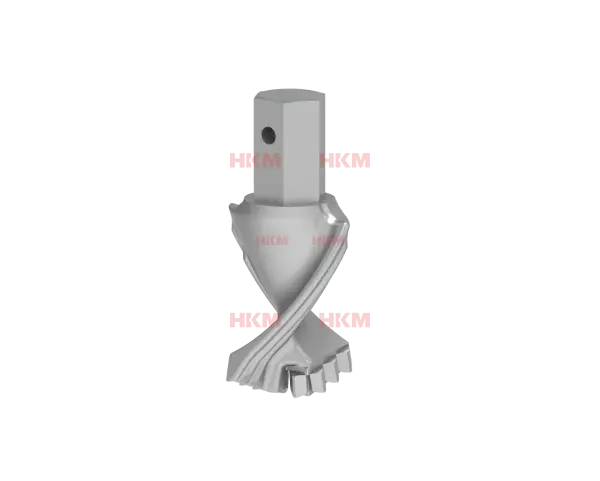

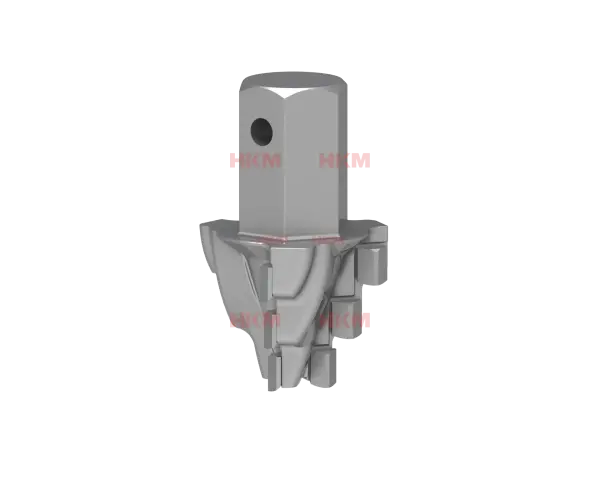

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG150?
- Outstanding 15,000 Nm torque capacity
- Built for rugged conditions and high-demand tasks
- Seamless integration with heavy machinery
- Broad auger diameter compatibility
- Low maintenance, rapid setup
Recommended for: Heavy foundation drilling, utility pole installations, geotechnical work, hard soil or rock penetration
TECHNICAL SPECIFICATIONS
| Specification | AG35 |
|---|---|
| Carrier Weight (ton) | 13 - 17 |
| Drive Unit Weight (kg) | 167 |
| Torque (Nm) | 15000 |
| Rotary Speed (RPM) | 20 - 43 |
| Input Power (kW) | 21.3 - 68.0 |
| Oil Flow (L/min) | 80 - 170 |
| Operating Pressure (bar) | 160 - 240 |
| Shaft Diameter (mm) | 75 (square) |
| Auger Diameter (mm) | 150 - 900 |
| Auger Length (mm, recm.) | 1750 |
