Hydraulic Auger Set
HKM AG35 – Hydraulic Augers Set
Optimized Torque for Compact Carriers
The HKM AG35 Hydraulic Auger Set is designed for compact excavators and machines in the 3–5 ton range. Delivering 3,500 Nm of torque and a 32–72 RPM rotary speed, it offers strong drilling performance for demanding tasks in construction, agriculture, and landscaping.
Operating at 30–70 L/min oil flow and within a 80–240 bar pressure range, the AG35 works reliably across various hydraulic systems. Its 65 mm round shaft and compatibility with auger diameters from Ø100 to Ø750 mm provide the flexibility needed for different ground types and hole sizes.
Included in the set:
- Hydraulic Auger Drive Unit

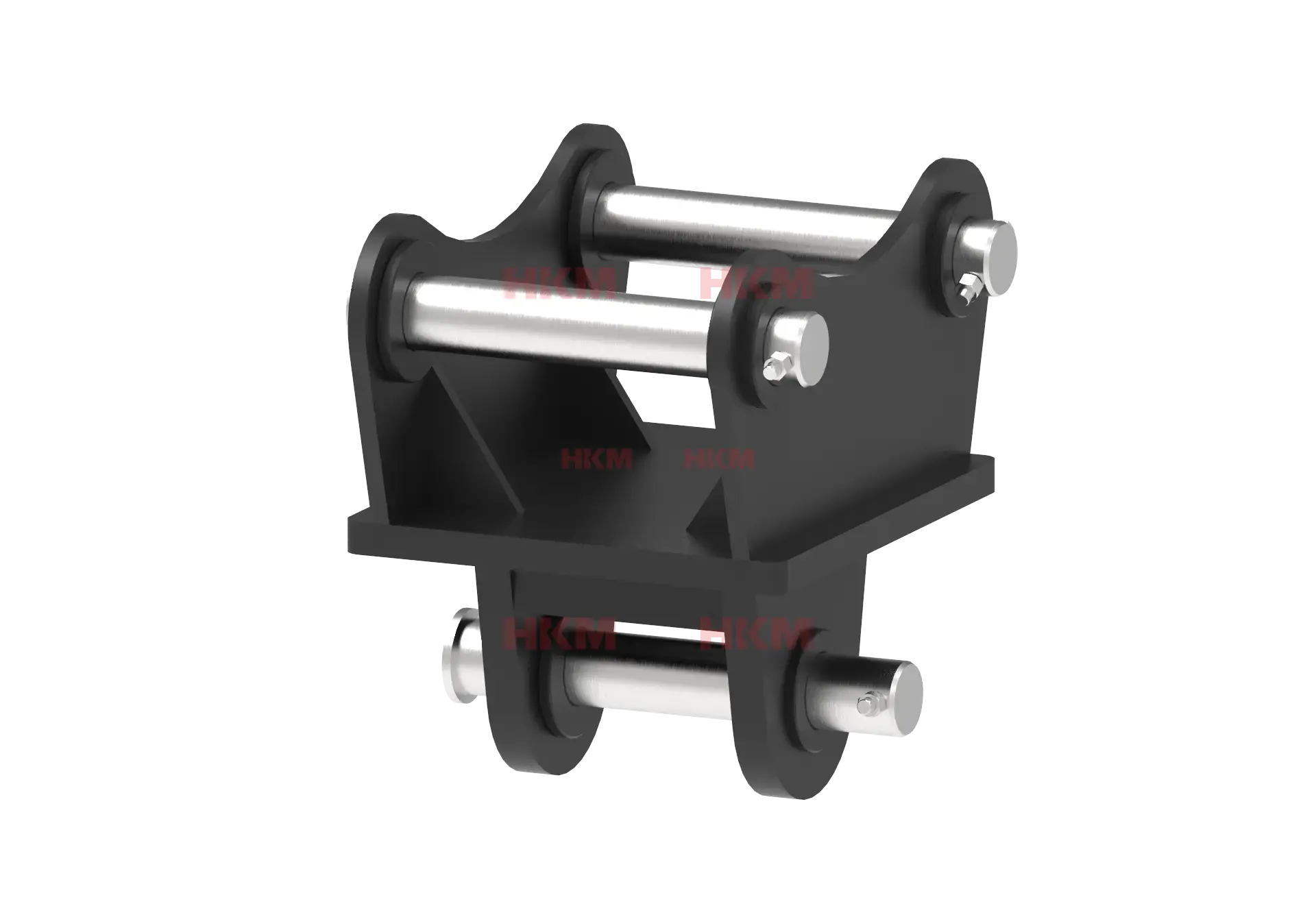

- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
- Auger Ø300 mm L:1200 mm

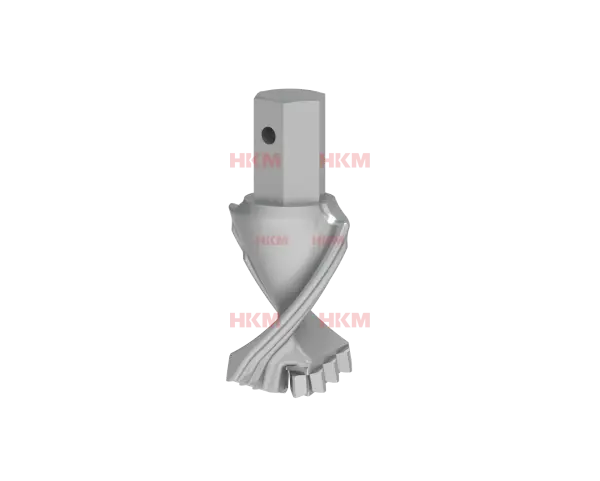

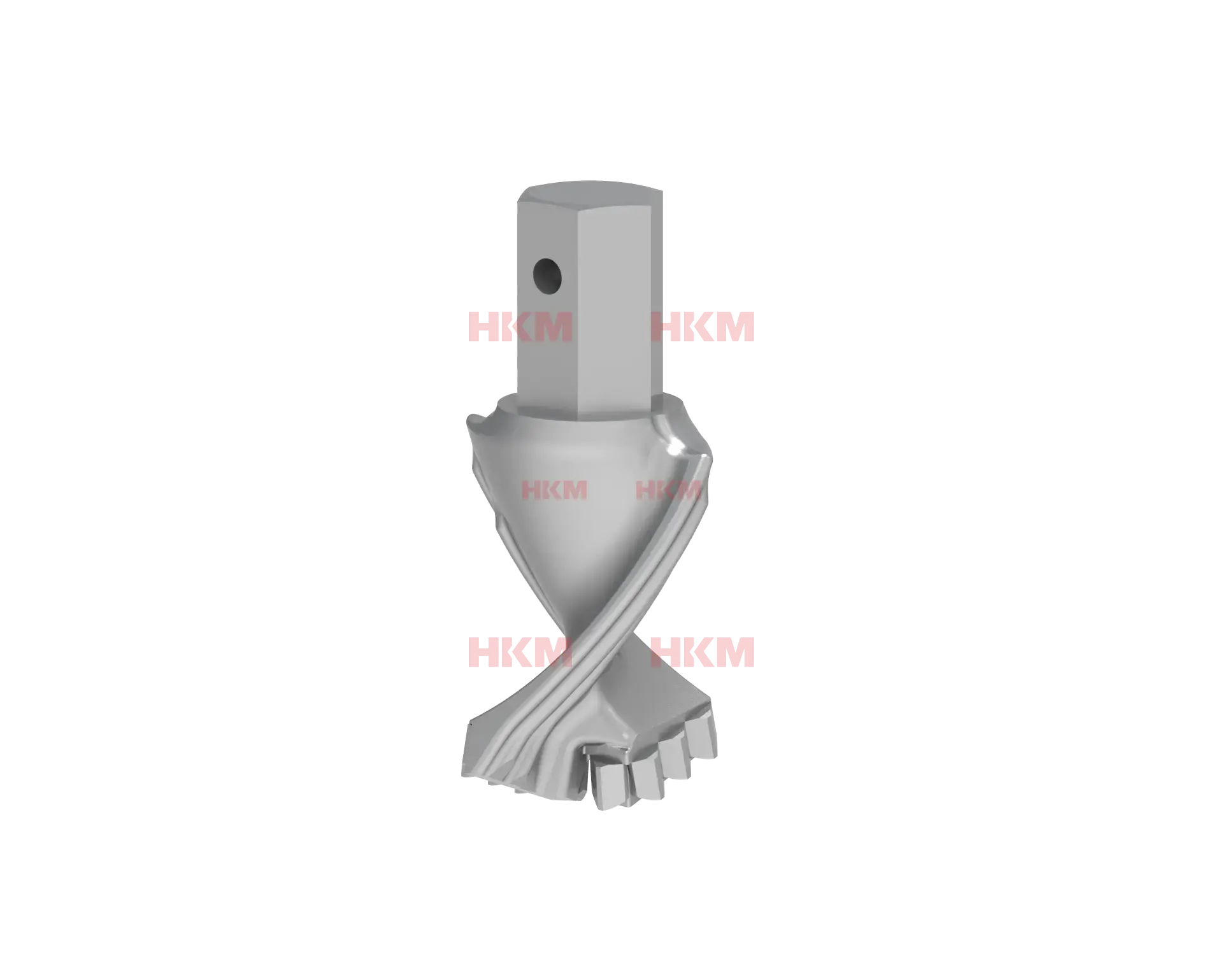

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG35?
- Strong torque for compact to mid-size machines
- Robust, wear-resistant auger system
- Compatible with various ground conditions
- Fast installation, low maintenance
- Reliable performance at a great value
Recommended for: Light construction, fencing, landscaping, utility work, agricultural projects
TECHNICAL SPECIFICATIONS
| Specification | AG35 |
|---|---|
| Carrier Weight (ton) | 3 - 5 |
| Drive Unit Weight (kg) | 71 |
| Torque (Nm) | 3500 |
| Rotary Speed (RPM) | 32 - 72 |
| Input Power (kW) | 4.0 - 28.0 |
| Oil Flow (L/min) | 30 - 70 |
| Operating Pressure (bar) | 80 - 240 |
| Shaft Diameter (mm) | 65 (round) |
| Auger Diameter (mm) | 100 - 750 |
| Auger Length (mm, recm.) | 1200 |
