Brand:HKMModel:AG50HKM code:T6446

HKM AG50 Hydraulic Auger Set

The HKM AG50 is built for 5–7 ton excavators, delivering 5,000 Nm torque and 40–75 L/min oil flow. Its 75 mm square shaft enables strong and controlled drilling in tough soil, while supporting Ø150–600 mm augers for foundation and pole installation tasks.

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

HKM AG50 – Hydraulic Augers Set


High Torque Drilling Solution for Mid-Size Machines

The HKM AG50 Hydraulic Auger Set is designed for excavators and carriers in the 5–7 ton range, offering serious power for demanding drilling operations. With 5,000 Nm of torque and a 28–64 RPM speed range, it delivers stable and strong performance in a wide variety of jobs.

Running efficiently at 40–75 L/min oil flow and 80–240 bar pressure, the AG50 integrates seamlessly with standard mid-range hydraulic systems. Its 75 mm square shaft ensures strength, while auger compatibility from Ø150 to Ø600 mm allows for versatility in tough ground types.

Included in the set:

  • Hydraulic Auger Drive Unit
  • Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
  • Auger Ø300 mm L:1200 mm

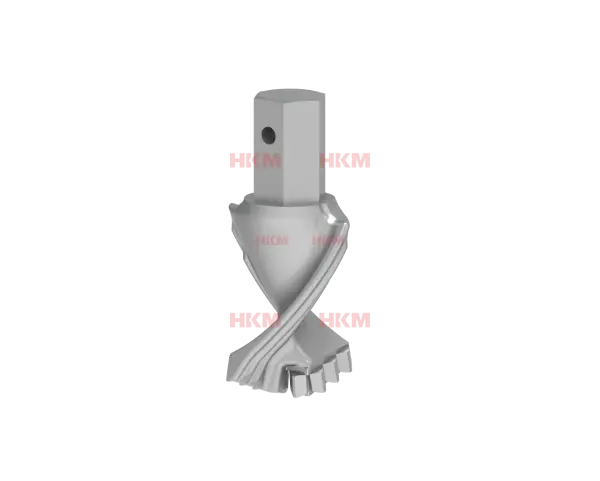

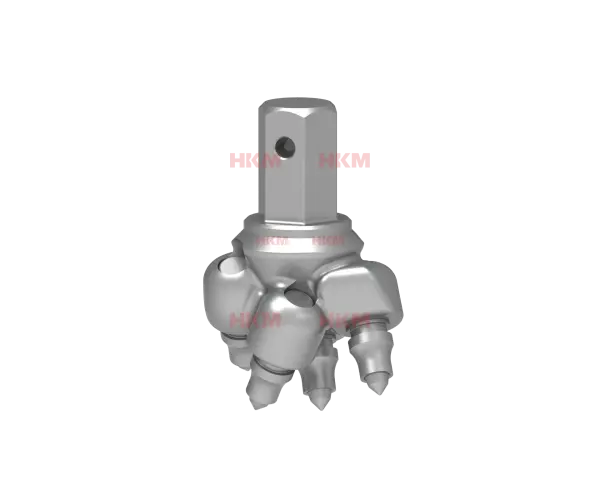

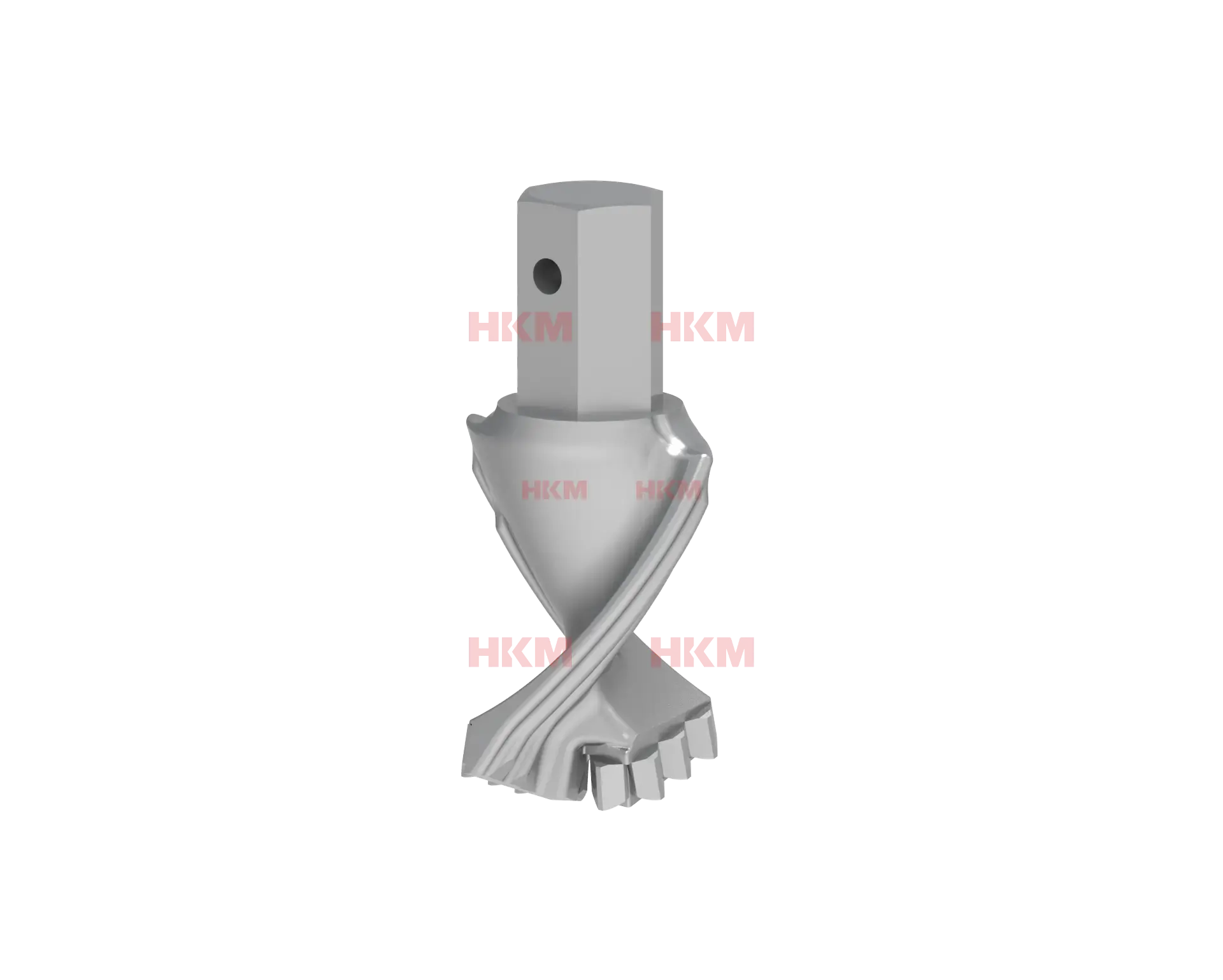

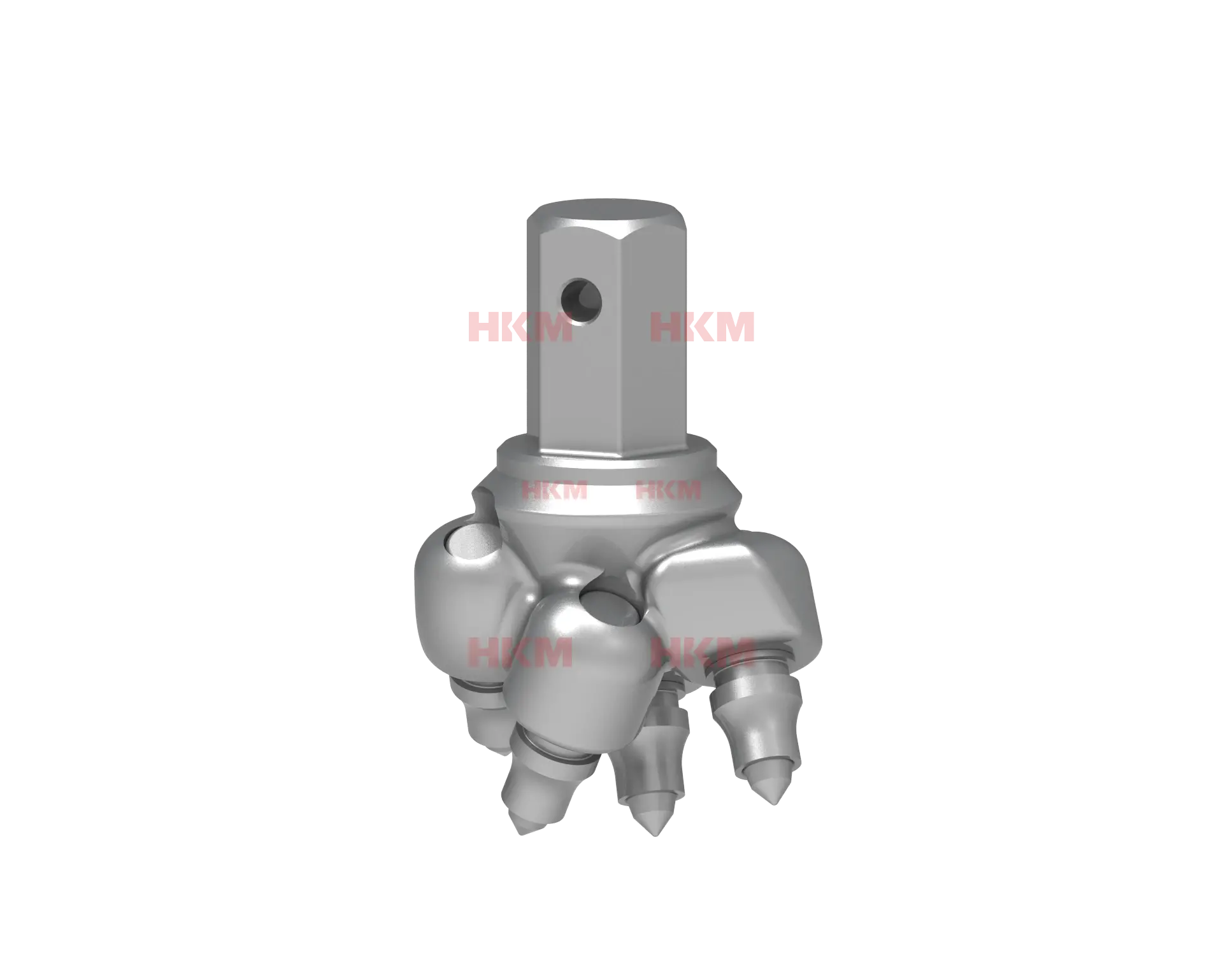

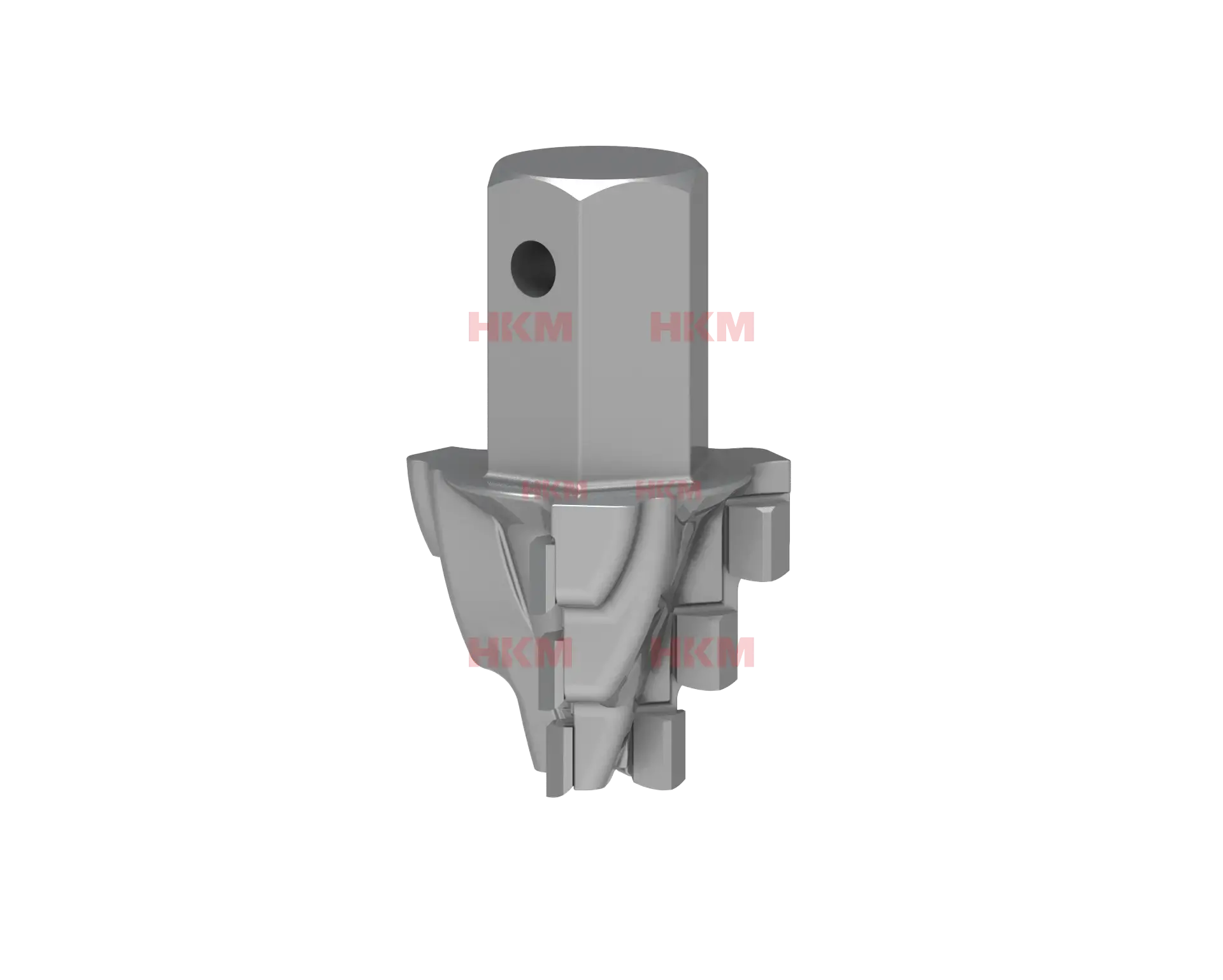

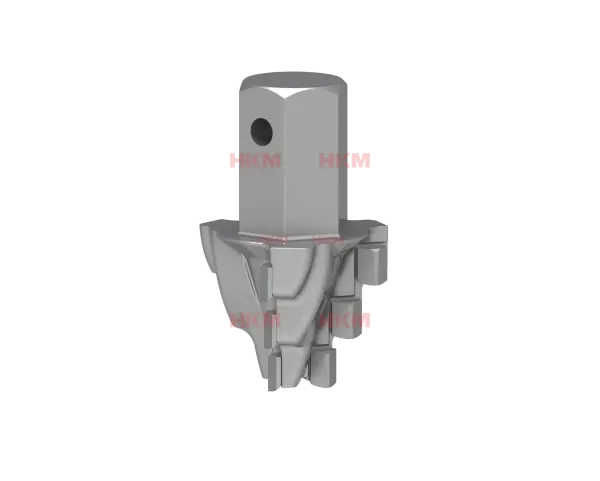

  • Pilot Drill Head
  • Hydraulic Connection Hoses
  • Carrier Connection Pins

Why Choose the AG50?

  • Heavy-duty torque output for powerful drilling
  • Square shaft for added durability under load
  • Flexible use across wide auger diameters
  • Long-lasting build with minimal maintenance
  • Suitable for various ground types and job scopes

Recommended for: Infrastructure works, urban landscaping, large post installation, soil sampling, farming tasks

TECHNICAL SPECIFICATIONS

SpecificationAG35
Carrier Weight (ton)5 - 7
Drive Unit Weight (kg)108
Torque (Nm)5000
Rotary Speed (RPM)28 - 64
Input Power (kW)5.3 - 32.0
Oil Flow (L/min)40 - 75
Operating Pressure (bar)80 - 240
Shaft Diameter (mm)75 (square)
Auger Diameter (mm)150 - 600
Auger Length (mm, recm.)1500

Product Information

Warranty
Covered by a 1-year warranty. For more information; contact info@hkm.com.tr
Delivery Information
Delivery time is 10 business days. For more information; contact info@hkm.com.tr
