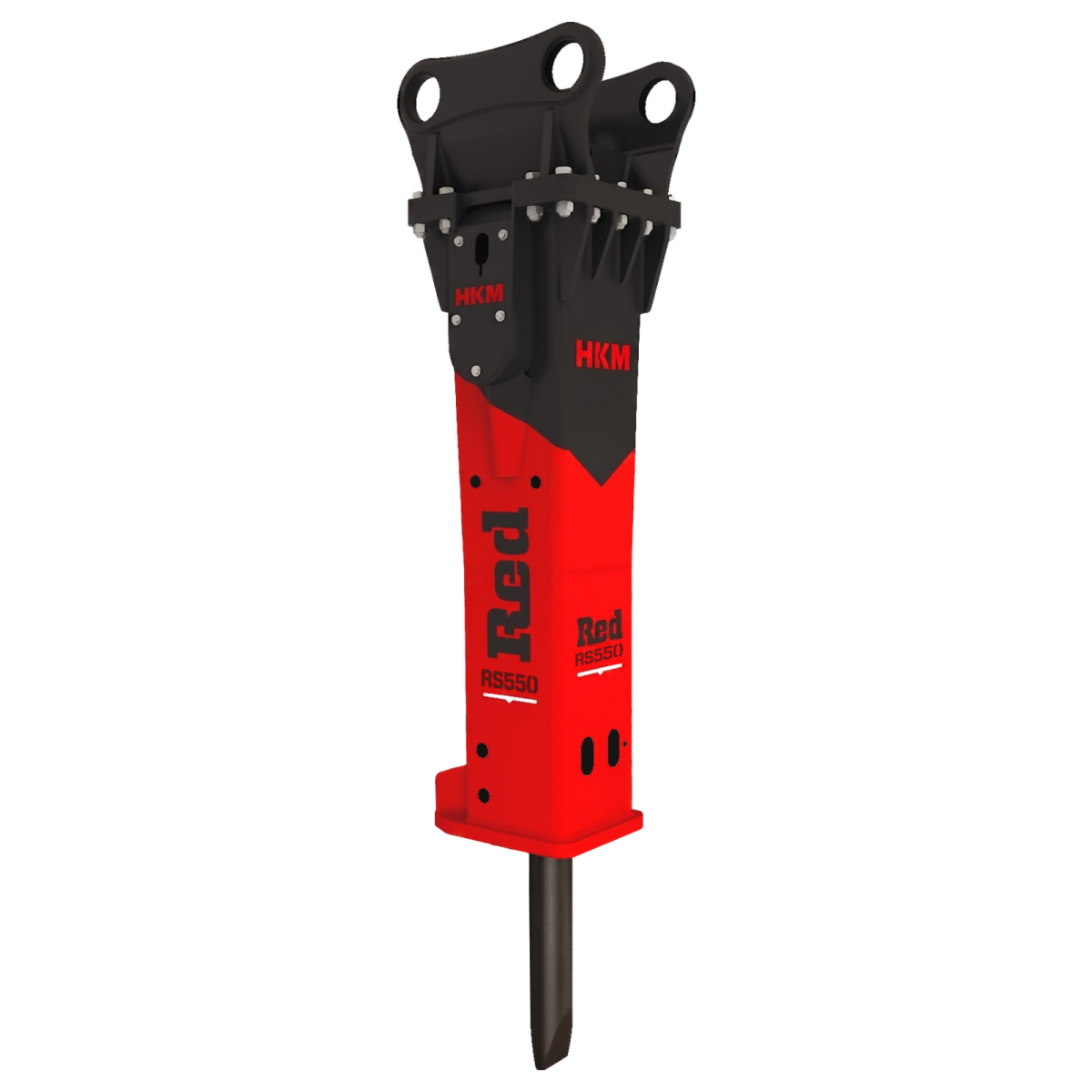

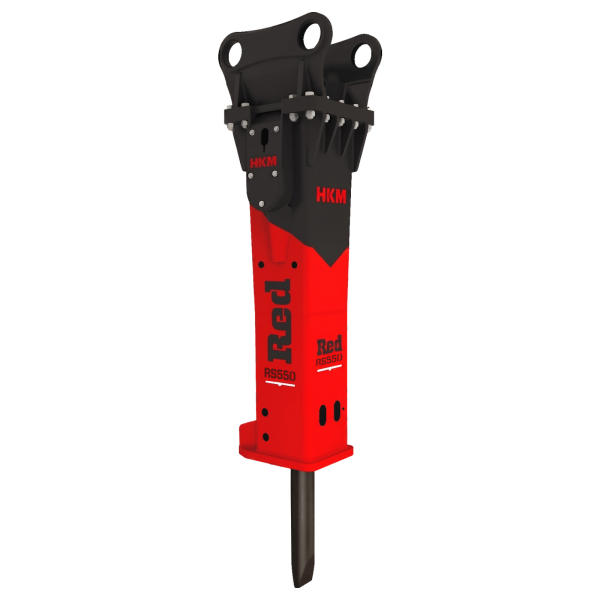

HKM RS550 Hydraulic Breaker
Brand:HKMModel:RS550HKM code:T42474

HKM RS550 Hydraulic Breaker

HKM RS550 delivers maximum breaking power for 50-75 ton giant excavators with its 5500 kg weight and Ø180 mm tool diameter, making it the ideal choice for marble quarries and large dam construction sites.

  • Massive breaking power customized for 50-75 ton machines
  • 180 mm tool diameter for deep cracking effect
  • Nut-free short tie rod system for long service life
  • High-capacity accumulator for stable operation

Prices are visible to partners

Sign in to see partner pricing and order online.

We usually reply within 1 business day.

Ask on WhatsApp
How to order from abroad

Order online (partners)

  1. Apply as a partner.
  2. Once we approve your account, partner prices appear on the site.
  3. Add products to your cart and pay securely by credit card or bank transfer.
  4. Our sales team contacts you about the shipping method and cost.

Request a quote

  1. Send a quote request.
  2. We email the price (EXW Istanbul), stock and lead time, usually within 1 business day.
  3. On approval: proforma invoice and payment by bank transfer (USD or EUR).
  4. Shipping by weight: DHL Express, air freight or road/sea freight.

HKM RS550 Hydraulic Breaker

HKM RED LINE - RS550: THE HEAVYWEIGHT CHAMPION FOR MASSIVE PROJECTS

HKM Red Line RS550 is a heavy-duty power unit engineered for 50-75 ton class excavators, designed to tackle the most demanding tasks on the field.
It delivers the destructive power and durability required especially for marble quarries, dam constructions, and mass rock excavation projects.

RS550: HARD ROCKS STAND NO CHANCE

Operating with a pressure of 130-150 bar and an oil flow of 250-305 l/min, the RS 550 converts hydraulic energy into immense breaking force.
Its massive 5,500 kg operating weight and 180 mm tool diameter ensure continuous progress even in the hardest grounds like granite and basalt where competitors fail.

The integrated high-capacity accumulator dampens pressure spikes, protecting the excavator pump while guaranteeing consistent high performance with every strike.
The nut-free short tie rod technology prevents vibrations from damaging the main body in such high-power applications and minimizes maintenance costs.

The dust and impact-resistant solid housing design keeps internal mechanisms safe even in the dustiest and toughest job site conditions, extending the machine's life.
RS550 is not just a breaker; it is the most reliable partner for your heavy industrial projects.



KEY FEATURES

  • Massive breaking power customized for 50-75 ton machines
  • 180 mm tool diameter for deep cracking effect
  • Nut-free short tie rod system for long service life
  • High-capacity accumulator for stable operation
  • Optimized impact frequency for marble and stone quarries



INCLUDED IN THE SET

  • Hydraulic Breaker Machine
  • Mounting Bracket
  • Breaker Tools (1 pcs Chisel Tool, 1 pcs Moil Point Tool)
  • Hydraulic Connection Hoses
  • Carrier Connection Pins
  • Tool Box



STANDARD EQUIPMENTS

  • High Pressure Accumulator
  • High Efficiency & Performance
  • Dust Protection
  • Solid Housing Design
  • Vibration Absorption
  • Noise Absorption
  • Nut-Free Tie Rod Design



OPTIONAL EQUIPMENTS

  • Automatic Lubrication
  • Underwater Equipment
  • Reinforced Housing
  • Fast Attachment Replacement Device



TECHNICAL SPECIFICATIONS

Operational Weight (kg)5500
Carrier Weight (ton)50-75
Tool Diameter (mm)180
Operating Pressure (bar)130-150
Oil Flow (lt/min)250-305
Impact Rate (bpm)300-400

Frequently Asked Questions (FAQ)

Q: What machines is the RS 550 compatible with?
A: The RS 550 is designed for large-scale excavators ranging from 50 to 75 tons. It is ideal for primary machines used in marble quarries and massive earthmoving projects.

Q: Is it suitable for use in marble quarries?
A: Yes, the RS 550 possesses the high breaking and cracking power specifically needed in marble and natural stone quarries. Its 180mm tool diameter and 5500kg weight are optimized for these tasks.

Q: Is spare part supply easy?
A: As HKM, we keep all spare parts (chisels, pistons, bushings, diaphragms, etc.) for our Red Series breakers in stock and dispatch them quickly.

🤔 Not Sure Which Breaker Fits?

If you are unsure whether this breaker is the right match for your machine, we are here to help.

Simply send us your excavator's brand and model details. Our expert team will identify the perfect match for you.

Contact Us Now →

Product Information

Weight (kg)
5500
Warranty
All hydraulic breakers you purchase are protected by a 1-Year Comprehensive Warranty against manufacturing defects. At HKM, we prioritize the continuity of your business with our dedicated after-sales support. In case of any malfunction, we are at your side with our extensive spare parts inventory and expert technical team.
Delivery Information
Shipping costs are excluded from the price, but we are here to assist with logistics! Upon placing your order, we research the fastest and most economical shipping method to your location (domestic or international) and present it for your approval. Your products are carefully packaged to ensure they arrive safely without damage.
