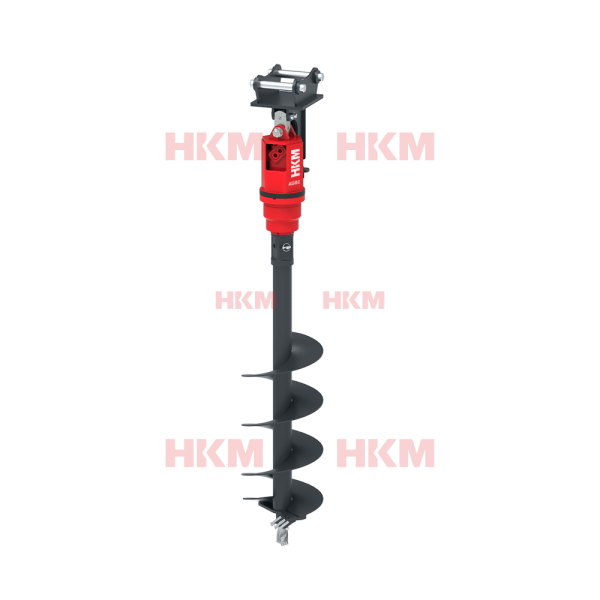

HKM AG80 – Hydraulic Augers Set
Heavy-Duty Drilling for Medium-to-Large Excavators
The HKM AG80 Hydraulic Auger Set is built for 8–12 ton class machines, delivering strong torque and reliable performance for tough job sites. It provides 8,000 Nm of torque with a 28–60 RPM speed range, ideal for large-diameter hole drilling across a variety of terrain.
Compatible with 60–135 L/min oil flow and 80–240 bar operating pressure, the AG80 integrates easily into higher-capacity hydraulic systems. The robust 75 mm square shaft supports augers ranging from Ø150 to Ø900 mm, offering versatility for construction, utility, and agricultural operations.
Included in the set:

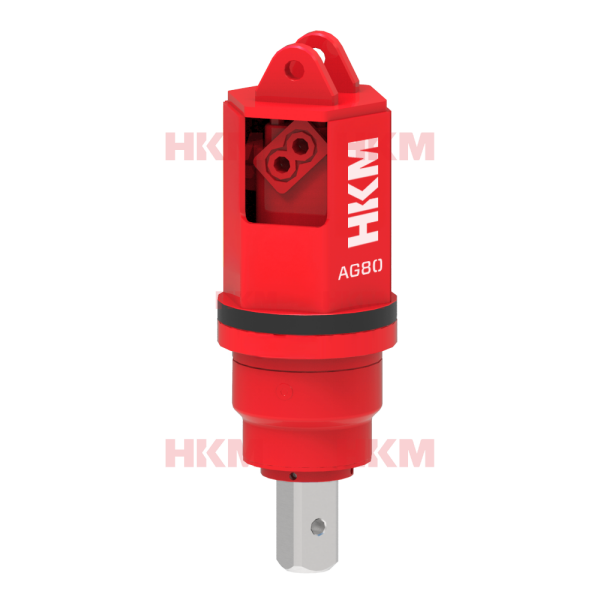

- Hydraulic Auger Drive Unit

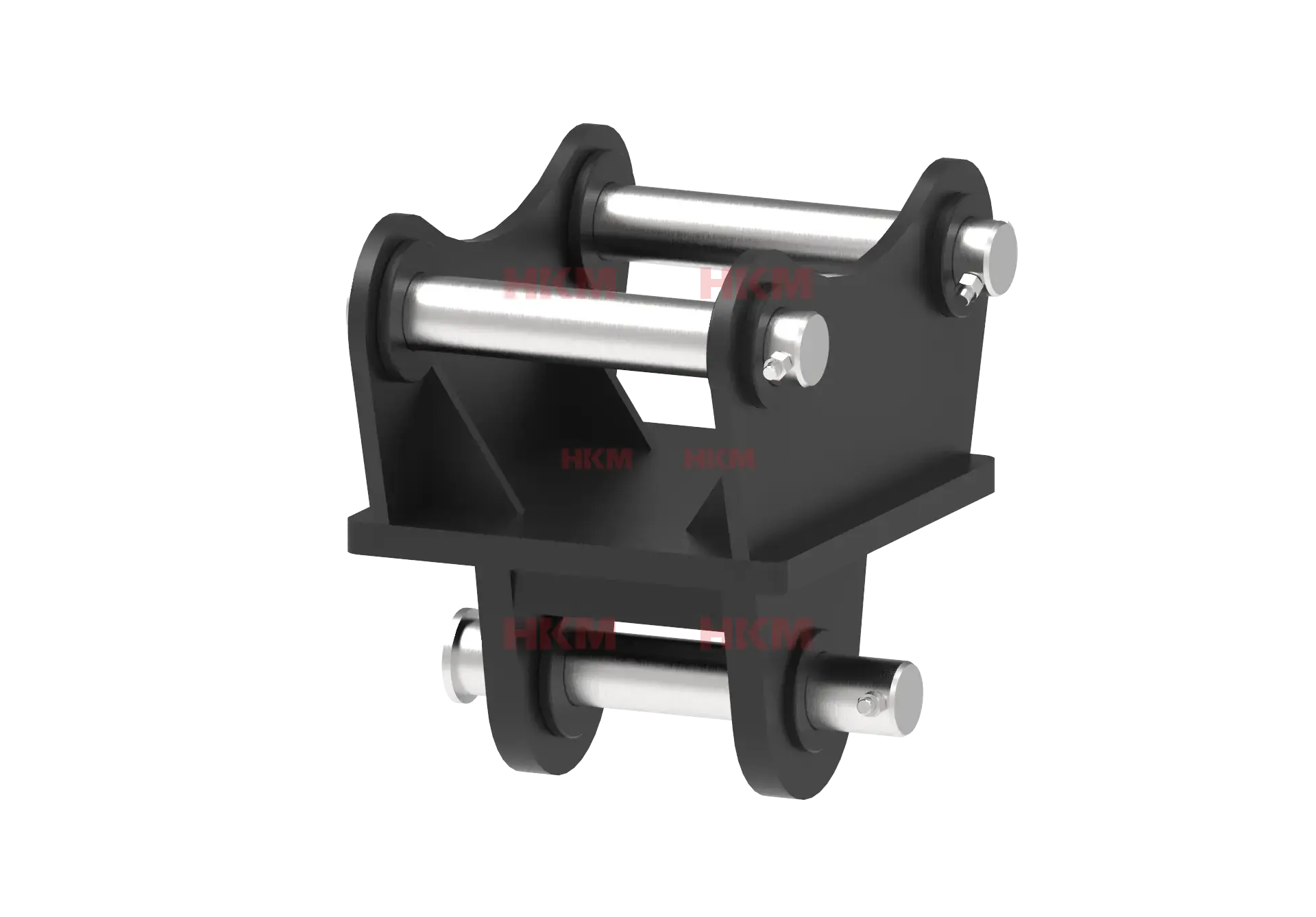

- Mounting Bracket (Hitch), Double Pin / Single Pin / etc.
- Auger Ø300 mm L:1200 mm

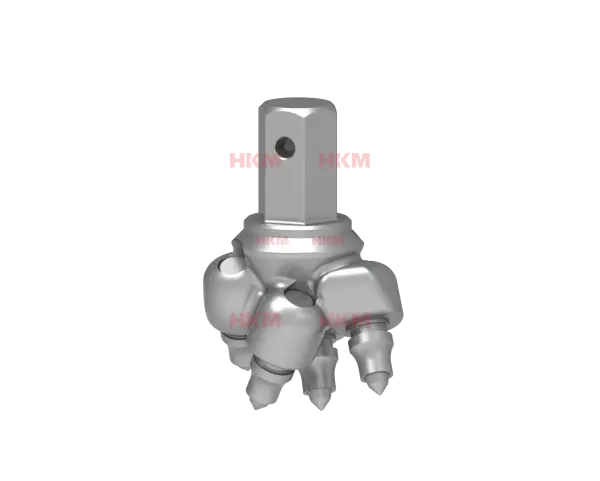

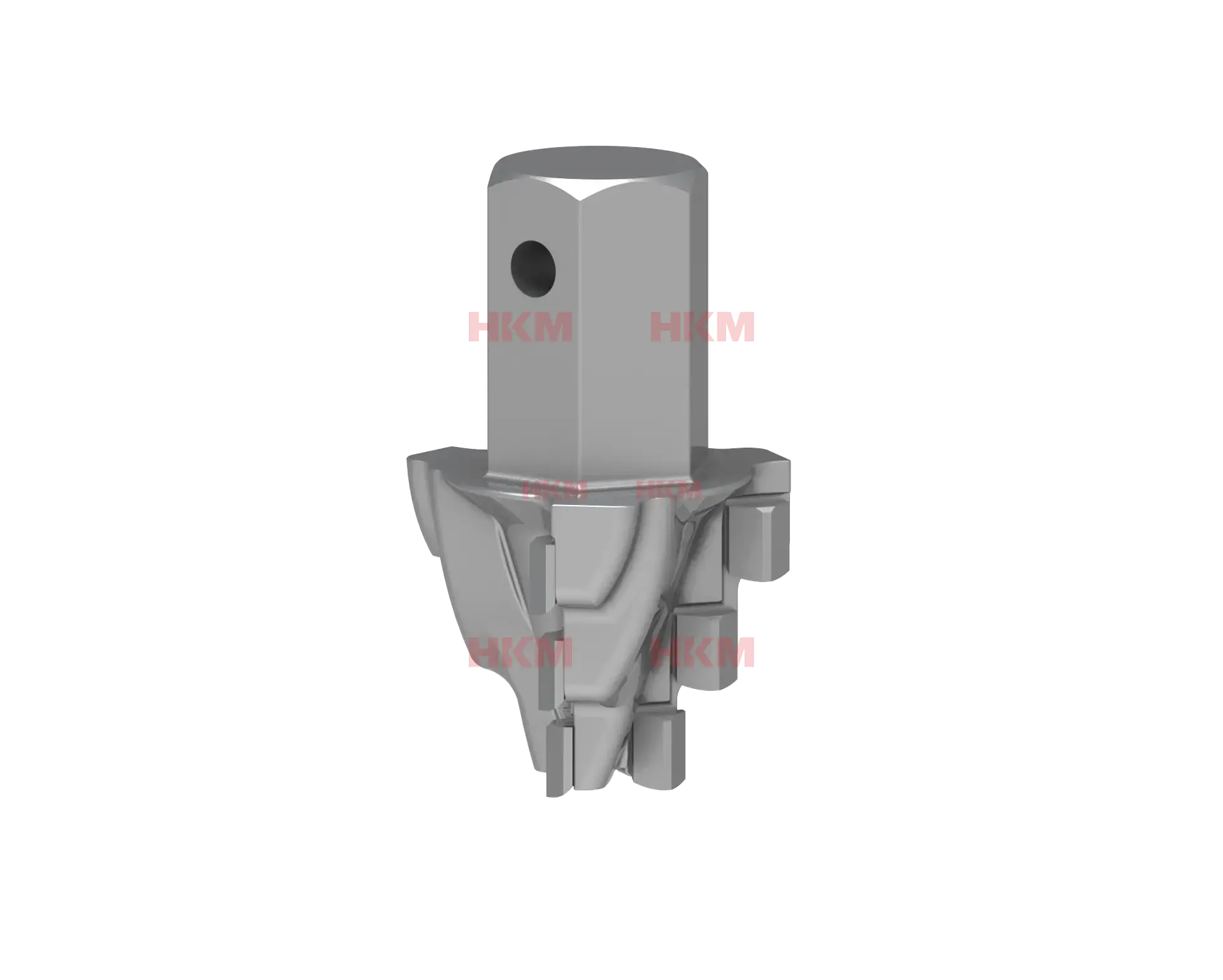

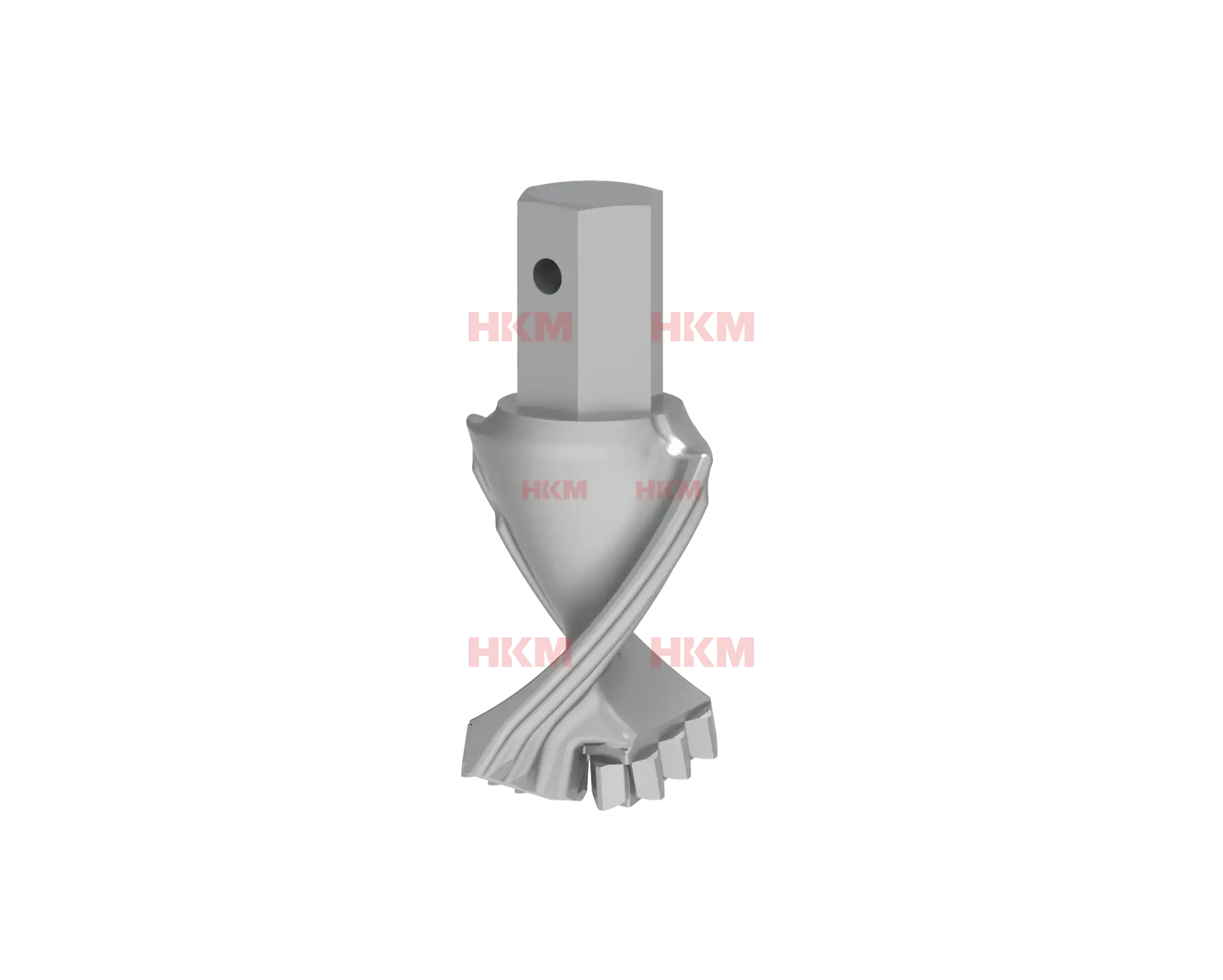

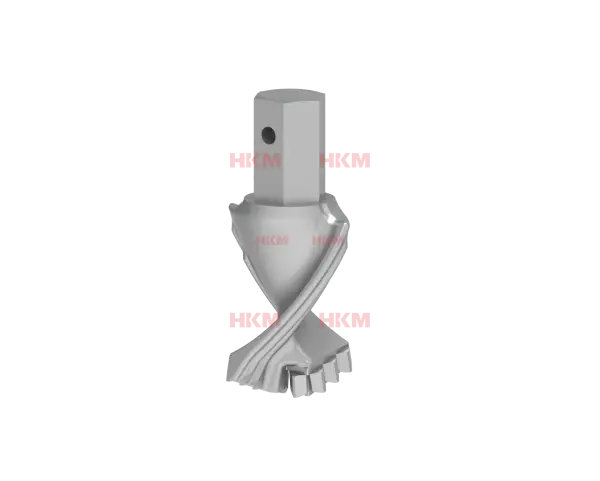

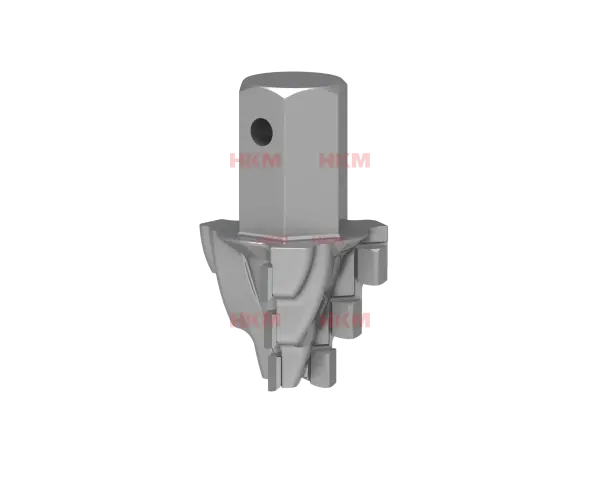

- Pilot Drill Head
- Hydraulic Connection Hoses
- Carrier Connection Pins
Why Choose the AG80?
- Exceptional torque for demanding drilling tasks
- Rugged square shaft for strength and durability
- Compatibility with wide-diameter augers
- Low-speed precision with high power output
- Ideal for varied ground types and heavy-duty usage
Recommended for: Utility installation, forestry, large fence & pole foundations, deep landscaping, agricultural applications
TECHNICAL SPECIFICATIONS
| Specification | AG35 |
|---|---|
| Carrier Weight (ton) | 8 - 12 |
| Drive Unit Weight (kg) | 115 |
| Torque (Nm) | 8000 |
| Rotary Speed (RPM) | 28 - 60 |
| Input Power (kW) | 8.0 - 54.0 |
| Oil Flow (L/min) | 60 - 135 |
| Operating Pressure (bar) | 80 - 240 |
| Shaft Diameter (mm) | 75 (square) |
| Auger Diameter (mm) | 150 - 900 |
| Auger Length (mm, recm.) | 1500 |
