MSB MS 550HHydraulic Breaker
Part code: 2210091101146

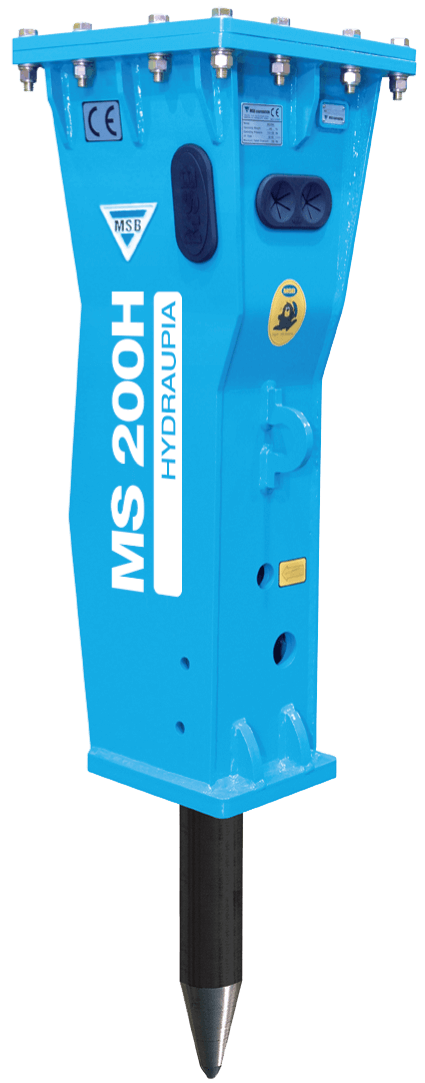

MSB MS 200H Hydraulic Breaker (Box Type)
MSB MS 200H (Silent/Box Type) is specially designed for noise-sensitive zones and urban jobsites.
- Silent Operation: Specially insulated fully enclosed body minimizes noise level.
- Protected Structure: Box housing protects the internal power cell from external impacts and dust.
- Urban Specialist: Eco-friendly breaking solution for machines between 2 and 6 tons.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login

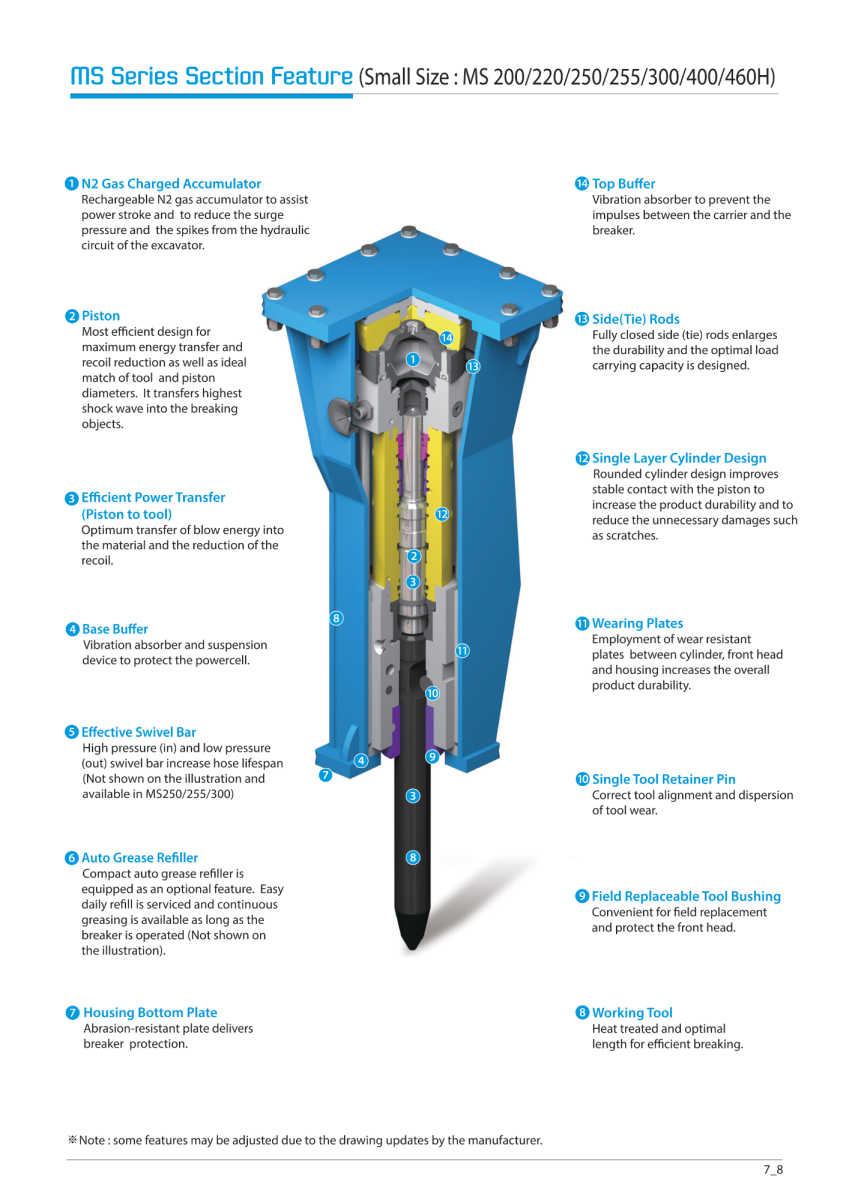

Product Features and Advantages
As the silent member of the MSB Small Series, MS 200H Box Type is preferred especially in areas with noise restrictions such as hospitals, schools and night work zones. The box housing design both insulates sound and protects the breaker's power cell against external factors like armor.
- ✅ Silent Technology: Box-type body design equipped with noise-reducing plates.
- ✅ N2 Gas-Charged Accumulator: Supports breaker impact power and absorbs hydraulic fluctuations.
- ✅ Full Protection: Box housing keeps the piston and cylinder group away from dust and impacts.
- ✅ All-in-One Type of Upper Bushing & Thrust Ring: Special bushing structure providing easy maintenance and increased durability.
- ✅ Single-Stage Cylinder: Offers low operating cost with fewer parts.
- ✅ Optimized Tool Alignment: The single wedge system ensures correct tool alignment.

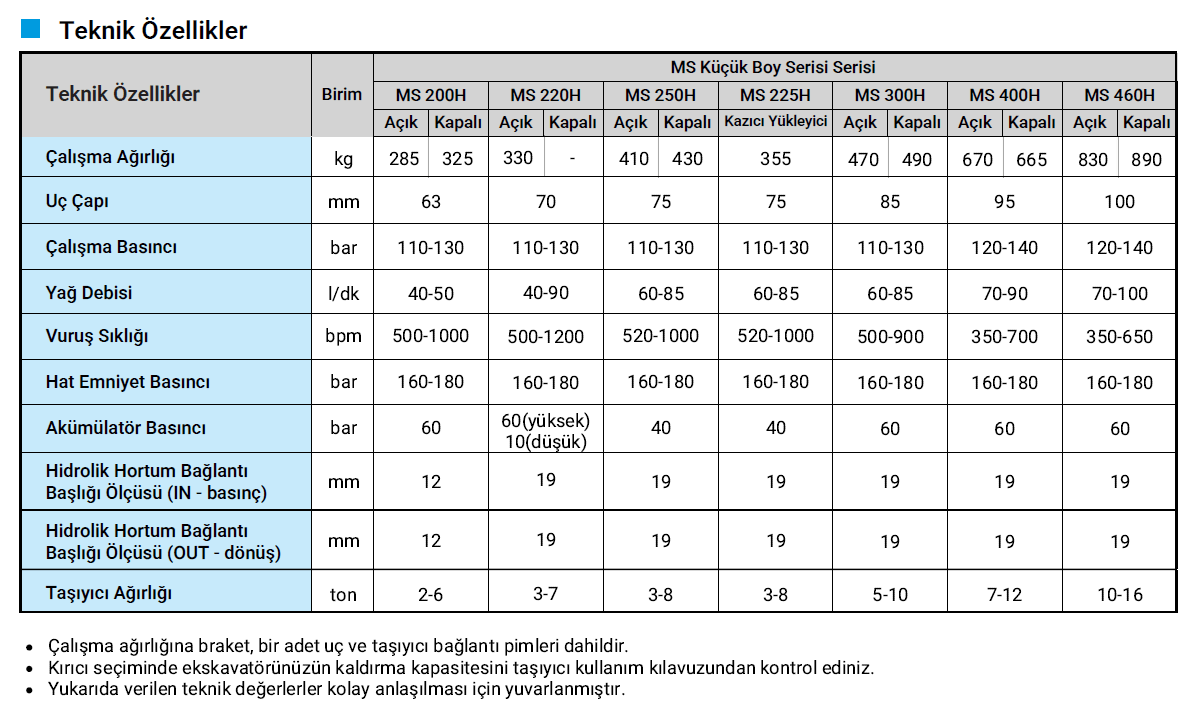

Technical Specifications (MS 200H Box Type)
| Feature | Unit | Values |
|---|---|---|
| Operating Weight (Box Type) | kg | 325 |
| Tool Diameter | mm | 63 |
| Operating Pressure | bar | 110 - 130 |
| Oil Flow | l/min | 40 - 50 |
| Impact Rate | bpm | 500 - 1000 |
| Line Relief Pressure | bar | 160 - 180 |
| Accumulator Pressure | bar | 60 |
| Hose Connection (Inlet/Outlet) | mm | 12 / 12 |
| Suitable Carrier (Excavator) | ton | 2 - 6 |
HYDRAULIC BREAKER SET CONTENT
- Hydraulic Breaker
- Mounting Bracket
- Breaker Tools (1 Chisel, 1 Moil Point)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box

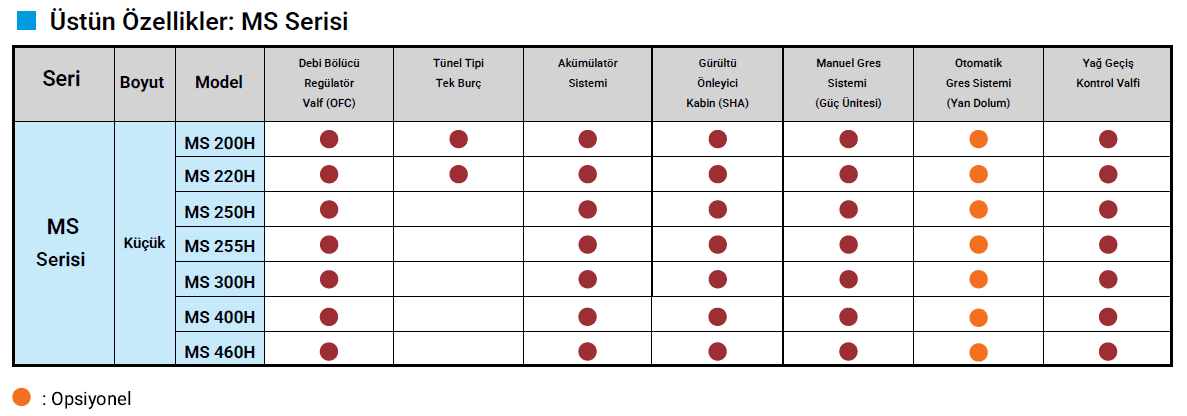

MS 200H Superior Features
| Feature | Status |
|---|---|
| Oil Flow Control (OFC) Valve | ✔ Available (Standard) |
| All-in-One Type of Upper Bushing & Thrust Ring | ✔ Available (Standard) |
| Accumulator System | ✔ Available (Standard) |
| Soundproof Housing Application (SHA) | ✔ Available (Standard) |
| Manual Autogrease System I (Powercell) | ✔ Available (Standard) |
| Autogrease System II (Side Mounted Refiller) | 🟠 Optional |
| Easy Pass Valve (Oil Traffic Control) | ✔ Available (Standard) |
Product Information
- Weight (kg)
- 325
- Warranty
- 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
- Delivery Information
- Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
