MSB MS 550HHydraulic Breaker
Part code: 2210091101146

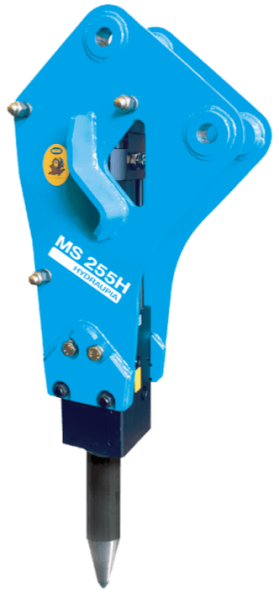

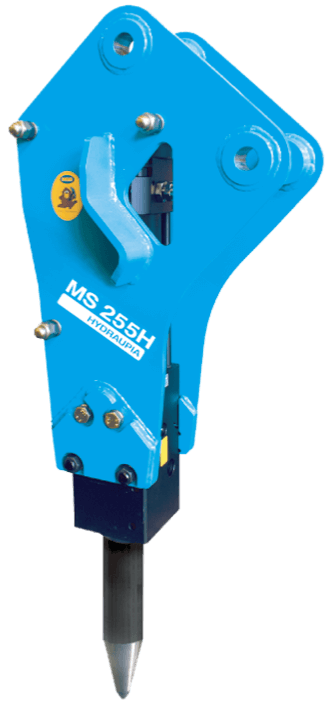

MSB MS 255H Hydraulic Breaker
MSB MS 255H has a special body design that perfectly matches the folding boom structure of backhoe loader machines.
- Backhoe Loader Compatibility: Optimized for the transport position of backhoe loaders.
- Powerful Performance: Provides effective breaking in the 3-8 ton class with a 75 mm tool diameter.
- Lightweight Structure: Maintains machine balance with 355 kg weight.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login
Product Features and Advantages
MS 255H unlike standard excavator breakers, is designed with a banana-type or special bracket structure suitable for the rear boom geometry and folded travel position of backhoe loaders. This allows your machine to work with maximum efficiency in both excavation and breaking jobs.

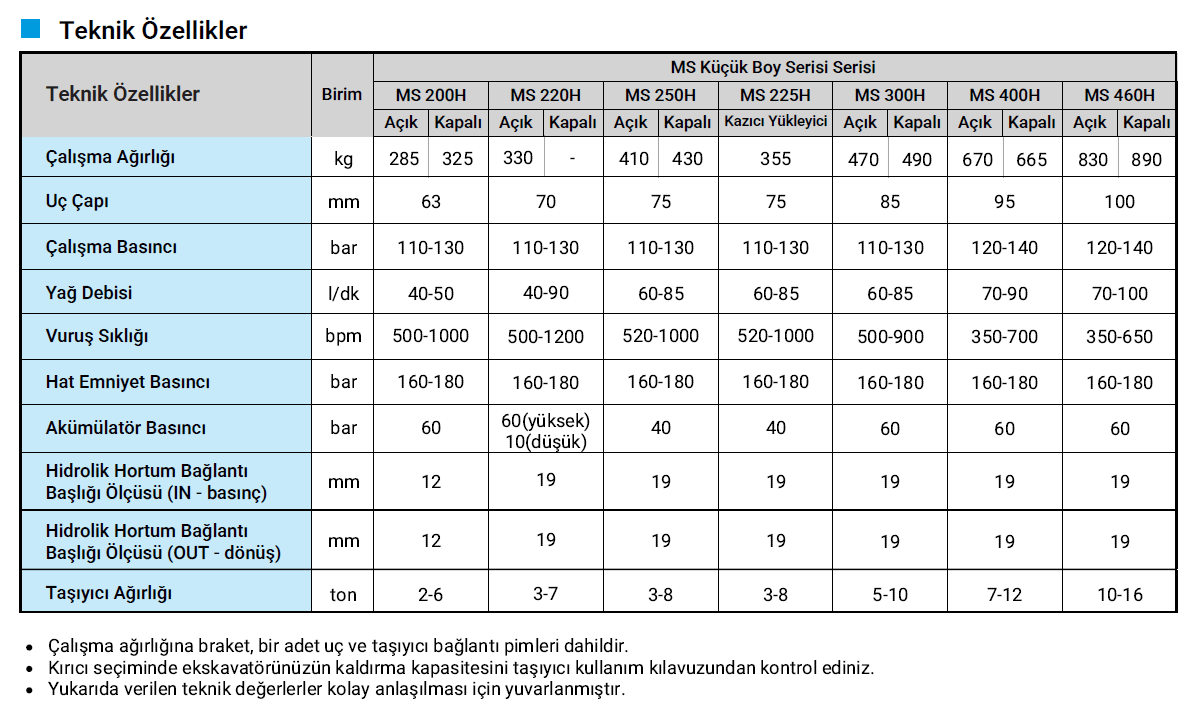

Technical Specifications (MS 255H)
| Feature | Unit | Values |
|---|---|---|
| Operating Weight | kg | 355 |
| Tool Diameter | mm | 75 |
| Operating Pressure | bar | 110 - 130 |
| Oil Flow | l/min | 60 - 85 |
| Impact Rate | bpm | 520 - 1000 |
| Line Relief Pressure | bar | 160 - 180 |
| Accumulator Pressure | bar | 40 |
| Hose Connection (Inlet/Outlet) | mm | 19 / 19 |
| Suitable Carrier | ton | 3 - 8 |

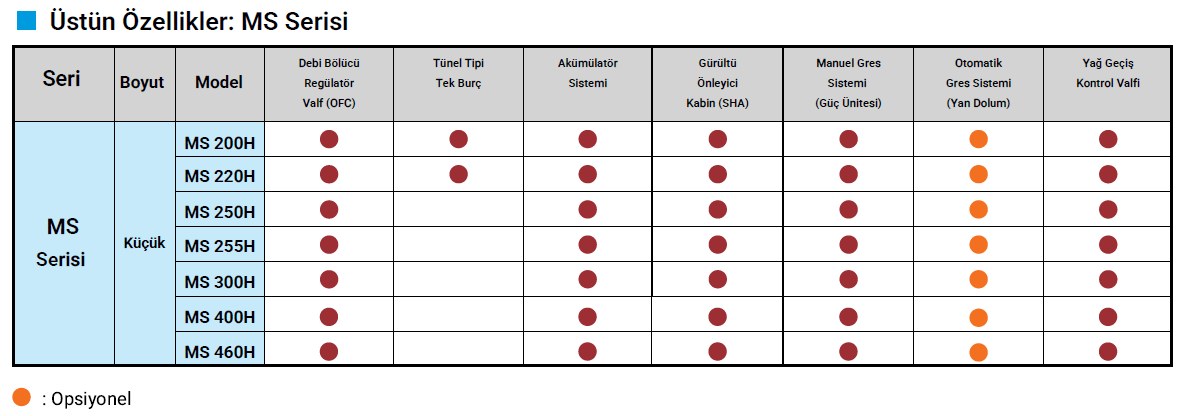

MS 255H Superior Features
| Feature | Status |
|---|---|
| Oil Flow Control (OFC) Valve | ✔ Available (Standard) |
| Accumulator System | ✔ Available (Standard) |
| Soundproof Housing Application (SHA) | ✔ Available (Standard) |
| Manual Autogrease System I (Powercell) | ✔ Available (Standard) |
| Autogrease System II (Side Mounted Refiller) | 🟠 Optional |
| Easy Pass Valve (Oil Traffic Control) | ✔ Available (Standard) |
Product Information
- Weight (kg)
- 355
- Warranty
- 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
- Delivery Information
- Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
