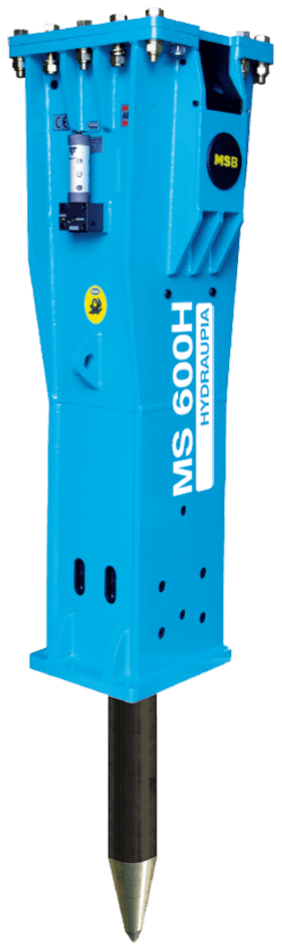

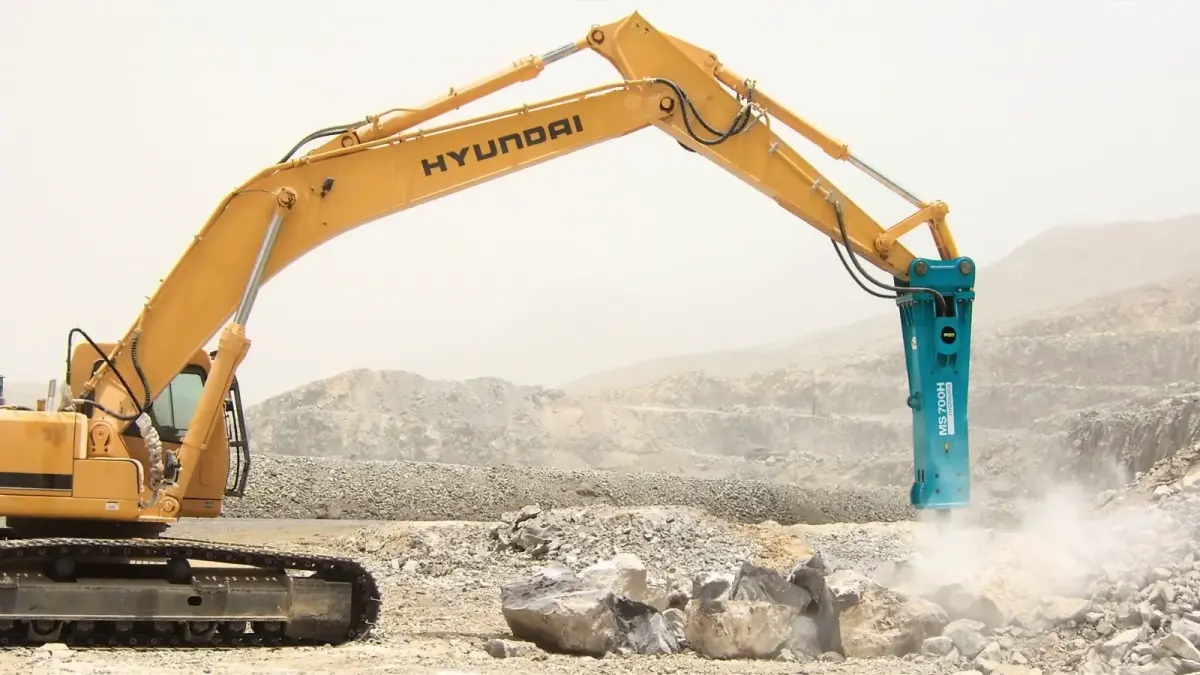

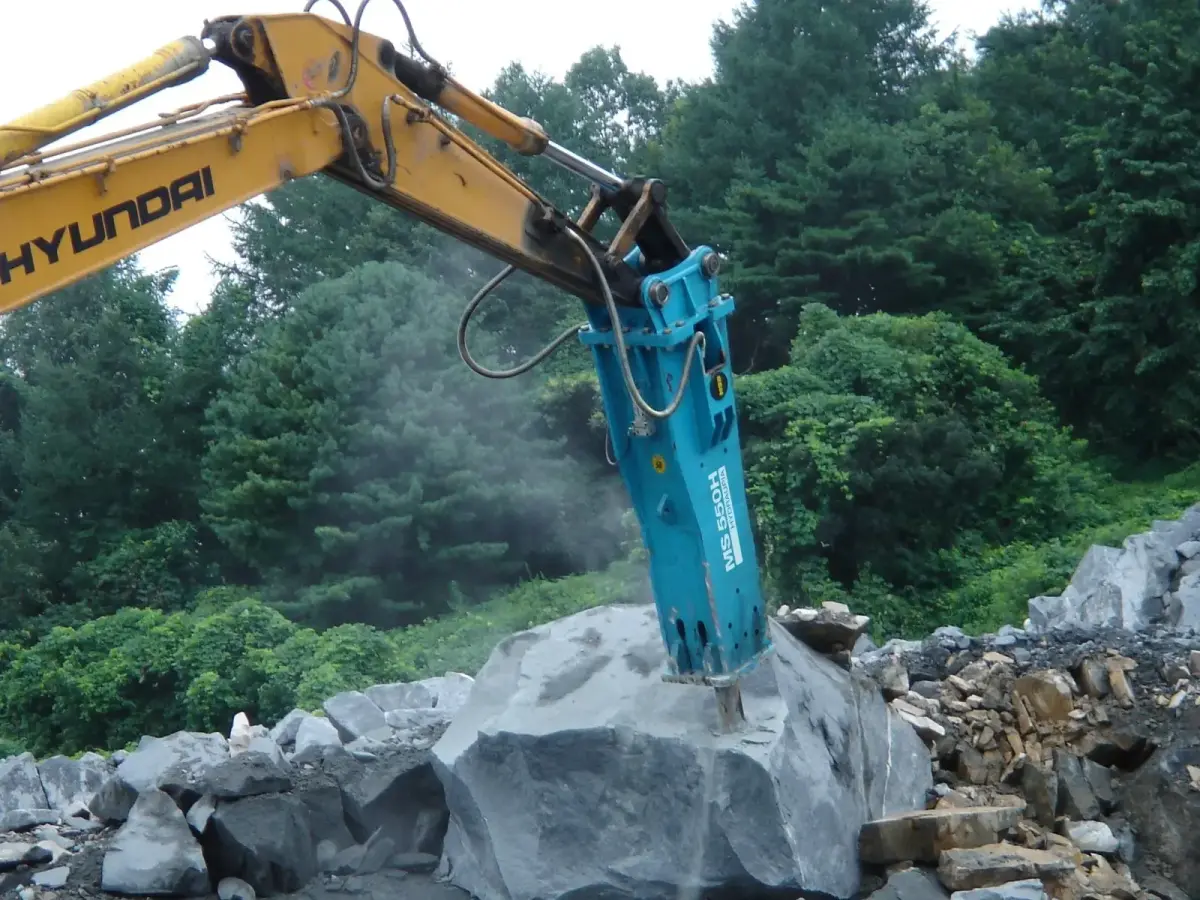

MSB MS 600H Hydraulic Breaker

MSB MS 600H is a durable model with high impact power, produced for excavators between 22 and 28 tons.

Powerful Performance: Effective on hard ground with 1734 kg operating weight and 130 mm tool diameter.
Durable Structure: Wear-resistant plates and reinforced body design.
Silent Operation: Soundproof Housing Application (SHA) is standard.

Prices are visible to partners

Partner Login Request a Quote

Ask on WhatsApp

Documents

MSB Turkish CataloguePDF MSB English CataloguePDF

Product Features and Advantages

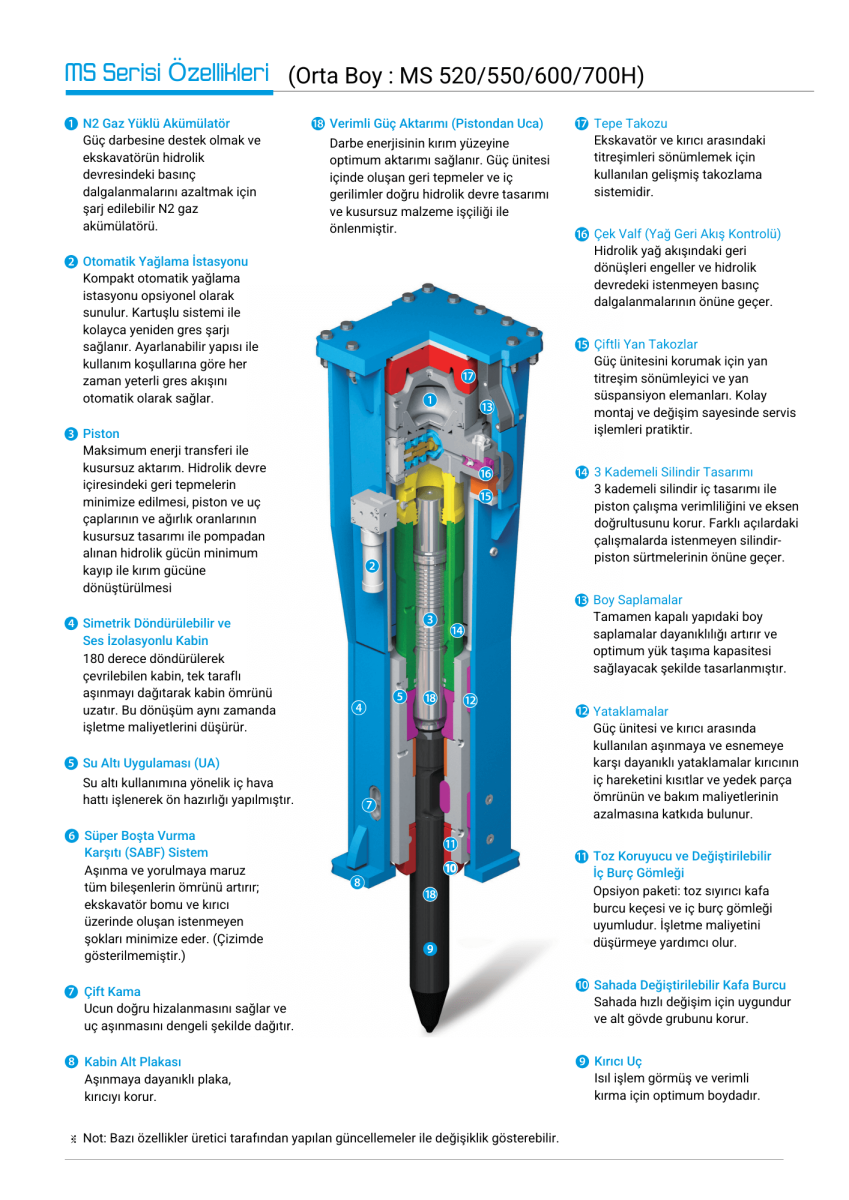

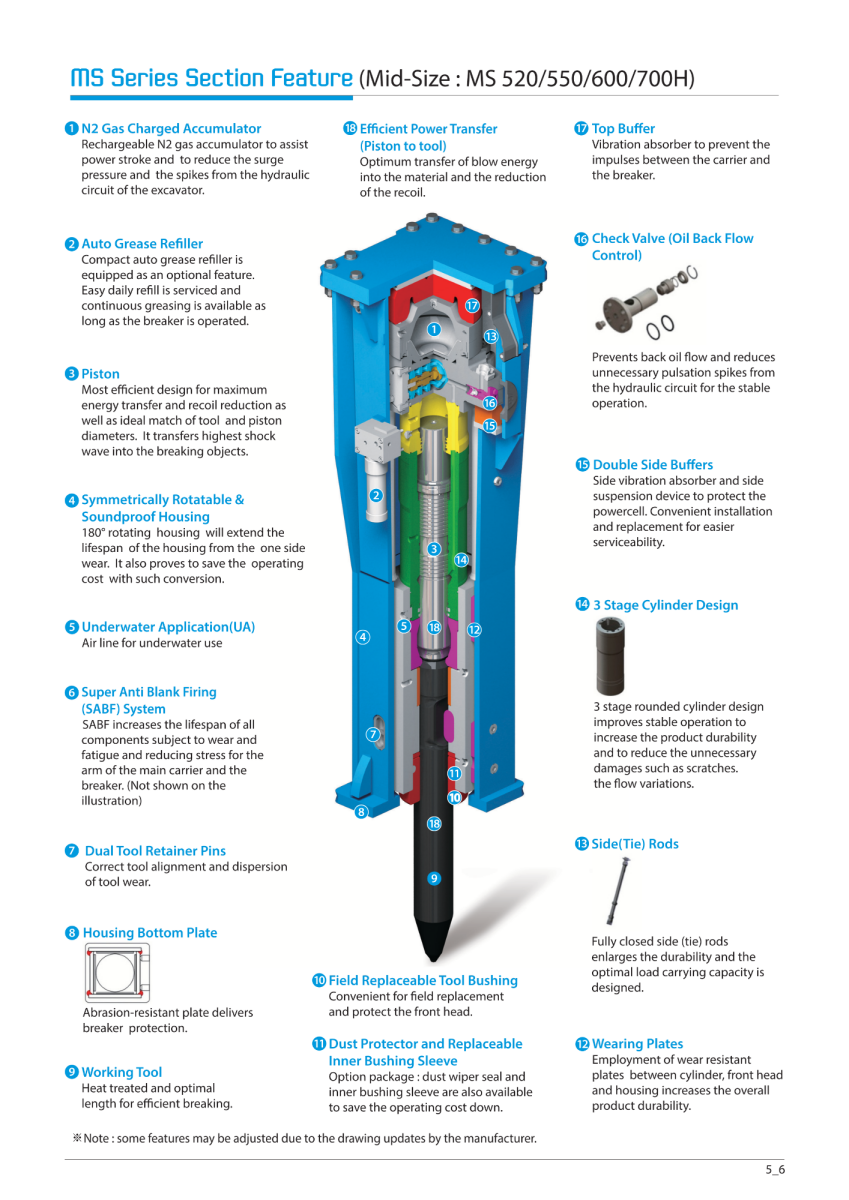

MSB MS 600H positioned in the upper segment of the medium class, is a breaker that delivers high performance in both infrastructure and quarry secondary breaking operations. Its specially developed piston and cylinder design converts hydraulic energy into breaking power with maximum efficiency.

✅ Super Anti Blank Firing (SABF) System: Protects components exposed to wear and fatigue and reduces stress on the excavator boom.
✅ 3-Stage Cylinder Design: The internal cylinder design maintains piston alignment and prevents scoring.
✅ Underwater Application (UA): The air line inlet required for underwater use is pre-machined and ready.

✅ 180° Rotating Housing: The housing can be rotated to prevent one-sided wear and extend service life.
✅ OFC (Flow Control Valve): Protects the breaker against changes in hydraulic flow and stabilizes performance.
✅ Reinforced Mountings: Minimizes vibration between the power cell and the breaker.

Technical Specifications (MS 600H)

Feature	Unit	Values
Operating Weight	kg	1734
Tool Diameter	mm	130
Operating Pressure	bar	120 - 140
Oil Flow	l/min	130 - 150
Impact Rate	bpm	400 - 500
Line Relief Pressure	bar	170 - 190
Accumulator Pressure	bar	40
Hose (Inlet / Return)	mm	25 / 25
Suitable Carrier (Excavator)	ton	22 - 28

HYDRAULIC BREAKER SET CONTENT / INCLUDED IN THE SET

Hydraulic Breaker Machine
Mounting Bracket
Breaker Tools (1 Chisel, 1 Moil Point)

Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

MS 600H Superior Features

Feature	Status
Oil Flow Control (OFC) Valve	✔ Available (Standard)
Super Anti Blank Firing (SABF) System	🟠 Optional
Underwater Application (UA)	✔ Available (Standard)
180° Rotating Housing	✔ Available (Standard)
Soundproof Housing Application (SHA)	✔ Available (Standard)
Manual Autogrease System I (Powercell)	✔ Available (Standard)
Autogrease System II (Side Mounted Refiller)	🟠 Optional
Dust Protector (Wiper Seal)	🟠 Optional
Replaceable Inner Bushing Sleeve (RIBS)	🟠 Optional
Easy Pass Valve (Oil Traffic Control)	✔ Available (Standard)

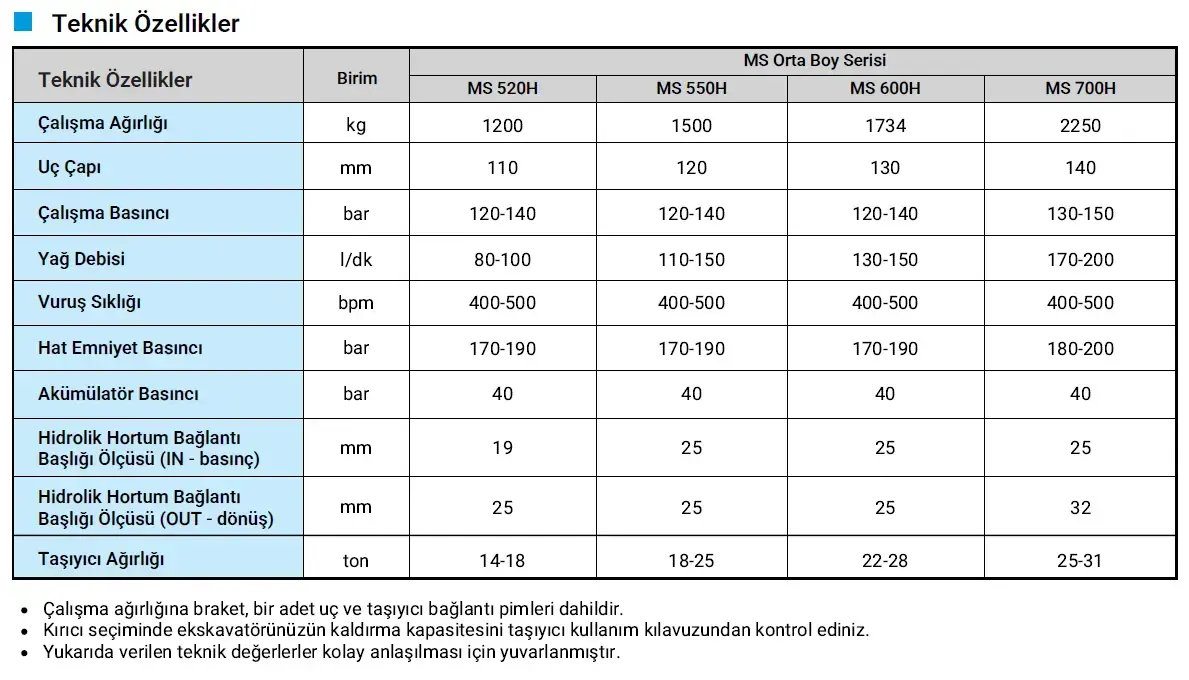

MSB Medium Breakers - Technical Specifications

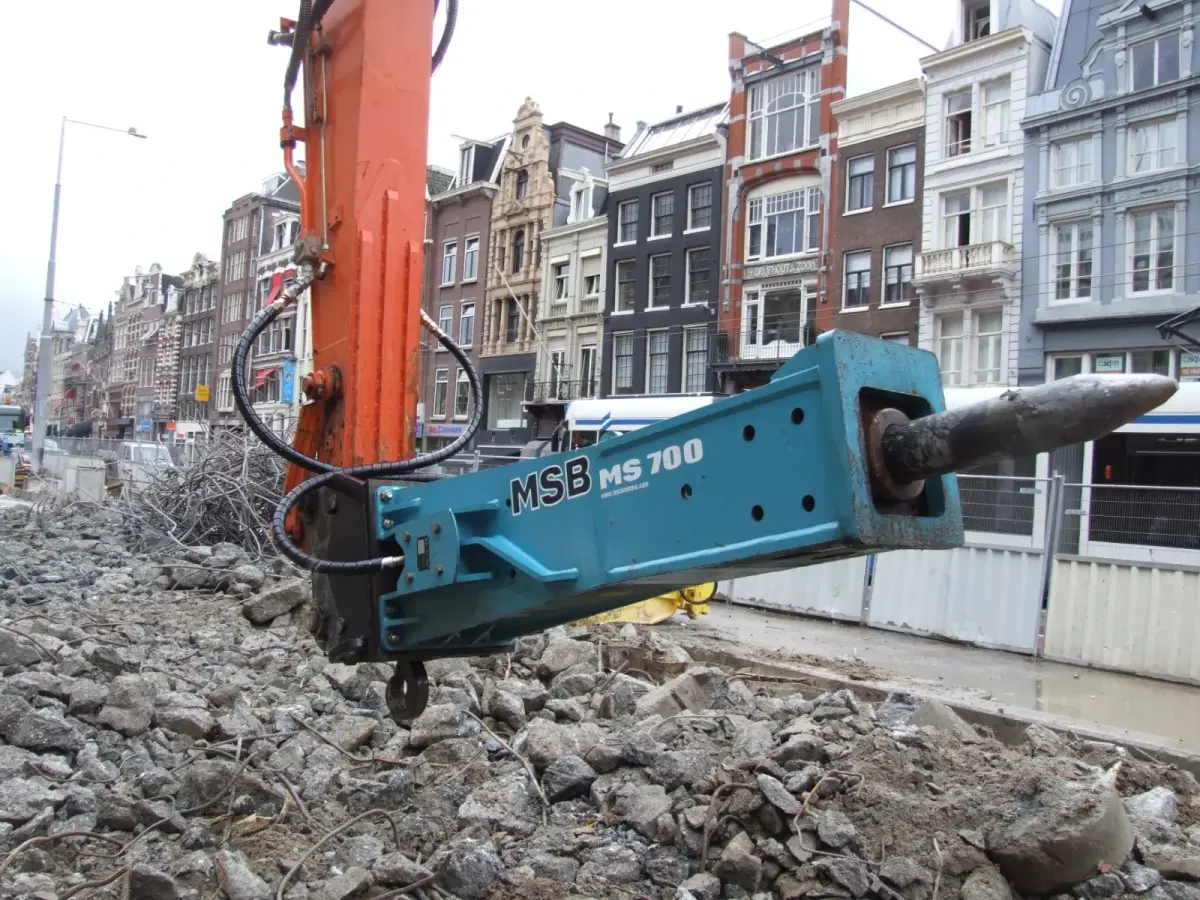

Technical Specifications	Unit	MS 520H	MS 550H	MS 600H	MS 700H
Operating Weight	kg	1200	1500	1734	2250
Tool Diameter	mm	110	120	130	140
Operating Pressure	bar	120-140	120-140	120-140	130-150
Oil Flow	l/min	80-100	110-150	130-150	170-200
Impact Rate	bpm	400-500	400-500	400-500	400-500
Line Relief Pressure	bar	170-190	170-190	170-190	180-200
Accumulator Pressure	bar	40	40	40	40
Hose (Inlet)	mm	19	25	25	25
Hose (Outlet)	mm	25	25	25	32
Carrier Weight	ton	14-18	18-25	22-28	25-31

Product Information

Weight (kg): 1734
Warranty: 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
Delivery Information: Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
