Brand:MSBModel:MS 45ATPart code:2210421101146

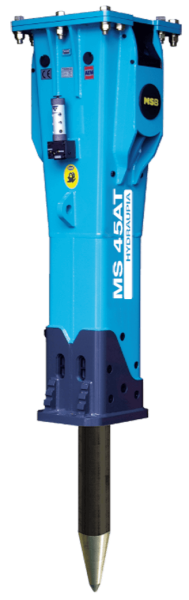

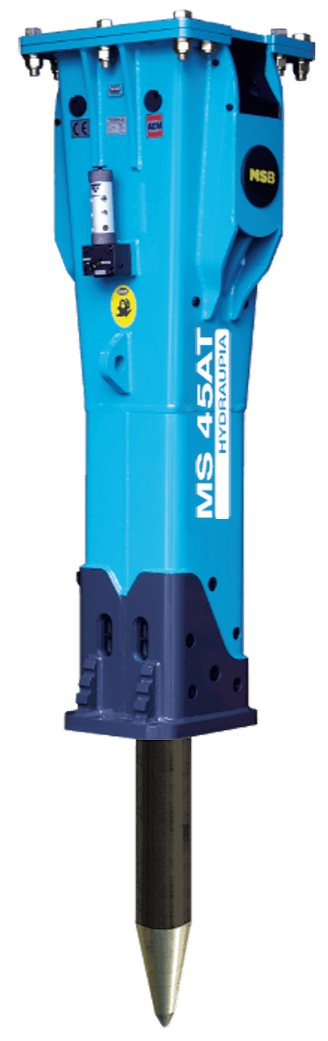

MSB MS 45AT Hydraulic Breaker

MSB MS 45AT is a power machine designed for 40 to 55 ton excavators and built to maintain performance even in the most demanding site conditions.

Heavy-Duty Type: Used as a primary breaker in tunnels, marble quarries and mega infrastructure projects.
Super Anti Blank Firing (SABF) System: Prevents blank firing to protect the excavator boom and the breaker.
Stable Operation: Minimizes vibration thanks to its original cylinder design.

Prices are visible to partners

Partner Login Request a Quote

Ask on WhatsApp

Documents

MSB Turkish CataloguePDF MSB English CataloguePDF

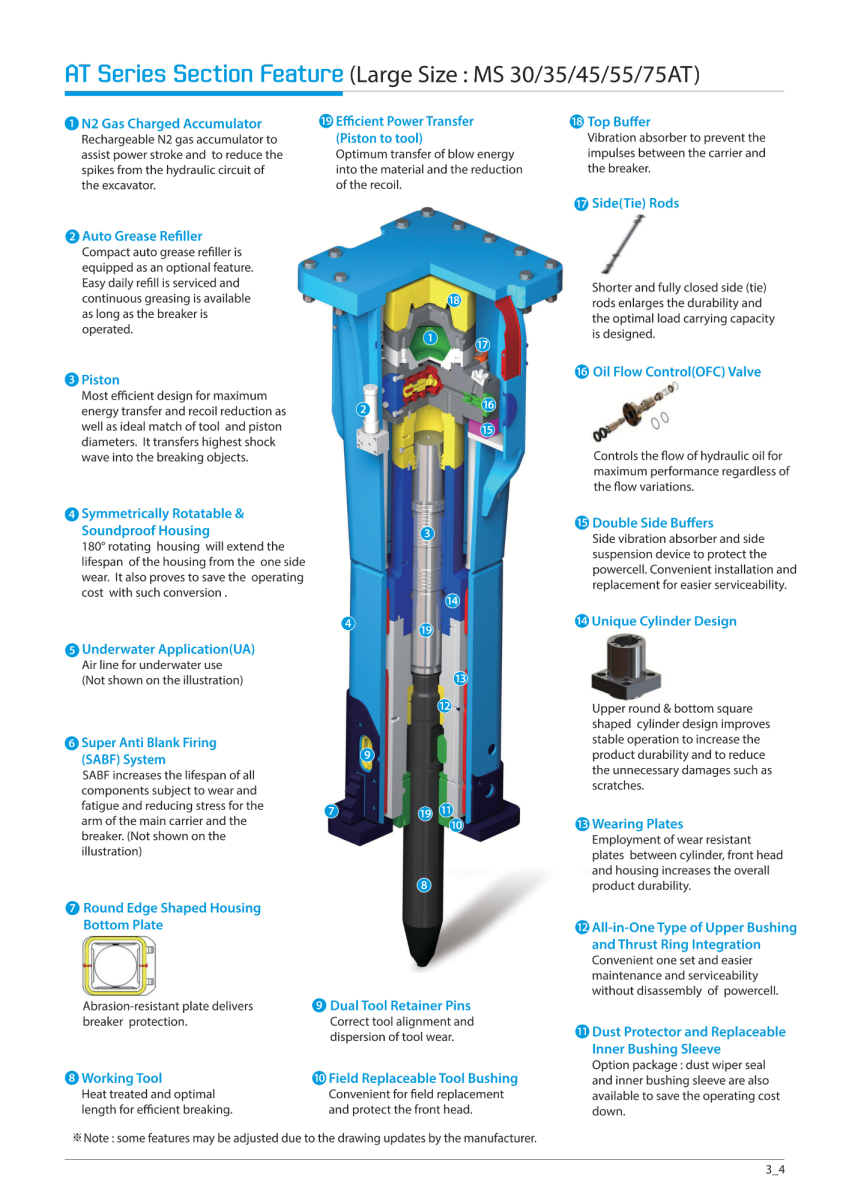

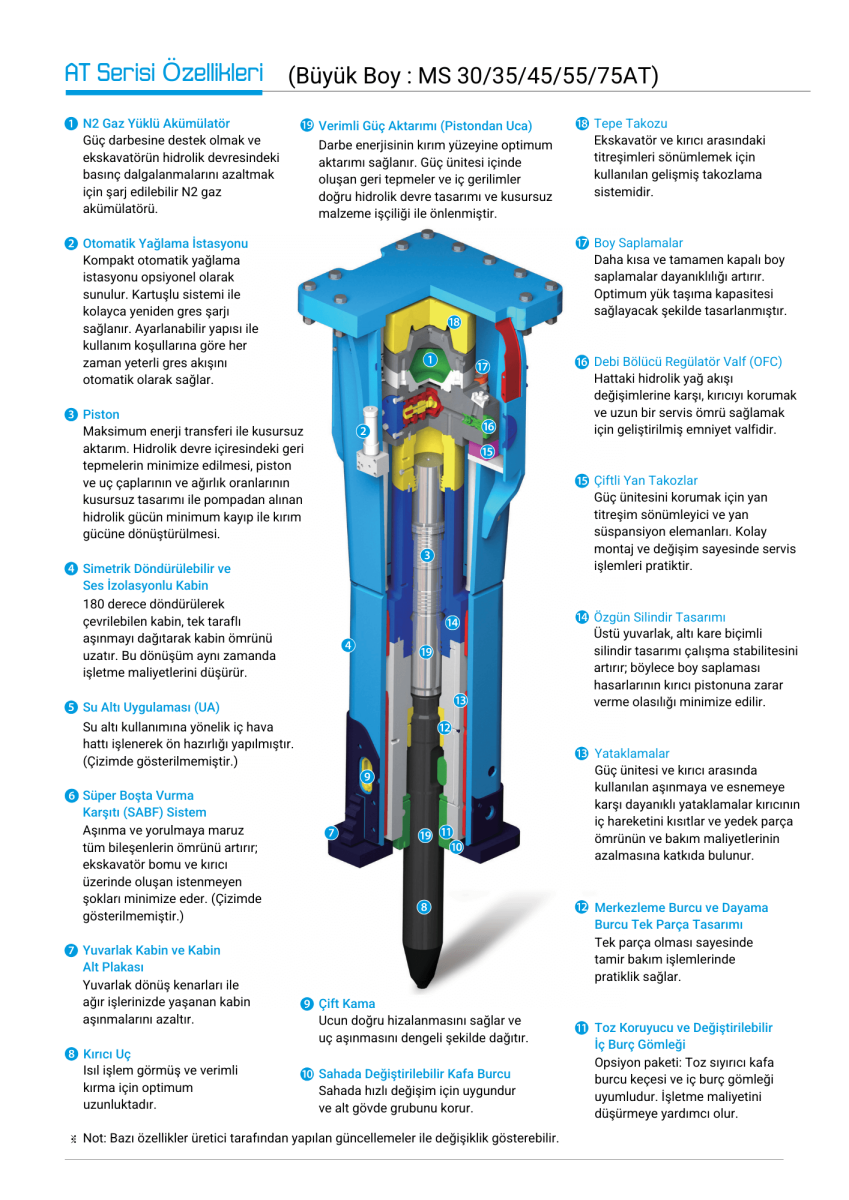

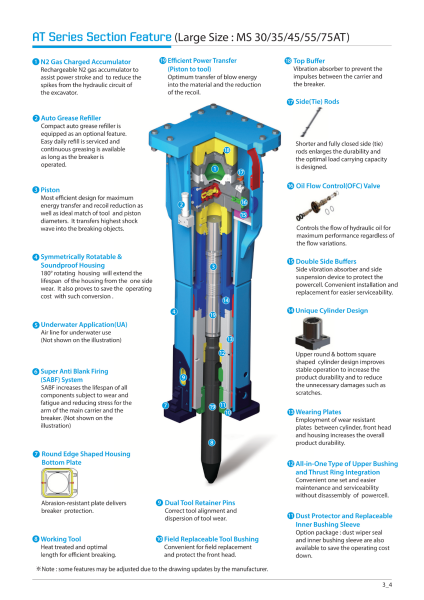

Product Features and Advantages

MSB MS 45AT is indispensable for large-scale mining and construction projects. With a 175 mm tool diameter and 3750 kg weight, it enables non-blasting excavation even in the hardest ground. It increases operational efficiency with low maintenance cost and high impact energy.

✅ OFC (Flow Control Valve): Protects the breaker against changes in hydraulic flow and stabilizes performance.
✅ Super Anti Blank Firing (SABF) System: Stops the impact when the tool loses contact, protecting internal components.
✅ All-in-One Type of Upper Bushing & Thrust Ring: One-piece design providing easy maintenance and extra durability.

✅ Original Cylinder Design: A cylinder with a round upper section and square lower section improves operating stability.
✅ 180° Rotating Housing: The housing can be rotated to prevent one-sided wear.
✅ Underwater Application (UA) & Autogrease System II (Side Mounted Refiller): Includes all required infrastructure (UA) for demanding conditions.

Technical Specifications (MS 45AT)

Feature	Unit	Values
Operating Weight	kg	3750
Tool Diameter	mm	175
Operating Pressure	bar	130 - 150
Oil Flow	l/min	210 - 240
Impact Rate	bpm	300 - 400
Line Relief Pressure	bar	180 - 200
Accumulator Pressure	bar	40
Hose (Inlet / Return)	mm	25 / 32
Suitable Carrier (Excavator)	ton	40 - 55

HYDRAULIC BREAKER SET CONTENT / INCLUDED IN THE SET

Hydraulic Breaker Machine
Mounting Bracket
Breaker Tools (1 Chisel, 1 Moil Point)

Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

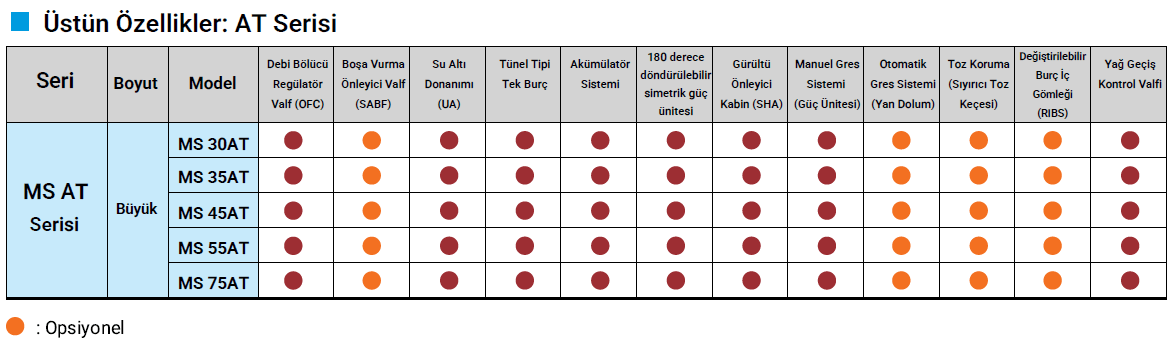

MS 45AT Superior Features

Feature	Status
Oil Flow Control (OFC) Valve	✔ Available (Standard)
Super Anti Blank Firing (SABF) System	🟠 Optional
Underwater Application (UA)	✔ Available (Standard)
All-in-One Type of Upper Bushing & Thrust Ring	✔ Available (Standard)
Accumulator System	✔ Available (Standard)
180° Rotating Housing	✔ Available (Standard)
Soundproof Housing Application (SHA)	✔ Available (Standard)
Manual Autogrease System I (Powercell)	✔ Available (Standard)
Autogrease System II (Side Mounted Refiller)	🟠 Optional
Dust Protector (Wiper Seal)	🟠 Optional
Replaceable Inner Bushing Sleeve (RIBS)	🟠 Optional
Easy Pass Valve (Oil Traffic Control)	✔ Available (Standard)

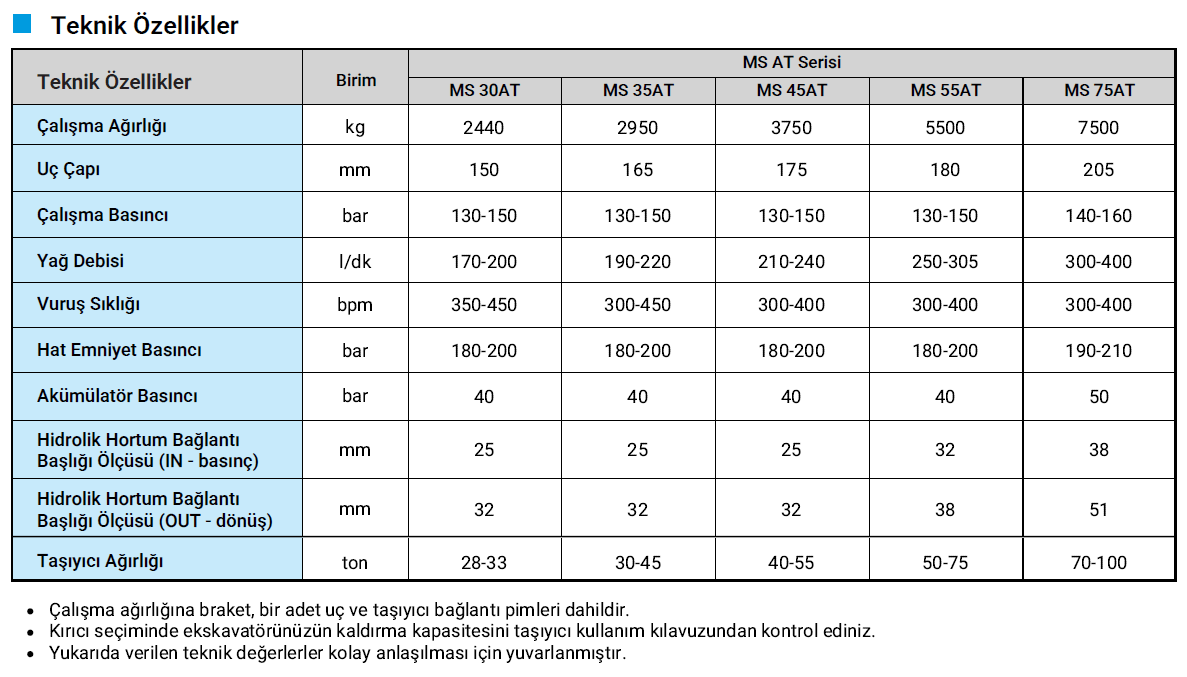

MSB Large Breakers - Technical Specifications

Technical Specifications	Unit	MS 30AT	MS 35AT	MS 45AT	MS 55AT	MS 75AT
Operating Weight	kg	2440	2950	3750	5500	7500
Tool Diameter	mm	150	165	175	180	205
Operating Pressure	bar	130-150	130-150	130-150	130-150	140-160
Oil Flow	l/min	170-200	190-220	210-240	250-305	300-400
Impact Rate	bpm	350-450	300-450	300-400	300-400	300-400
Line Relief Pressure	bar	180-200	180-200	180-200	180-200	190-210
Accumulator Pressure	bar	40	40	40	40	50
Hose (Inlet)	mm	25	25	25	32	38
Hose (Outlet)	mm	32	32	32	38	51
Carrier Weight	ton	28-33	30-45	40-55	50-75	70-100

Product Information

Weight (kg): 3750
Warranty: 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
Delivery Information: Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
