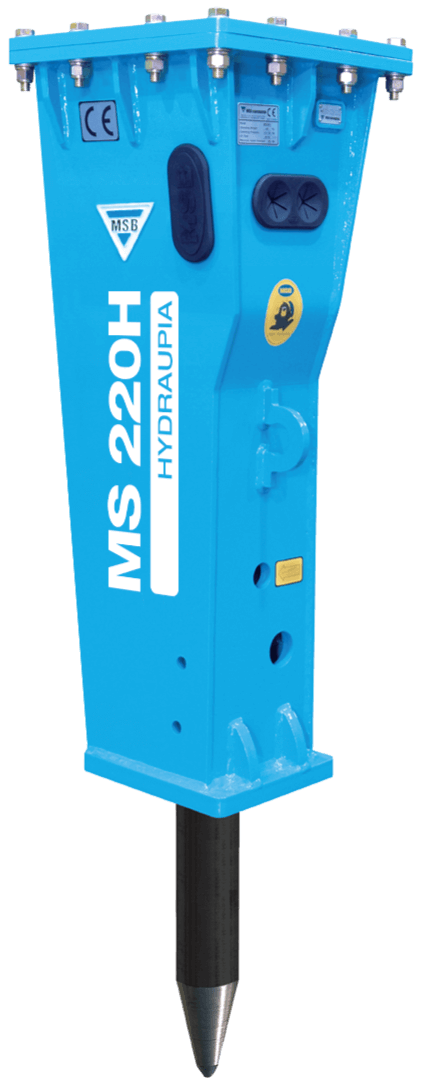

MSB MS 220H Hydraulic Breaker (Box Type)
MSB MS 220H (Silent/Box Type) is a sought-after solution for demanding urban projects with dual Accumulator System technology and a special Soundproof Housing Application (SHA).
- Silent Power: Insulated box body minimizes environmental noise.
- Dual Accumulator: Absorbs high and low pressure fluctuations to bring performance to the top.
- Long Service Life: Box housing protects internal components against dust and impacts.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login

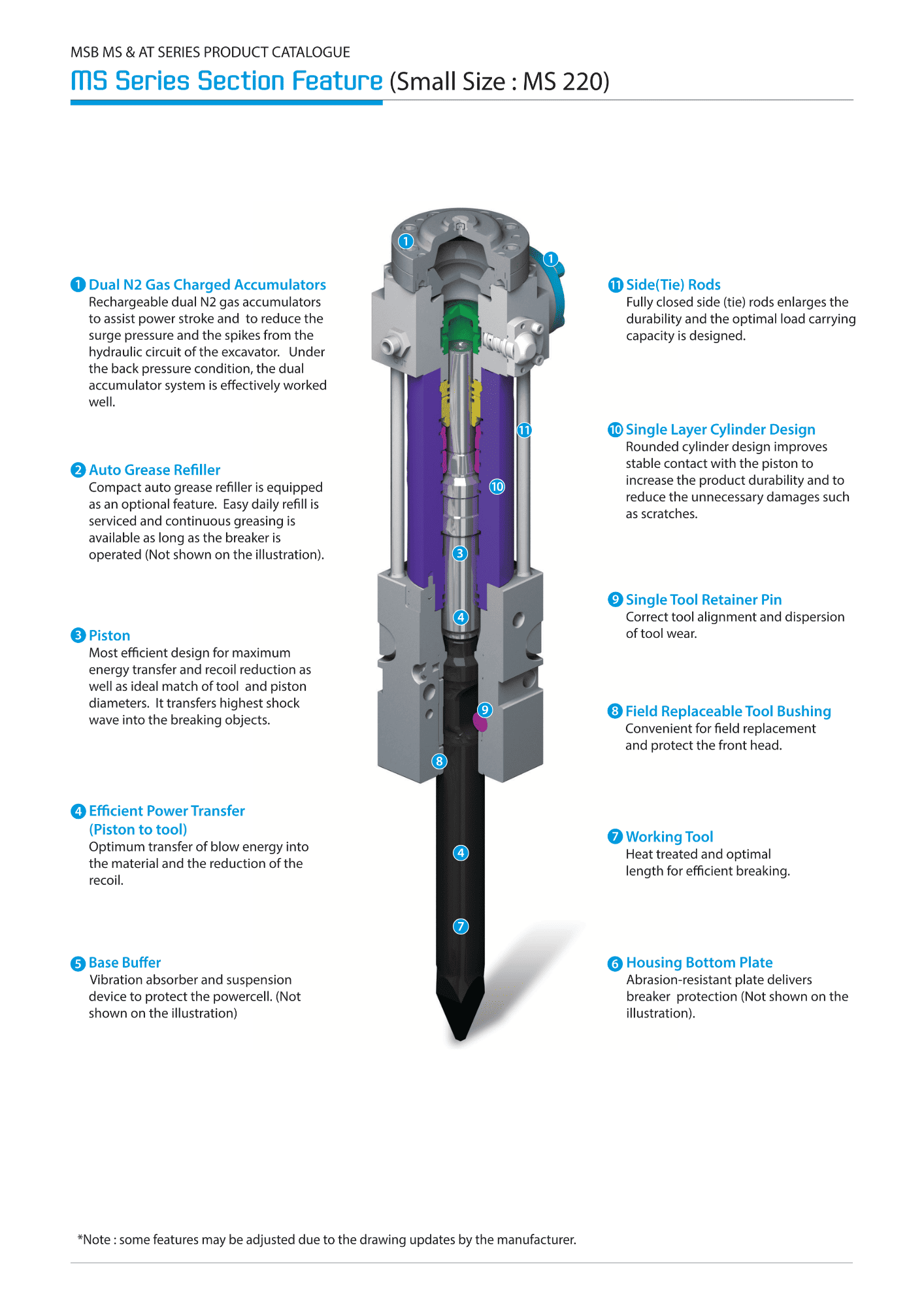

Product Features and Advantages
MS 220H Box Type is designed especially for working in noise-sensitive residential areas. The most distinctive feature of this model is its Dual Accumulator System system. The side-mounted high-pressure accumulator keeps the return line in the hydraulic circuit under control, protecting your machine's hydraulic system and increasing impact power.
- ✅ Silent Design: The fully enclosed body contains noise at the source.
- ✅ Dual Accumulator System: It supports the power stroke and absorbs pressure fluctuations perfectly.
- ✅ All-in-One Type of Upper Bushing & Thrust Ring: One-piece bushing structure that makes maintenance easier and increases durability.
- ✅ Full Protection: Box housing protects the piston and cylinder from external impacts.
- ✅ OFC Valve: Regulates oil flow and keeps performance stable.
- ✅ Replaceable Head Bushing: Offers quick replacement in the field.

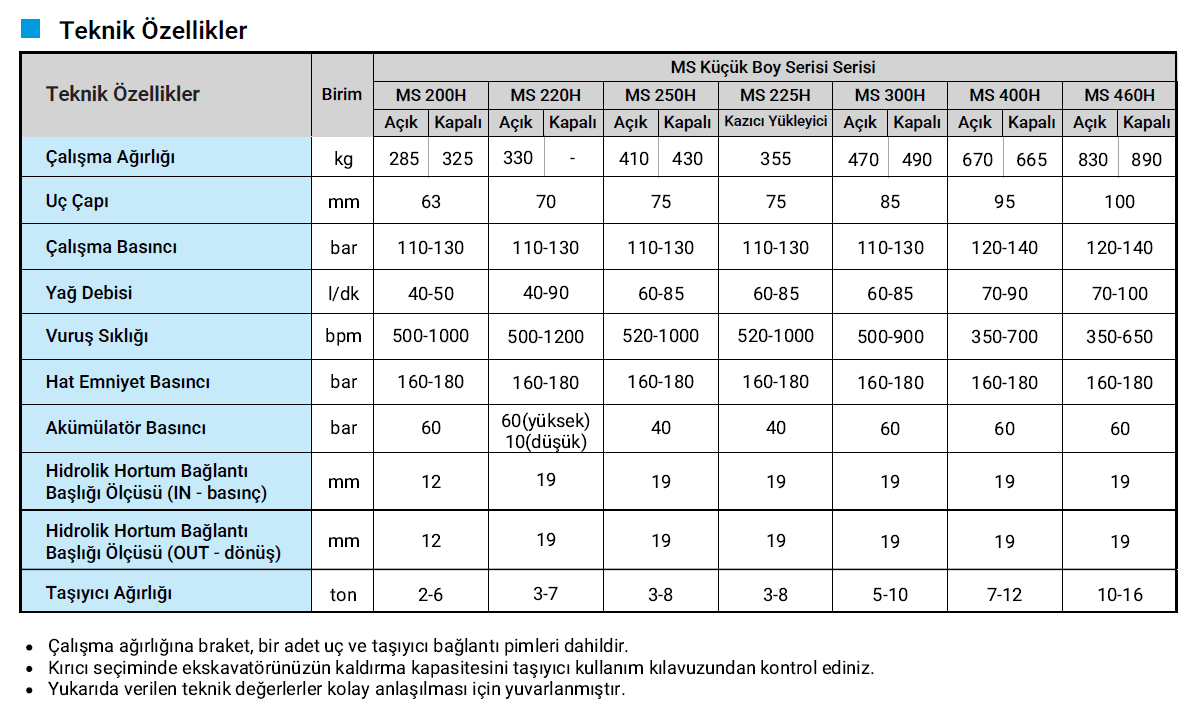

Technical Specifications (MS 220H Box Type)
| Feature | Unit | Values |
|---|---|---|
| Operating Weight | kg | - (Please Contact Us) |
| Tool Diameter | mm | 70 |
| Operating Pressure | bar | 110 - 130 |
| Oil Flow | l/min | 40 - 90 |
| Impact Rate | bpm | 500 - 1200 |
| Line Relief Pressure | bar | 160 - 180 |
| Accumulator Pressure | bar | 60 (High) / 10 (Low) |
| Hose Connection (Inlet/Outlet) | mm | 19 / 19 |
| Suitable Carrier (Excavator) | ton | 3 - 7 |
HYDRAULIC BREAKER SET CONTENT
- Hydraulic Breaker
- Mounting Bracket
- Breaker Tools (1 Chisel, 1 Moil Point)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box

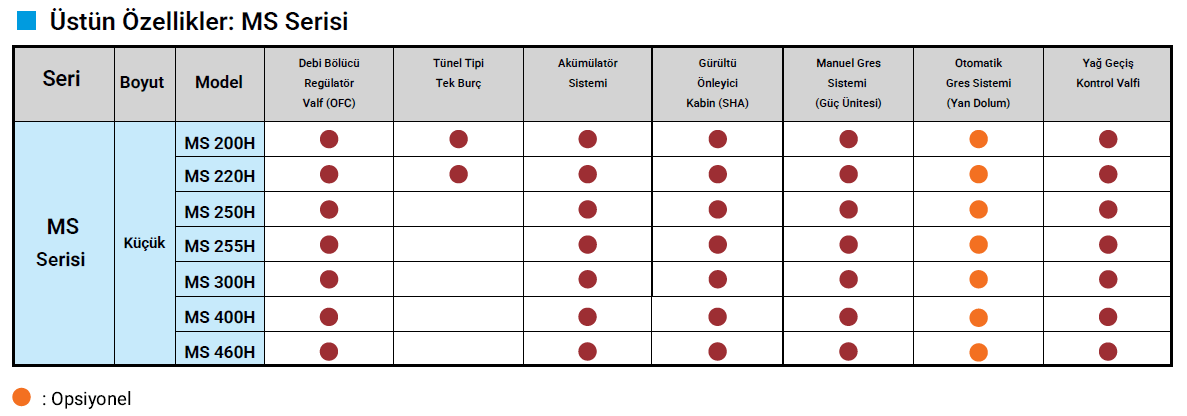

MS 220H Superior Features
| Feature | Status |
|---|---|
| Oil Flow Control (OFC) Valve | ✔ Available (Standard) |
| All-in-One Type of Upper Bushing & Thrust Ring | ✔ Available (Standard) |
| Accumulator System | ✔ Available (Standard) |
| Soundproof Housing Application (SHA) | ✔ Available (Standard) |
| Manual Autogrease System I (Powercell) | ✔ Available (Standard) |
| Autogrease System II (Side Mounted Refiller) | 🟠 Optional |
| Easy Pass Valve (Oil Traffic Control) | ✔ Available (Standard) |
Product Information
- Warranty
- 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
- Delivery Information
- Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
