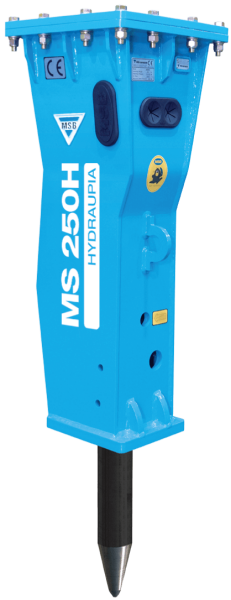

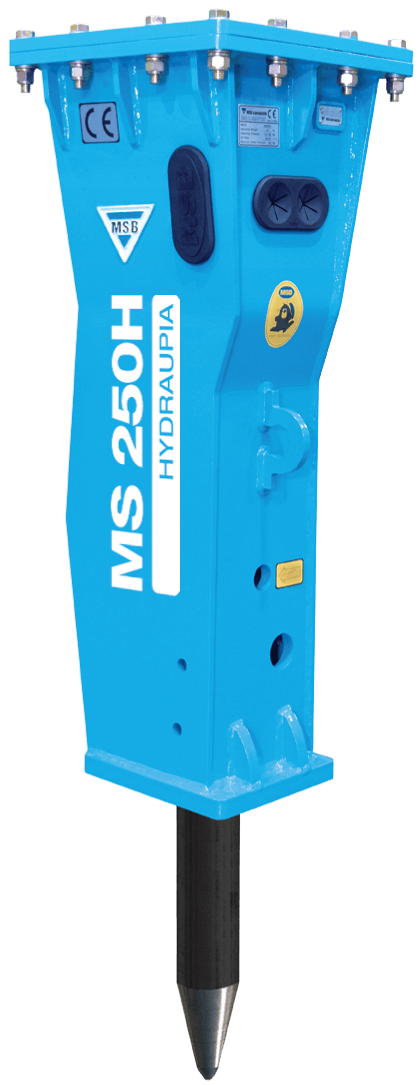

MSB MS 250H Hydraulic Breaker (Box Type)
MSB MS 250H (Box Type) is a strong member of the silent series, designed for 3-8 ton class machines and delivering maximum performance in noise-sensitive urban projects, tunnels and confined spaces.
- Silent Operation: Specially insulated box body design minimizes noise level for environmentally friendly operation.
- Full Protection: Completely isolates the breaker cell from dust, dirt and external impacts to extend product life.
- Low Vibration: Reinforced body structure and dampers absorb vibration transmitted to the machine and operator.
Prices are visible to partners
Sign in to see partner pricing and order online.
Prices are visible to partnersPartner Login

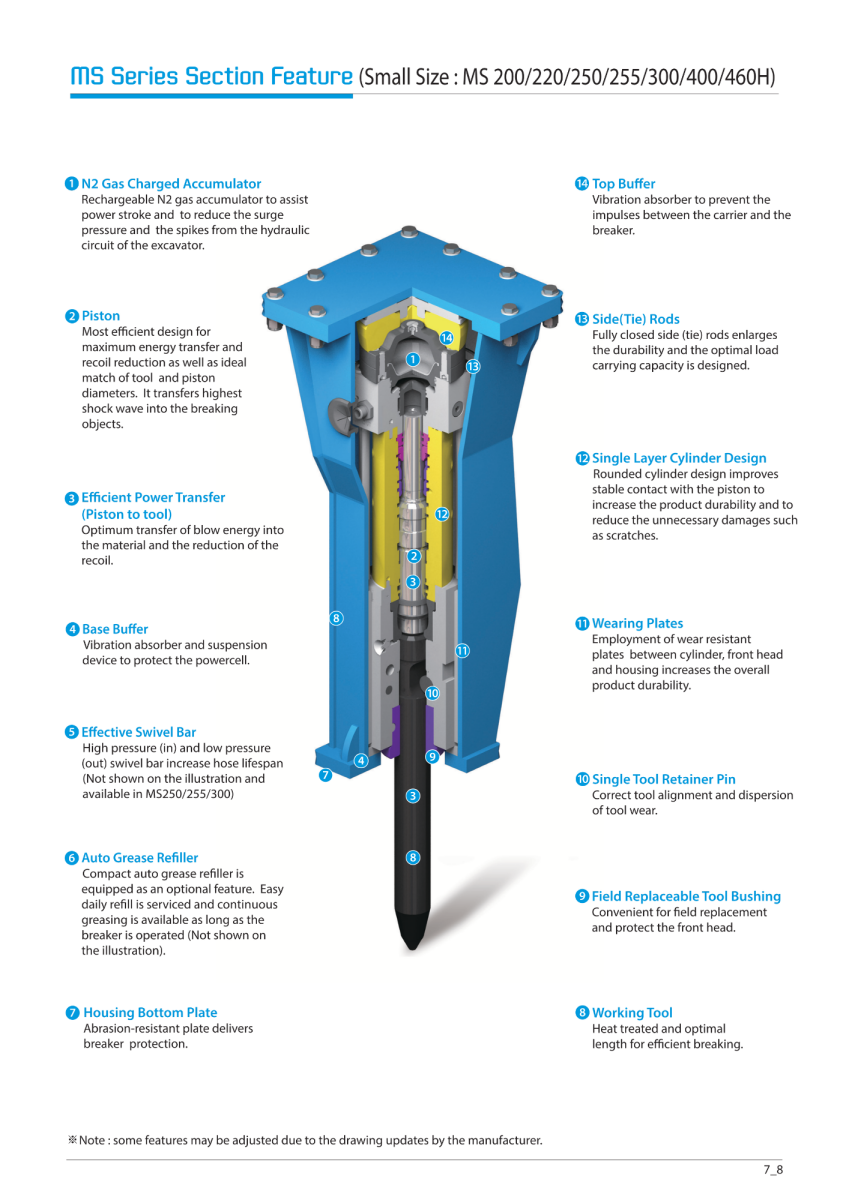

Product Features and Advantages
As the silent member of the MSB Small Series, MS 250H Box Type is preferred especially in areas with noise restrictions such as hospitals, schools and night work zones. It delivers powerful breaking performance with a 430 kg weight for machines in the 3-8 ton class.
- ✅ Silent Technology: Box-type body design equipped with noise-reducing plates.
- ✅ N2 Gas-Charged Accumulator: Supports breaker impact power and absorbs hydraulic fluctuations.
- ✅ Full Protection: Box housing keeps the piston and cylinder group away from dust and impacts.
- ✅ OFC Valve: Automatically balances oil flow to maintain performance.
- ✅ Single-Stage Cylinder: Offers low operating cost with fewer parts.
- ✅ Optimized Tool Alignment: The single wedge system ensures correct tool alignment.

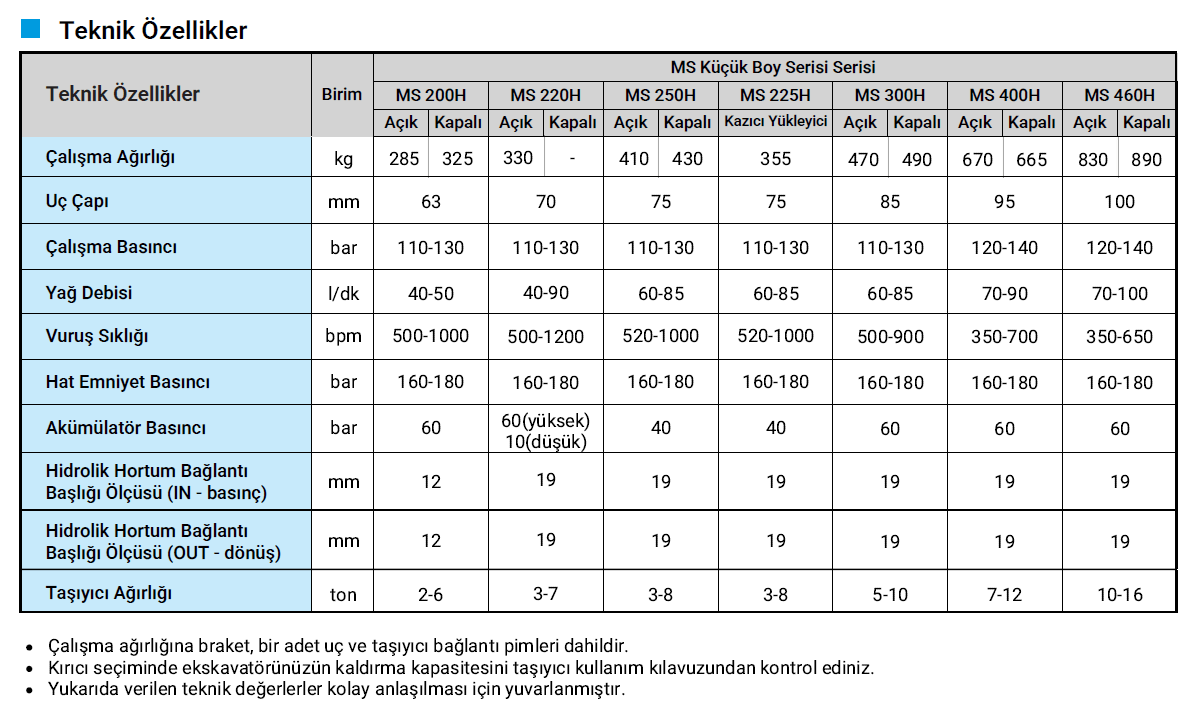

Technical Specifications (MS 250H Box Type)
| Feature | Unit | Values |
|---|---|---|
| Operating Weight (Box Type) | kg | 430 |
| Tool Diameter | mm | 75 |
| Operating Pressure | bar | 110 - 130 |
| Oil Flow | l/min | 60 - 85 |
| Impact Rate | bpm | 520 - 1000 |
| Line Relief Pressure | bar | 160 - 180 |
| Accumulator Pressure | bar | 40 |
| Hose Connection (Inlet/Outlet) | mm | 19 / 19 |
| Suitable Carrier (Excavator) | ton | 3 - 8 |
HYDRAULIC BREAKER SET CONTENT
- Hydraulic Breaker
- Mounting Bracket
- Breaker Tools (1 Chisel, 1 Moil Point)
- Hydraulic Connection Hoses
- Carrier Connection Pins
- Tool Box

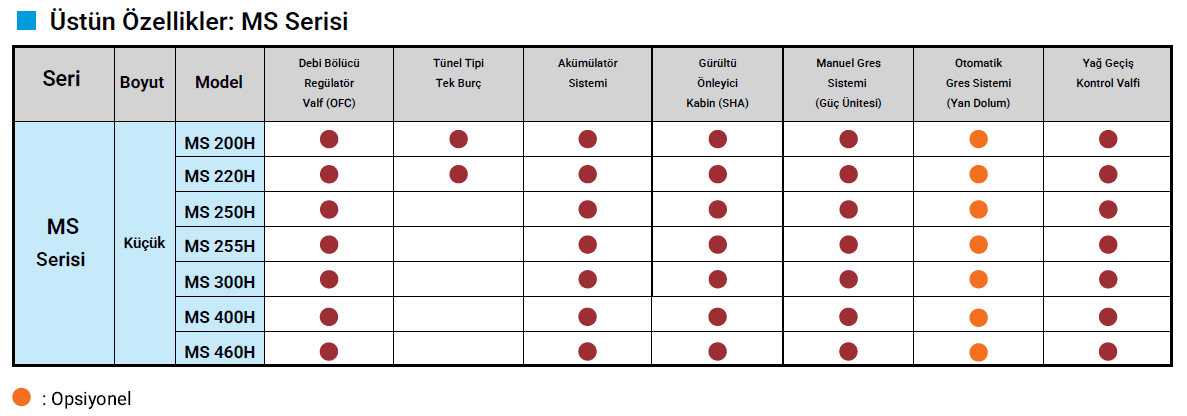

MS 250H Superior Features
| Feature | Status |
|---|---|
| Oil Flow Control (OFC) Valve | ✔ Available (Standard) |
| Accumulator System | ✔ Available (Standard) |
| Soundproof Housing Application (SHA) | ✔ Available (Standard) |
| Manual Autogrease System I (Powercell) | ✔ Available (Standard) |
| Autogrease System II (Side Mounted Refiller) | 🟠 Optional |
| Easy Pass Valve (Oil Traffic Control) | ✔ Available (Standard) |
Product Information
- Weight (kg)
- 430
- Warranty
- 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
- Delivery Information
- Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
