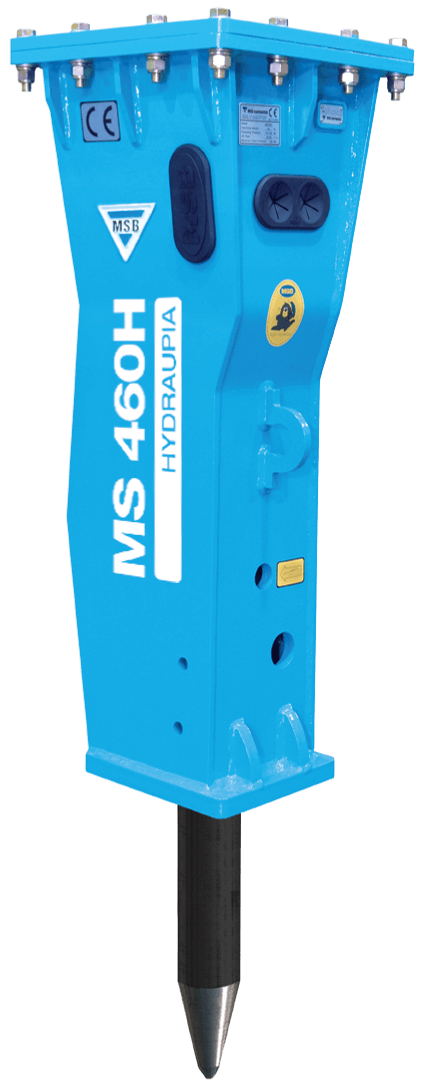

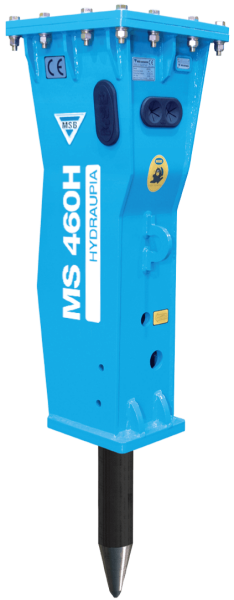

MSB MS 460H Hydraulic Breaker (Box Type)

Brand:MSBModel:MS 460HPart code:2210461101146

MSB MS 460H Hydraulic Breaker (Box Type)

MSB MS 460H (Silent Type) is designed for noise-sensitive jobs in the 10-16 ton class. With 890 kg weight, it provides both stability and power.

Maximum Power: Offers the highest impact power of the small series.
Durable: Reinforced for demanding jobsite conditions.
Economical: Provides low operating cost.

Prices are visible to partners

Partner Login Request a Quote

Ask on WhatsApp

Documents

MSB Turkish CataloguePDF MSB English CataloguePDF

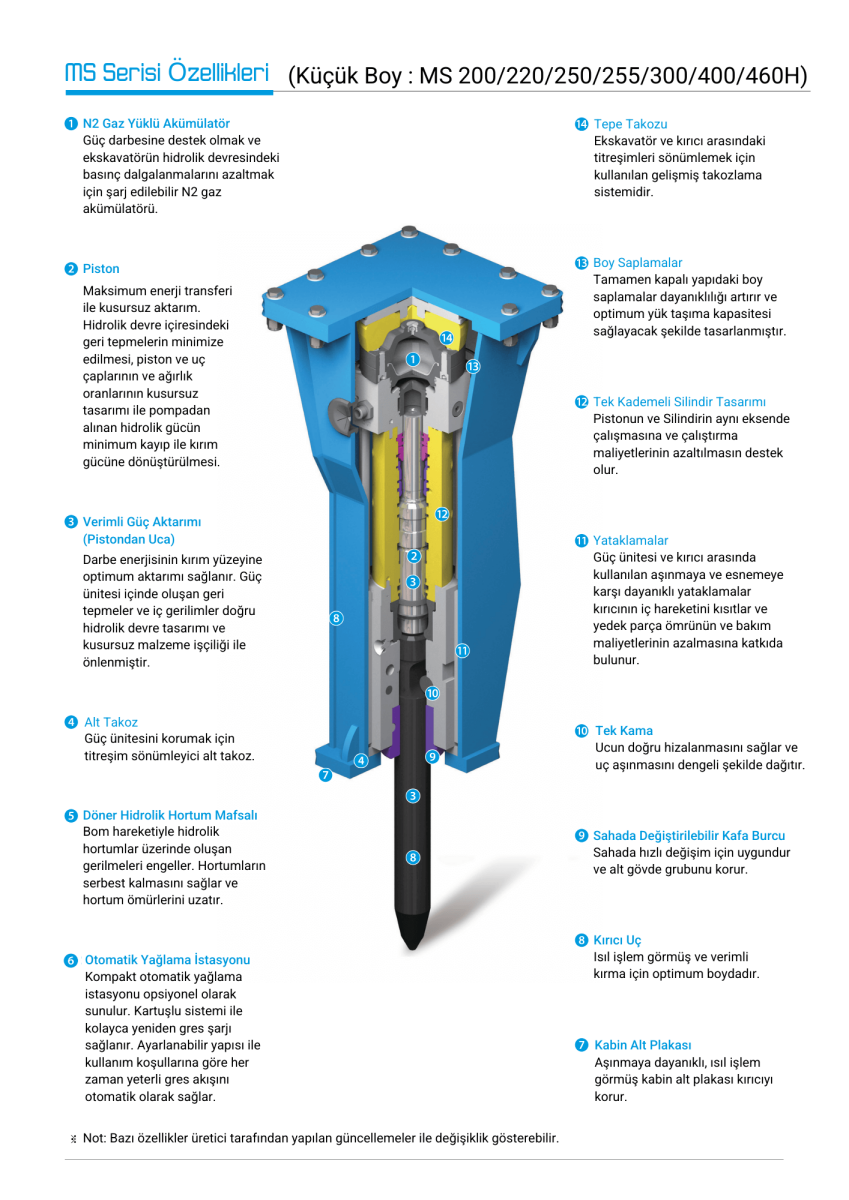

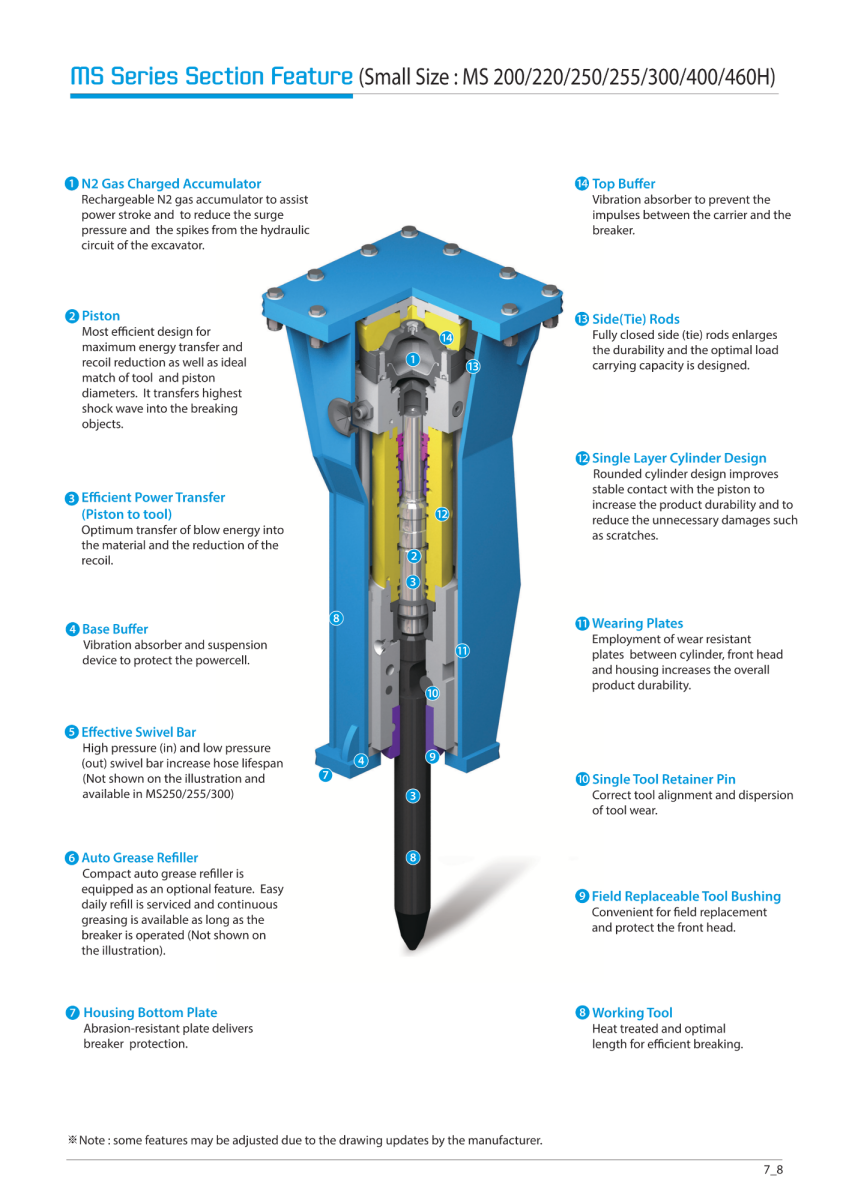

Product Features and Advantages

MS 460H Box Type is one of the most popular small breakers before moving into the medium class. Compatible with both crawler excavators and large backhoe loaders in the 10-16 ton class. The specially sound-insulated box body reduces noise in urban work and protects internal components.

✅ Silent Operation: Soundproof housing (SHA) technology is standard.
✅ Accumulator System: Absorbs pressure fluctuations and increases impact power.
✅ OFC Valve: Automatically balances oil flow to maintain performance.

✅ Full Protection: Box housing protects the power cell from external impacts.
✅ Replaceable Bushings: Easy replacement in the field.
✅ Single-Stage Cylinder: Simple design with low maintenance cost.

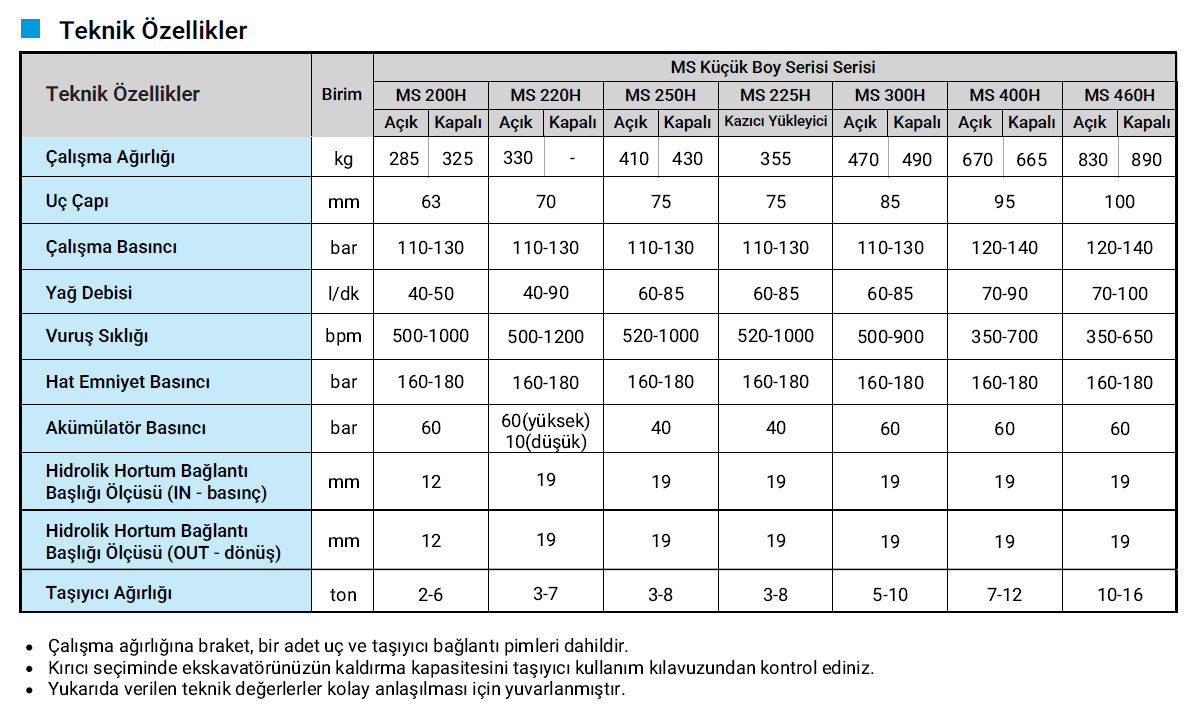

Technical Specifications (MS 460H Box Type)

Feature	Unit	Values
Operating Weight (Box Type)	kg	890
Tool Diameter	mm	100
Operating Pressure	bar	120 - 140
Oil Flow	l/min	70 - 100
Impact Rate	bpm	350 - 650
Line Relief Pressure	bar	160 - 180
Accumulator Pressure	bar	60
Hose Connection (Inlet/Outlet)	mm	19 / 19
Suitable Carrier	ton	10 - 16

HYDRAULIC BREAKER SET CONTENT

Hydraulic Breaker
Mounting Bracket
Breaker Tools (1 Chisel, 1 Moil Point)

Hydraulic Connection Hoses
Carrier Connection Pins
Tool Box

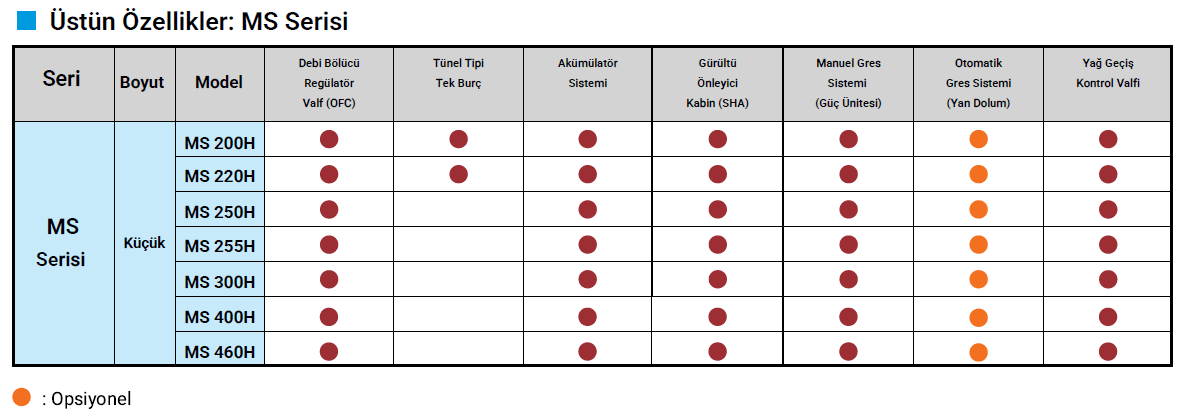

MS 460H Superior Features

Feature	Status
Oil Flow Control (OFC) Valve	✔ Available (Standard)
Accumulator System	✔ Available (Standard)
Soundproof Housing Application (SHA)	✔ Available (Standard)
Manual Autogrease System I (Powercell)	✔ Available (Standard)
Autogrease System II (Side Mounted Refiller)	🟠 Optional
Easy Pass Valve (Oil Traffic Control)	✔ Available (Standard)

Product Information

Weight (kg): 890
Warranty: 🛡️ 1-Year Warranty Assurance This product is covered by a 1-year warranty against material and assembly defects. Note: Consumables and wear parts that require regular replacement during operational use are not included in the warranty coverage. For any questions and detailed information about the warranty procedure, you can contact our expert team at info@hkm.com.tr.
Delivery Information: Delivery time is 7 business days. You can contact info@hkm.com.tr for detailed information.
